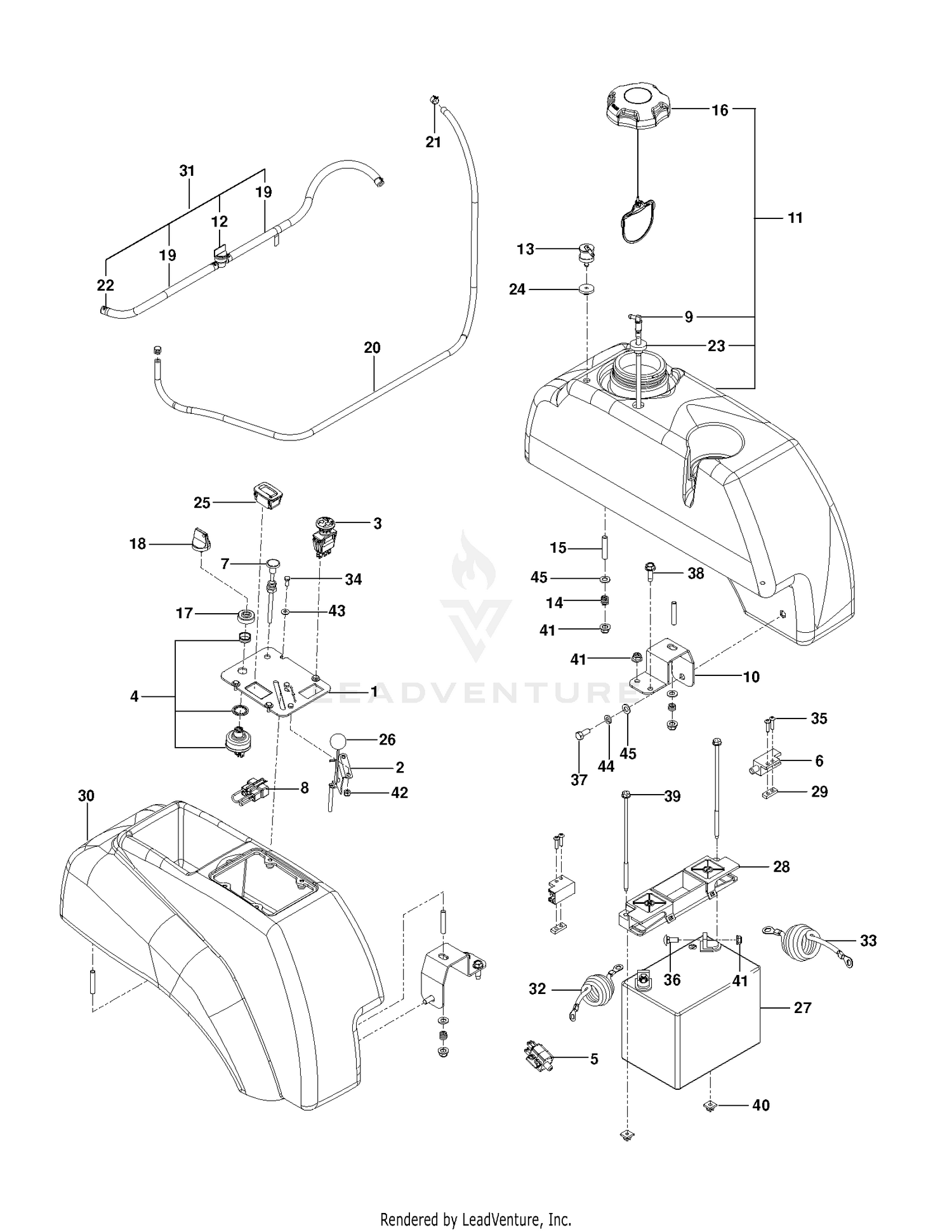

| Ref | Part Number | Description |
|---|
| 1 |
592877402 |
PLATE.PNT.CONSOLE.MZ.EDIP This part replaces 574841204. Price: $4.99 |
| 1 |
82-2850 |
PLATE Price: $21.91 |
| 2 |
597873201 |
THROTTLE CABLE W/KNOB This part replaces 539112438. Price: $37.99 |
| 2 |
82-9680 |
RIVET Price: $0.98 |
| 3 |
597520401 |
Service Kit This part replaces 539131627. Price: $54.99 |
| 3 |
82-9700 |
SCREW Price: $1.58 |
| 4 |
574455401 |
SWITCH, IGNITION, INDAK Price: $29.99 |
| 4 |
82-2730 |
WEAR PARTS KIT Price: $67.73 |
| 5 |
539113792 |
SWITCH, BRAKE 3P Price: $14.99 |
| 5 |
82-2740 |
TENSION SPRING SET Price: $72.36 |
| 6 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 6 |
56-4150 |
LEVER This part replaces 56-4140. Price: $71.57 |
| 7 |
539112439 |
CHOKE CABLE Price: $29.99 |
| 7 |
82-2870 |
LEVER-ADJUST Price: $43.38 |
| 8 |
575321001 |
PLUG, TIMER Price: $12.99 |
| 9 |
576469201 |
FITTING, FUEL Price: $22.99 |
| 10 |
539131671 |
SUPPORT, TANK, BLK Price: $59.99 |
| 11 |
598664901 |
Tanks This part replaces 578368102. Price: $349.99 |
| 12 |
539916325 |
FUEL VALVE Price: $9.99 |
| 12 |
82-2800 |
CUSHION-REST, BACK Price: $418.29 |
| 13 |
56-3850 |
SCREW Price: $3.37 |
| 13 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 14 |
539102845 |
SPRING Price: $2.99 |
| 14 |
55-4330 |
LH ARMREST ASM Price: $146.35 |
| 15 |
539102502 |
STUD, 5/16C Price: $8.99 |
| 15 |
82-2840 |
CUSHION-BOTTOM Price: $555.71 |
| 16 |
575018103 |
CAP 3.5IN SEALED This part replaces 575018101. Price: $27.99 |
| 16 |
82-2790 |
RAIL-ADJUST, LH Price: $212.20 |
| 17 |
539103178 |
CAP IGNITION NUT Price: $3.99 |
| 17 |
82-9690 |
SCREW Price: $2.67 |
| 18 |
56-4030 |
DISCONTINUED This part replaces 82-9660. Price: Call Us |
| 18 |
574455501 |
KEY, IGNITION Price: $5.99 |
| 19 |
539932956 |
GAS LINE 10" Price: $6.99 |
| 19 |
82-9650 |
NUT Price: $8.89 |
| 20 |
576660609 |
HOSE.3/16"VAPOR.27" Price: $8.99 |
| 20 |
82-2820 |
SWING ARM ASM Price: $422.94 |
| 21 |
575436501 |
CLAMP, HOSE Price: $2.99 |
| 21 |
82-2780 |
DISCONTINUED Price: Call Us |
| 22 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 22 |
82-9710 |
TRIM-BOTTOM Price: $54.09 |
| 23 |
539105245 |
RUBBER GROMMET Price: $3.99 |
| 23 |
82-2720 |
FRAME-SEAT Price: $1,045.27 |
| 24 |
584648201 |
GROMMET.CHECK.FUEL This part replaces 576618201. Price: $3.99 |
| 24 |
82-9640 |
SCREW Price: $0.98 |
| 25 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 25 |
82-2810 |
SWITCH ASM Price: $336.01 |
| 26 |
539133049 |
KNOB.ROUND.BALL.BLACK Price: $5.99 |
| 26 |
82-9620 |
DISCONTINUED Price: Call Us |
| 27 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 27 |
82-9630 |
NUT Price: $1.24 |
| 28 |
539107628 |
BATTERY HOLD DOWN Price: $4.99 |
| 29 |
539102678 |
TAPPED PLATE Price: $12.99 |
| 29 |
56-4170 |
PIN Price: $24.96 |
| 30 |
539107593 |
FENDER CONSOLE Price: $129.99 |
| 30 |
56-3890 |
NUT Price: $4.04 |
| 31 |
56-3880 |
WASHER Price: $1.33 |
| 31 |
576547801 |
FUEL LINE ASM Price: $39.99 |
| 32 |
539104974 |
POST.CABLE LONG Price: $27.99 |
| 32 |
82-9720 |
TRIM-REST, BACK Price: $39.95 |
| 33 |
539107645 |
NEG. CABLE, 28" Price: $34.99 |
| 33 |
82-2860 |
SPRING-SET, TENSION Price: $19.71 |
| 34 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 34 |
82-2750 |
DISCONTINUED Price: Call Us |
| 35 |
574822701 |
SCR #10-24 X .75 SKT HD BLK Price: $2.99 |
| 35 |
82-2710 |
SCREW Price: $8.39 |
| 36 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 37 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 37 |
82-2830 |
CLAMP Price: $13.33 |
| 38 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 539113226. Price: $2.99 |
| 38 |
82-2770 |
SHOCK ABSORBER ASM Price: $221.09 |
| 39 |
539107632 |
BOLT - 1/4-20 X 7.5 Price: $0.99 |
| 39 |
82-9670 |
NUT Price: $0.93 |
| 40 |
539107629 |
PUSH NUT-NYLON Price: $2.99 |
| 40 |
56-3940 |
WASHER Price: $1.33 |
| 41 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 41 |
82-2760 |
BUSHING KIT Price: $9.67 |
| 42 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 43 |
539105408 |
WASHER #10 Price: $2.99 |
| 44 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 45 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
