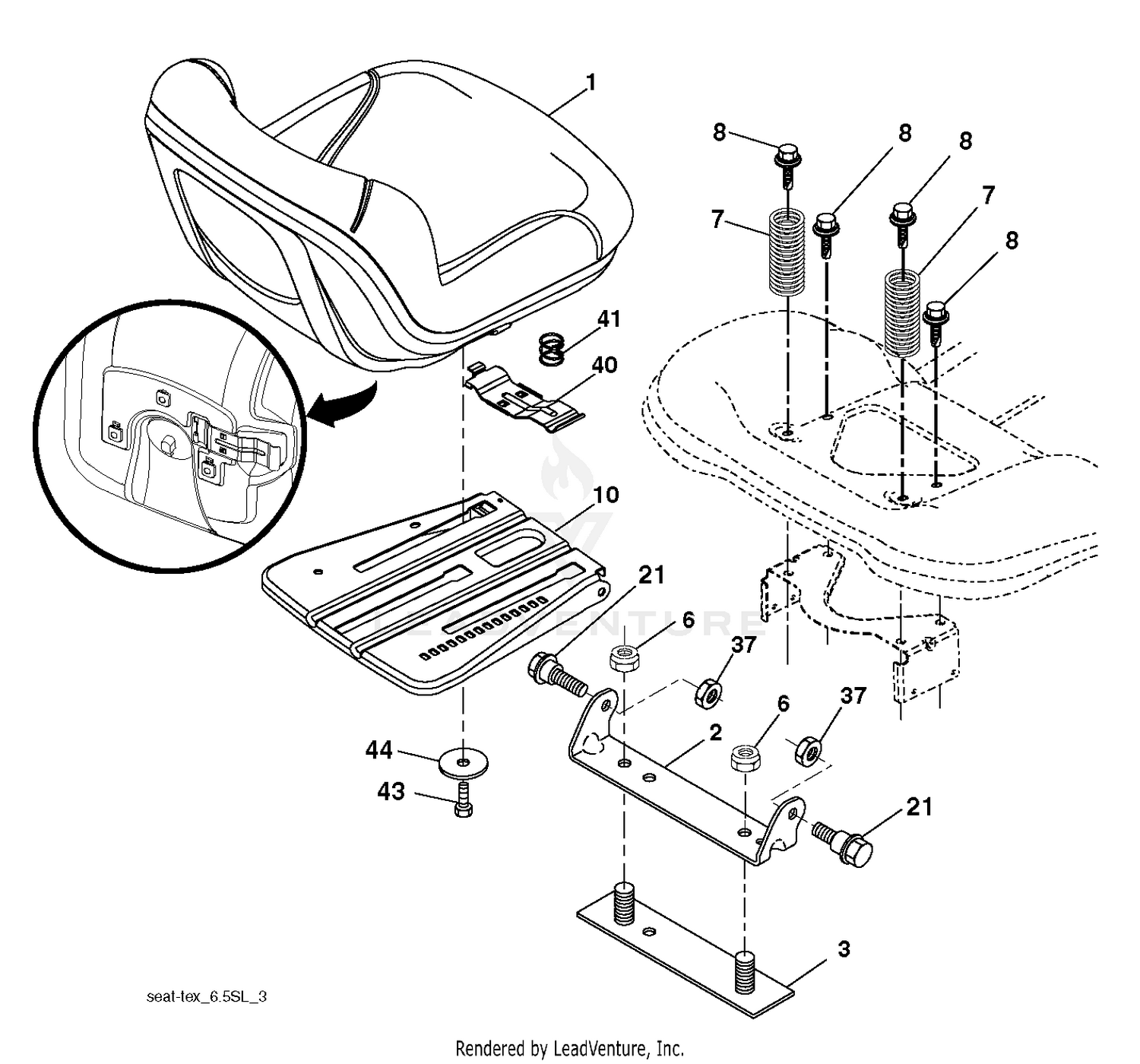

| Ref | Part Number | Description |
|---|
| 1 |
532439822 |
SEAT.TH150.MS498.GRY.HUSQ.TEX This part replaces 532424068. Price: $159.99 |
| 1 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 2 |
100-7631 |
PULLEY-IDLER Price: $146.29 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 3 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 4 |
108-1438 |
WASHER-HARDENED Price: $1.76 |
| 5 |
99-7667 |
WASHER-FLAT Price: $4.80 |
| 6 |
105-4886 |
NUT-TINNERMAN This part replaces 112-4576. Price: $2.37 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
112-4874 |
SCREW-HH, TAP Price: $8.70 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
117-8461-03 |
ARM-TRAILING Price: $265.67 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
117-8465-03 |
LINK-LIFT Price: $29.79 |
| 10 |
119-6301-03 |
ARM-GAUGE, WHEEL Price: $153.51 |
| 10 |
596768801 |
KIT.PLATE.SEAT This part replaces 532196977. Price: $49.99 |
| 11 |
117-8469-03 |
BRACKET-PULLEY Price: $20.10 |
| 12 |
117-8484 |
TAB-LOCKING Price: $36.51 |
| 13 |
117-8544 |
WHEEL-CASTER Price: $120.71 |
| 14 |
119-2985 |
BUSHING Price: $7.60 |
| 15 |
119-2992-03 |
BRACKET-ADJUST,TENSION Price: $42.10 |
| 16 |
119-6184 |
BLOCK-PIVOT Price: $36.42 |
| 17 |
121-2772-03 |
SUPPORT-COVER, BELT Price: $43.49 |
| 18 |
119-6189 |
TUBE-PIVOT Price: $5.65 |
| 19 |
119-6191 |
TUBE-PIVOT Price: $4.68 |
| 20 |
119-6192 |
TUBE-PIVOT Price: $6.50 |
| 21 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
323-6 |
SCREW-HH Price: $0.66 |
| 23 |
3234-40 |
SCREW-HF Price: $3.38 |
| 24 |
325-14 |
SCREW-HH Price: $2.64 |
| 25 |
325-9 |
SCREW-HH Price: $1.87 |
| 26 |
325-10 |
SCREW-HH Price: $1.82 |
| 27 |
328-2 |
SCREW-HH Price: $6.51 |
| 28 |
3217-11 |
NUT-HEX Price: $0.95 |
| 29 |
119-6253 |
SPACER-LIMITER Price: $9.65 |
| 30 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 40 |
595088102 |
Handles This part replaces 532197661. Price: $4.99 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 43 |
874760612 |
BOLT Price: $3.99 |
| 44 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133812. Price: $4.99 |
