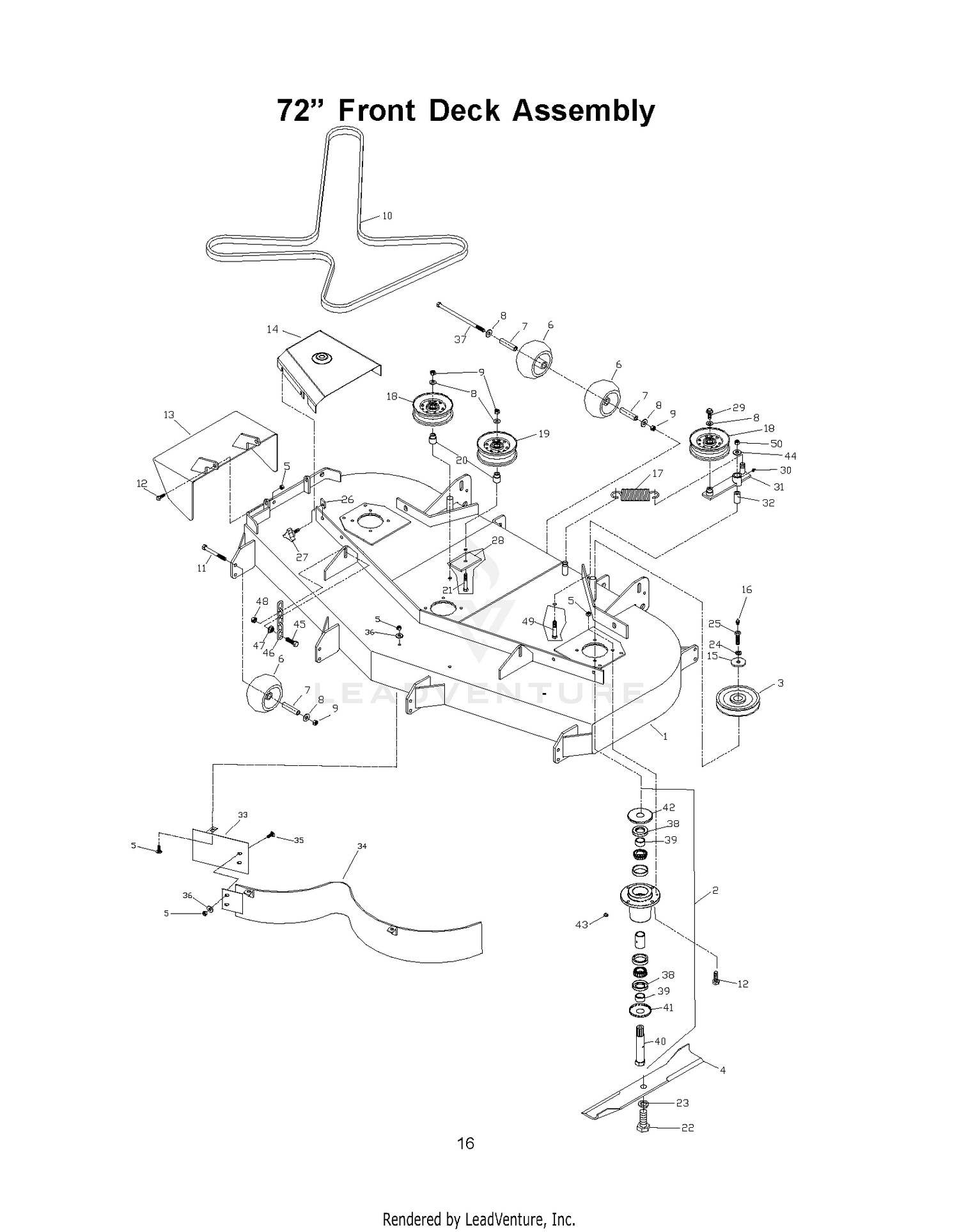

MOWER DECK / CUTTING DECK
Parts (127)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-0703 | BUSHING Price: $18.15 |
| 1 | 539105488 | DECK W/DECALS 72" HUS WSL Price: $3,496.99 |
| 2 | 134-0705 | PIN Price: $20.90 |
| 2 | 966956201 | KIT, HSG ASM 72 This part replaces 539108774. Price: $528.99 |
| 3 | 134-0706 | ROD-CONNECTING Price: $6.98 |
| 3 | 539112126 | PULLEY, 72 This part replaces 539107279. Price: $44.99 |
| 4 | 134-0707 | HINGE Price: $46.99 |
| 4 | 539105476 | BLADE OEM - 25" Price: $34.99 |
| 5 | 134-0708 | COLUMN-STEERING Price: $119.94 |
| 5 | 596580701 | Nuts This part replaces 539990184. Price: $2.99 |
| 6 | 134-0716 | CAMSHAFT Price: $36.68 |
| 6 | 539102643 | ANTI-SCALP ROLLER Price: $8.99 |
| 7 | 134-0746 | SPACER Price: $15.70 |
| 7 | 539102698 | BUSHING Price: $29.99 |
| 8 | 134-0750 | PIN Price: $17.10 |
| 8 | 596433701 | GSPW Washers This part replaces 539990517. Price: $2.99 |
| 9 | 134-0756 | PIN Price: $19.73 |
| 9 | 595305901 | Nuts This part replaces 539990546. Price: $2.99 |
| 10 | 134-0757 | PIN Price: $15.97 |
| 10 | 539105477 | BELT, DECK 72" Price: $119.99 |
| 11 | 134-0789 | PEDAL-BRAKE Price: $39.71 |
| 11 | 539102754 | HCS 3/8C X 3 1/2 Price: $3.99 |
| 12 | 134-0791 | PEDAL-BRAKE Price: $42.02 |
| 12 | 596580801 | Bolts This part replaces 539990209. Price: $2.99 |
| 13 | 134-0836 | BRACKET Price: $6.73 |
| 13 | 539108270 | DISCHARGE CHUTE Price: $93.99 |
| 15 | 134-0846 | LOCK-BRAKE Price: $18.34 |
| 15 | 596770301 | Washers This part replaces 539106504. Price: $4.99 |
| 16 | 134-0888 | SPACER Price: $7.27 |
| 16 | 596899901 | GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 17 | 134-0894 | SPACER Price: $6.92 |
| 17 | 539105192 | DECK SPRING Price: $13.99 |
| 18 | 134-0896 | PIN Price: $75.77 |
| 18 | 539103257 | IDLER PULLEY Price: $49.99 |
| 19 | 134-0898 | CABLE-BRAKE Price: $91.77 |
| 19 | 539103258 | IDLER PULLEY (TALL) Price: $44.99 |
| 20 | 134-0907 | LEVER-VALVE, AUX Price: $7.08 |
| 20 | 539103295 | IDLER BUSHING Price: $12.99 |
| 21 | 134-0910 | FORK Price: $14.46 |
| 21 | 596434201 | Bolts This part replaces 539990637. Price: $3.99 |
| 22 | 134-0912 | COLUMN Price: $6.05 |
| 22 | 539105633 | HEX SCREW-5/8F X 2 GR8 Price: $2.99 |
| 23 | 134-0929 | SUPPORT Price: $15.13 |
| 23 | 539105634 | BELLEVILLE SPRING WASHER Price: $3.99 |
| 24 | 134-0934 | BUSHING Price: $20.00 |
| 24 | 596238901 | Washers This part replaces 539990247. Price: $2.99 |
| 25 | 134-0938 | SPACER Price: $15.76 |
| 25 | 539112120 | HCS 7/16-20 GD 8 SPEC This part replaces 539108766. Price: $24.99 |
| 26 | 134-0940 | PEDAL-FORWARD/REVERSE Price: $84.21 |
| 26 | 539104763 | U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 27 | 134-0942 | BRACKET Price: $8.40 |
| 28 | 134-0943 | BRACKET Price: $8.72 |
| 28 | 596770301 | Washers This part replaces 539103303. Price: $4.99 |
| 29 | 134-0948 | BUSHING Price: $13.64 |
| 29 | 596583101 | Screws This part replaces 539990582. Price: $3.99 |
| 30 | 134-0949 | SCREW Price: $12.12 |
| 30 | 596899901 | GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 31 | 134-0957 | SUPPORT Price: $26.89 |
| 31 | 539103230 | IDLER ARM Price: $159.99 |
| 32 | 134-0960 | BRACKET Price: $4.52 |
| 32 | 539103427 | PIVOT BUSHING Price: $7.99 |
| 33 | 134-0997 | WASHER Price: $4.55 |
| 33 | 539105615 | BAFFLE/CENTER-FLAT BLK Price: $44.99 |
| 34 | 134-1008 | SCREW Price: $0.25 |
| 34 | 539105614 | BAFFLE/CENTER-CURVED Price: $129.99 |
| 35 | 134-1010 | SCREW Price: $0.32 |
| 35 | 596039401 | BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99 |
| 36 | 134-1011 | SCREW Price: $0.32 |
| 36 | 596134901 | GSPH This part replaces 539990692. Price: $2.99 |
| 37 | 134-1013 | SCREW Price: $0.39 |
| 37 | 539105422 | BOLT 3/8 X 6" GRD 8 Price: $3.99 |
| 38 | 134-1014 | SCREW Price: $0.39 |
| 38 | 539108754 | SHAFT SEAL Price: $6.99 |
| 39 | 134-1015 | SCREW Price: $0.46 |
| 39 | 539108758 | SPACER Price: $1.55 |
| 40 | 134-1031 | BUSHING-NYLON Price: $3.03 |
| 40 | 539112123 | SPINDLE 72 NLA-ORDER HOUSING This part replaces 539108761. Price: $26.18 |
| 41 | 134-1038 | NUT Price: $0.32 |
| 42 | 134-1042 | NUT Price: $0.25 |
| 43 | 134-1043 | NUT Price: $0.32 |
| 43 | 539977326 | PLUG-VENTED Price: $8.99 |
| 44 | 134-1044 | WASHER Price: $0.25 |
| 44 | 595316401 | Washers This part replaces 539990550. Price: $2.99 |
| 45 | 134-1045 | WASHER Price: $0.25 |
| 45 | 594944601 | Bolts This part replaces 539101175. Price: $2.99 |
| 46 | 134-1046 | WASHER Price: $0.25 |
| 46 | 594722002 | LIFT This part replaces 539102641. Price: $4.99 |
| 47 | 134-1048 | WASHER Price: $0.36 |
| 47 | 596577901 | Nuts This part replaces 539102582. Price: $2.99 |
| 48 | 134-1065 | FITTING-GREASE Price: $1.22 |
| 48 | 539990839 | NUT 7/16C CENTERLOCK Price: $2.99 |
| 49 | 134-1068 | SCREW Price: $0.61 |
| 49 | 539103433 | HCS 1/2C X 3 1/4 Price: $5.99 |
| 50 | 134-1073 | SCREW Price: $1.52 |
| 50 | 596135601 | GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 51 | 134-1078 | NUT Price: $0.25 |
| 52 | 134-1081 | NUT Price: $0.70 |
| 53 | 134-1082 | NUT Price: $0.36 |
| 54 | 134-1084 | NUT Price: $0.25 |
| 55 | 134-1085 | NUT Price: $0.25 |
| 56 | 134-1092 | NUT Price: $0.25 |
| 57 | 134-1163 | PAD-RUBBER Price: $9.37 |
| 58 | 134-1167 | NUT Price: $0.25 |
| 59 | 134-1194 | INSERT-THREADED Price: Call Us |
| 60 | 134-1209 | VALVE-ELECTRIC Price: $481.99 |
| 61 | 134-1242 | PIN Price: $5.51 |
| 62 | 134-1249 | BUSHING Price: $14.20 |
| 63 | 134-1254 | PLUG-SPIROL Price: $0.52 |
| 64 | 134-1257 | INSERT-THREADED Price: $0.70 |
| 65 | 134-1259 | HEAD-CYLINDER Price: $23.40 |
| 66 | 134-1263 | PULLEY Price: $6.52 |
| 67 | 134-1264 | BUSHING Price: $12.88 |
| 68 | 134-1272 | KEY-SHAFT Price: $1.46 |
| 69 | 134-1313 | SCREW Price: $0.53 |
| 70 | 134-1322 | HANDLESTEERING COLUMN Price: $20.73 |
| 71 | 134-1323 | SPACER Price: $9.85 |
| 72 | 134-1353 | SPRING Price: $5.50 |
| 73 | 134-1354 | SPACER Price: $2.75 |
| 74 | 134-1355 | WASHER Price: $4.91 |
| 76 | 134-0581 | DRIVE-HYDRAULIC Price: $618.24 |
| 77 | 134-0594 | ABSORBER-SHOCK Price: $75.90 |
| 78 | 134-0634 | SPRING-PEDAL, BRAKE Price: $9.40 |
| 79 | 134-3087 | TRACTION PEDAL PIN Price: $113.36 |
| 80 | 134-3088 | PEDAL COMP Price: $72.41 |
| 81 | 134-3089 | DUST CAP Price: $3.77 |
| 82 | 134-3090 | SCREW Price: $1.15 |
| 83 | 134-3091 | RING SNAP Price: $0.25 |
