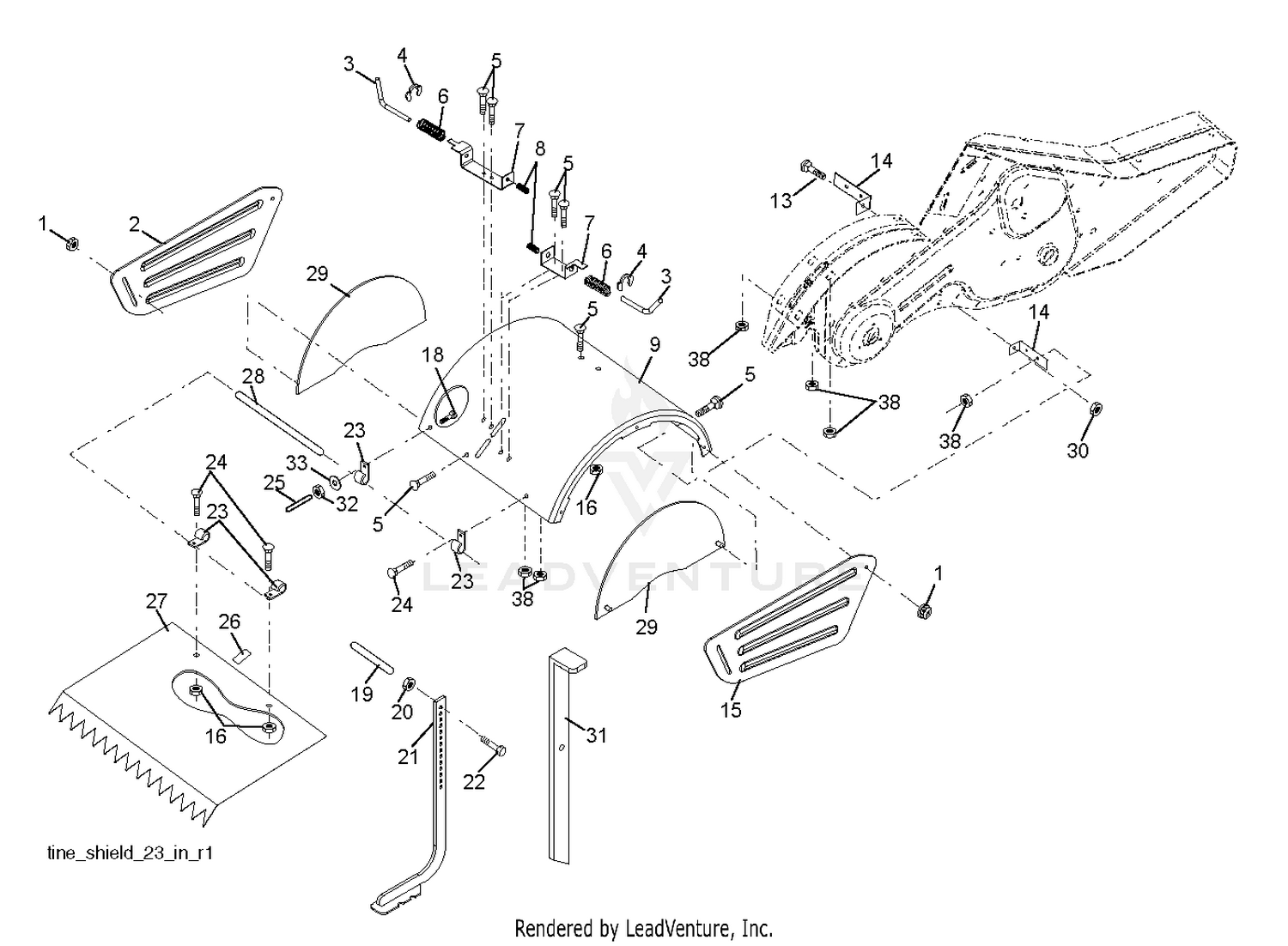

| Ref | Part Number | Description |
|---|
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 1 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
532440452 |
SHIELD.PNT.SIDE.OUTER.LH.ORANG Price: $17.99 |
| 3 |
327-2 |
SCREW-HH Price: $2.44 |
| 3 |
532008393 |
STAKE PIN TI Price: $19.99 |
| 4 |
812000035 |
RING, KLIP Price: $3.99 |
| 4 |
93-0064-03 |
SUPPORT ASM - AXLE This part replaces 93-0064. Price: $982.56 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 5 |
595901601 |
GSPW Bolts This part replaces 532180847. Price: $2.99 |
| 6 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 6 |
532008394 |
SPRING TI Price: $7.99 |
| 7 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 7 |
532008392 |
BRACKET.LATCH.STAKE.3.20.BLACK Price: $4.99 |
| 8 |
5-1226 |
WASHER Price: $3.90 |
| 8 |
532109230 |
SPRING CRT Price: $4.99 |
| 9 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 9 |
532440444 |
SHIELD.TINE.DRT17.TILLER.ORANG Price: $49.99 |
| 10 |
67-1751 |
BUSHING Price: $4.89 |
| 11 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 12 |
256-121 |
WASHER-THRUST Price: $4.55 |
| 13 |
67-7250 |
SPACER-RING Price: $3.32 |
| 13 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 14 |
3220-3 |
NUT-HJ Price: $0.28 |
| 14 |
584459301 |
BRACKET.TINE.SHIELD.BLACK This part replaces 532124343. Price: $32.99 |
| 15 |
532440450 |
SHIELD.SIDE OUTER.RH.ORANGE Price: $17.99 |
| 15 |
93-7001-03 |
SPINDLE-LH This part replaces 93-7001. Price: $370.29 |
| 16 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 16 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 17 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 18 |
21-2820 |
HUB Price: $269.34 |
| 18 |
872040410 |
BOLT Price: $3.99 |
| 19 |
231-141 |
DISCONTINUED Price: Call Us |
| 19 |
532102701 |
GRIP CRT Price: $9.99 |
| 20 |
241-121 |
WHEEL ASM This part replaces 217-121. Price: $162.77 |
| 20 |
873220600 |
NUT.HEX.3/8-16UNC Price: $4.99 |
| 21 |
5108 |
VALVE This part replaces 232-35. Price: $6.29 |
| 21 |
531154801 |
SERVICE KIT STAKE STAKE.DEPTH. This part replaces 532102156. Price: $8.99 |
| 22 |
874930632 |
BOLT.375-16 Price: $5.99 |
| 22 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 23 |
3220-7 |
NUT-JAM Price: $4.09 |
| 23 |
532004440 |
HINGE CRT Price: $3.99 |
| 24 |
596133401 |
Bolts This part replaces 872140404. Price: $1.99 |
| 25 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 25 |
532006712 |
VINYL CAP This part replaces 532124717. Price: $3.99 |
| 26 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 26 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 27 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 27 |
532440448 |
SHIELD.LEVELING.17".ORANGE Price: $69.99 |
| 28 |
253-129 |
SEAL Price: $21.73 |
| 28 |
532120588 |
PIN.HINGE.TILLER Price: $6.99 |
| 29 |
585414301 |
KIT.TILLER.SIDE.SHIELD.BLACK This part replaces 532440449. Price: $37.99 |
| 29 |
67-9410 |
WASHER Price: $2.04 |
| 30 |
328-25 |
SCREW-HH Price: $4.07 |
| 30 |
596040501 |
Hardware This part replaces 873970500. Price: $2.99 |
| 31 |
237-78 |
O-RING Price: $3.85 |
| 31 |
532423463 |
RP.STAKE.DEPTH.DRAG.TILLR.GREY Price: $11.99 |
| 32 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 32 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 33 |
237-21 |
O-RING Price: $0.70 |
| 33 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 34 |
75-6230 |
HOSE This part replaces 75-6220. Price: $133.10 |
| 35 |
99-5686 |
RH SOCKET ASM This part replaces 21-0140. Price: $99.81 |
| 36 |
3220-5 |
NUT-JAM Price: $0.65 |
| 37 |
75-3130-03 |
ROD-TIE This part replaces 75-3130. Price: $74.06 |
| 38 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 39 |
21-0151 |
LH BALL JOINT ASM Price: $126.28 |
| 40 |
32151-77 |
RING-RETAINING, EXTERNAL Price: $4.07 |
| 41 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 42 |
75-4410 |
DISCONTINUED Price: Call Us |
| 43 |
76-2970 |
BUSHING-STRAIGHT Price: $9.02 |
| 44 |
75-4180-03 |
MASKED PIN ASM This part replaces 75-4180. Price: $136.86 |
| 45 |
75-2900 |
REAR AXLE WA Price: $1,154.77 |
| 46 |
237-165 |
GROMMET Price: $15.70 |
| 47 |
110-4130 |
CYLINDER-STEER, HYD This part replaces 75-1200. Price: $823.03 |
| 48 |
5-1226 |
WASHER Price: $3.90 |
| 49 |
328-27 |
SCREW HH Price: $14.79 |
| 50 |
75-6230 |
HOSE Price: $133.10 |
| 51 |
66-2990 |
CAP-SPINDLE Price: $13.27 |
