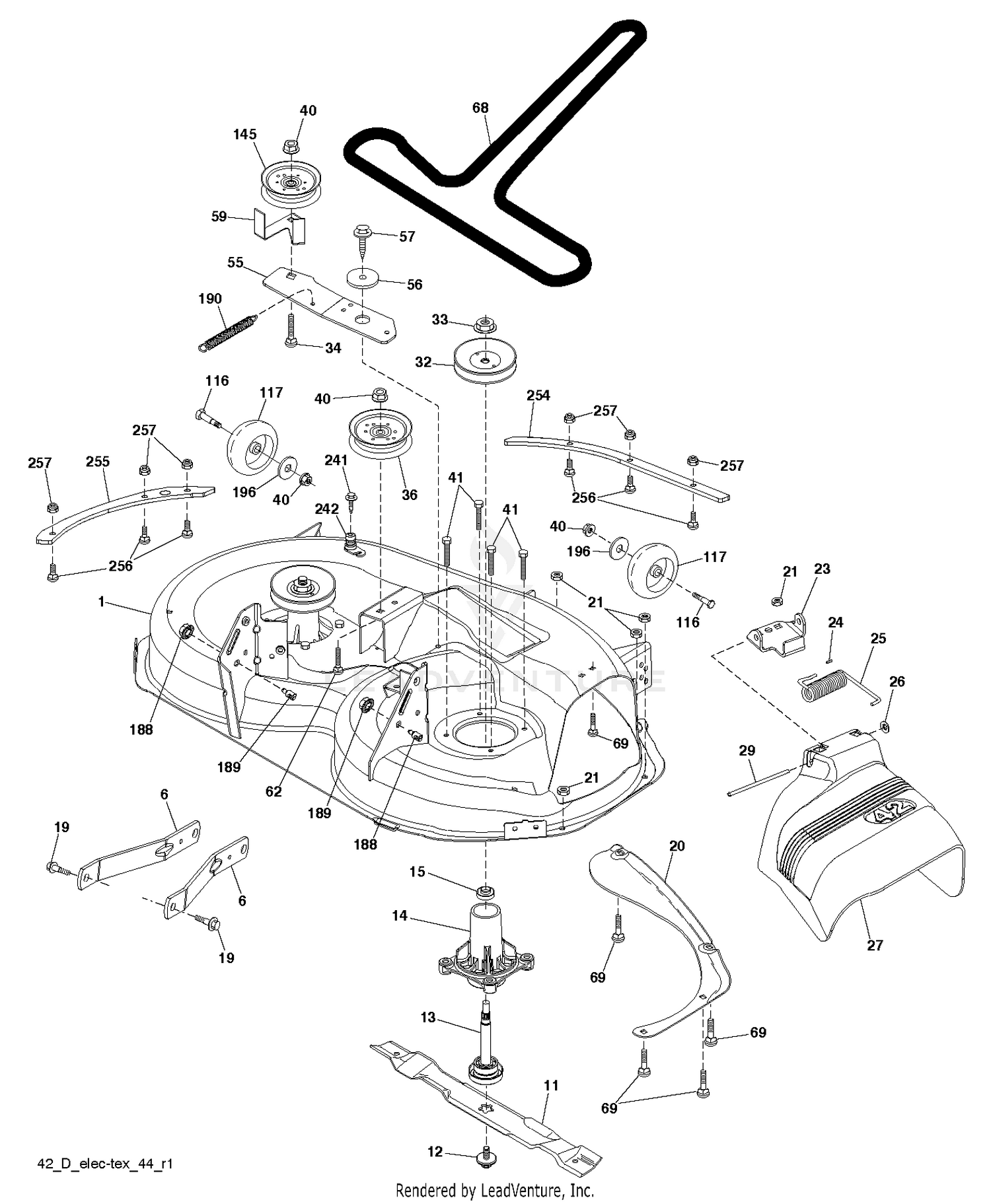

| Ref | Part Number | Description |
|---|
| 1 |
42-9310 |
BOLT Price: $1.29 |
| 1 |
598602801 |
Decks This part replaces 532441275. Price: $349.99 |
| 2 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 3 |
42-9150 |
INLET PIPE MM 408564 Price: $88.20 |
| 4 |
42-7510 |
DISCONTINUED Price: Call Us |
| 5 |
42-9160 |
GASKET MM 408566 Price: $6.47 |
| 6 |
42-9120 |
MANIFOLD MM 408541 Price: $261.68 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 7 |
42-9140 |
GASKET Price: $29.21 |
| 8 |
72-4290 |
CYLINDER HEAD Price: $2,545.36 |
| 9 |
42-7550 |
GASKET Price: $12.51 |
| 10 |
43-1790 |
FITTING Price: $119.75 |
| 11 |
42-7740 |
HOSE NIPPLE Price: $37.46 |
| 12 |
43-3140 |
DISCONTINUED Price: Call Us |
| 12 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 13 |
43-3130 |
WATER HOSE Price: $83.64 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 587256501. Price: $49.99 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 14 |
93-3524 |
THERMOSTAT This part replaces 43-1780. Price: $88.41 |
| 15 |
42-7540 |
DISCONTINUED Price: Call Us |
| 15 |
585323901 |
BEARING.MANDREL.TOP.EXTENDED Price: $12.99 |
| 16 |
93-3685 |
PIPE - AIR BREATHER Price: $25.38 |
| 18 |
42-7420 |
CAP-FILLER Price: $66.12 |
| 19 |
33014-00 |
NUT-HEX This part replaces 42-9580. Price: $0.25 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 20 |
42-9800 |
WASHER Price: $4.67 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 21 |
42-7490 |
OIL SEAL MD 000523 Price: $6.20 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
42-7530 |
Label-Engine No. Price: Call Us |
| 23 |
42-7500 |
COVER ASM MM 408491 Price: $286.42 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
42-7520 |
COVER GASKET Price: $39.88 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 25 |
93-3180 |
BOLT - CYL HEAD (10X90) Price: $14.71 |
| 26 |
42-9180 |
DISCONTINUED Price: Call Us |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
42-7460 |
VALVE GUIDE Price: $94.84 |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $29.99 |
| 28 |
42-7480 |
GLOW PLUG (12V) Price: $44.35 |
| 29 |
42-7440 |
DISCONTINUED Price: Call Us |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
107-4803 |
CAP-SEALING This part replaces 42-7080. Price: $14.47 |
| 31 |
42-9320 |
CYL HD BOLT Price: $20.24 |
| 32 |
42-9790 |
CYL HD BOLT WASHER Price: $8.24 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $14.99 |
| 33 |
42-9390 |
DISCONTINUED Price: Call Us |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
44-8070 |
NOZZLE/HOLDER ASM Price: $448.12 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 35 |
42-8120 |
HLDR GASKET K 6515430 Price: $4.85 |
| 36 |
42-7090 |
SEALING CAP Price: $27.82 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 37 |
86-6240 |
PLUG-TAPERED This part replaces 67-2570. Price: $5.11 |
| 38 |
42-9570 |
STUD Price: $2.57 |
| 39 |
42-9170 |
GASKET Price: $41.86 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 41 |
42-9110 |
GASKET Price: $29.21 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 42 |
43-1870 |
MANIFOLD Price: $728.35 |
| 43 |
33114-030 |
SCREW-HH This part replaces 42-9520. Price: $0.50 |
| 44 |
42-9240 |
BOLT/WASHER Price: $12.27 |
| 46 |
43-1770 |
DISCONTINUED Price: Call Us |
| 47 |
112-1351 |
STARTER ASM This part replaces 46-7610. Price: $624.05 |
| 48 |
43-0090 |
SCREW-HH Price: $8.05 |
| 49 |
42-9260 |
DRAIN PLUG Price: $29.62 |
| 50 |
42-7290 |
GASKET-PLUG Price: $7.56 |
| 51 |
33114-016 |
SCREW-HH This part replaces 42-9230. Price: $0.27 |
| 52 |
42-7280 |
OIL PAN ASM Price: $355.03 |
| 53 |
42-7300 |
PAN GASKET Price: $69.07 |
| 54 |
42-9660 |
WASHER Price: $2.50 |
| 55 |
33114-045 |
SCREW-HH This part replaces 42-9500. Price: $0.68 |
| 55 |
531171201 |
SERVICE KIT IDLER.ARM.42" This part replaces 532437110. Price: $5.99 |
| 56 |
42-9070 |
PULLEY K9674051 F/W Price: $138.23 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 58 |
42-9490 |
SCREW - CAP Price: $0.30 |
| 59 |
33114-060 |
SCREW-HH This part replaces 42-9510. Price: $0.88 |
| 60 |
42-9080 |
WATER PUMP Price: $698.34 |
| 61 |
42-9090 |
GASKET Price: $12.51 |
| 62 |
48-2020 |
DISCONTINUED Price: Call Us |
| 62 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 63 |
42-7470 |
CYL GASKET Price: $288.57 |
| 64 |
63-7790 |
SCREW-CAP This part replaces 42-9300. Price: $1.46 |
| 65 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 66 |
33114-040 |
SCREW-HH This part replaces 42-9530. Price: $1.22 |
| 67 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 68 |
532144959 |
BELT V SECONDARY Price: $37.99 |
| 68 |
93-3656 |
GASKET Price: $14.76 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 190 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 196 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 254 |
585316805 |
PLATES.RENFRC.42DECK.PT431FRNT Price: $11.99 |
| 255 |
585317005 |
PLATES.RENFRCE.42DECK.X431SIDE Price: $11.99 |
| 256 |
592807801 |
BOLT CUP HEAD SQUARE NECK 1/4- This part replaces 539109800. Price: $2.99 |
| 257 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
