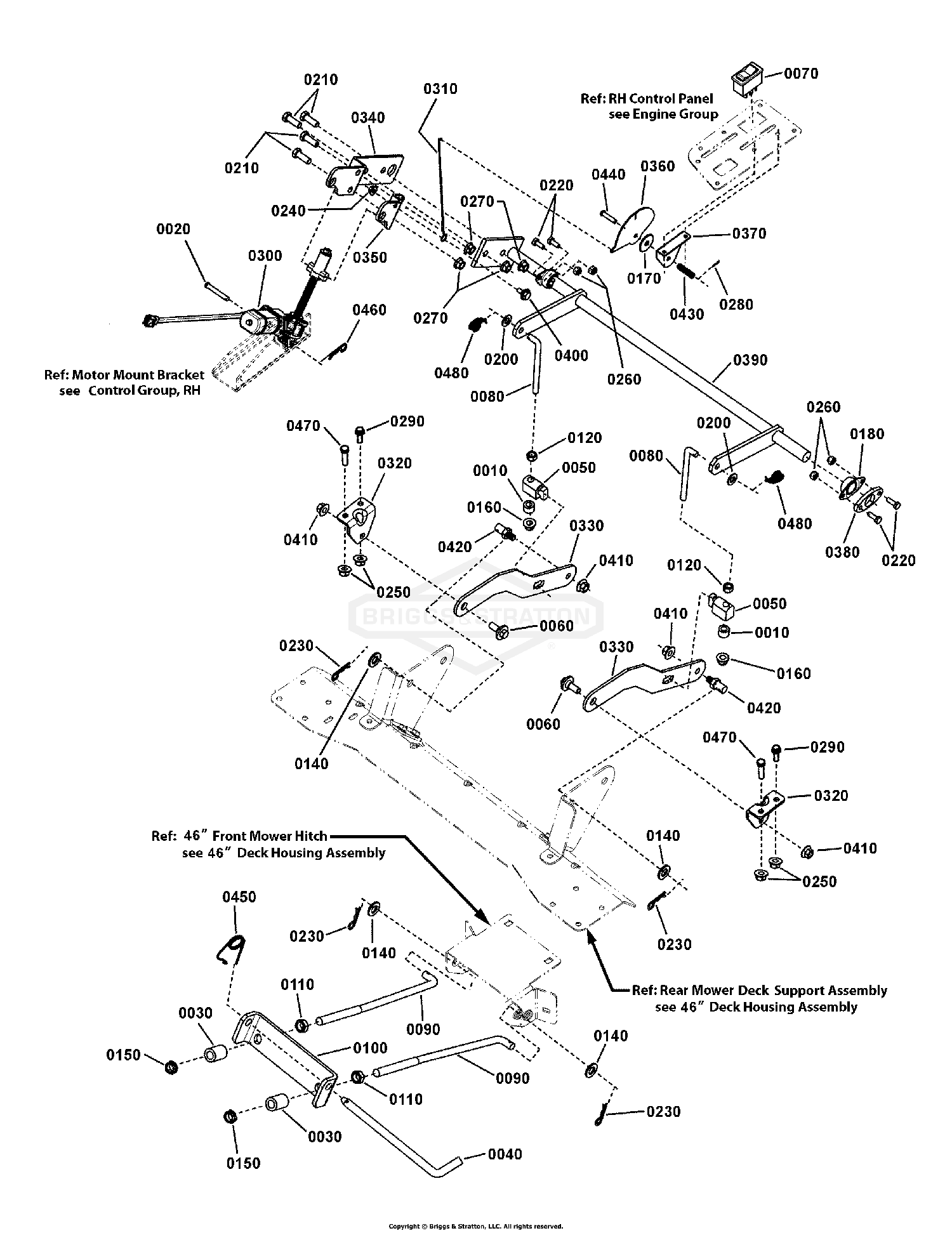

| Ref | Part Number | Description |
|---|
| 0010 |
1666294SM |
SPACER, .385 ID, .669 OD, .455 LG, PM Yel Price: $4.64 |
| 0020 |
703063 |
PIN, SHEAR Price: $3.40 |
| 0030 |
1679166SM |
SPACER, 1/2 x 7/8 x 1 3/16 Price: $6.68 |
| 0040 |
1731414SM |
ROD, Latch, 1/2 x 9” Long, 42” Price: $13.82 |
| 0050 |
1731894SM |
TRUNNION, Powdered Metal, .406 ID Hole Price: $8.76 |
| 0060 |
1732129SM |
BOLT, 3/8-16 x .94, Shoulder, BZ Price: $5.19 |
| 0070 |
1734141SM |
SWITCH, Rocker Electric Height-Of-Cut Price: $44.22 |
| 0080 |
1734217SM |
ROD, Mower Lift (3/8-16 thread) Yellow Price: $13.14 |
| 0090 |
1736081YP |
ROD, Front Bail (1/2-13 thread) 46, 52 MWR Price: $12.01 |
| 0100 |
1737059AYP |
HANGER, Front Mower This part replaces 1737059BM. Price: $16.22 |
| 0110 |
1913744SM |
NUT, Hex Jam, 1/2-13 Price: $4.26 |
| 0120 |
703577 |
NUT, HEX, 3/8-16 Price: $3.72 |
| 0140 |
703853 |
WASHER, 0.516IDX1OD Price: $4.49 |
| 0150 |
1960379SM |
NUT, Hex Lock, 1/2-13 Price: $4.38 |
| 0160 |
5025394SM |
NUT, 3/8-16 HEX NYLOCK This part replaces 703158. Price: $3.82 |
| 0170 |
7023649YP |
WASHER, 5/16” Nylon Price: $3.73 |
| 0180 |
7026196SM |
BEARING, Flange, .75 ID PM Price: $6.46 |
| 0200 |
703878 |
WASHER, FLAT Price: $3.40 |
| 0210 |
5025013X8SM |
BOLT, 3/8-16 X 1" GD5 This part replaces 703407. Price: $3.29 |
| 0220 |
5025010X6SM |
BOLT, 1/4-20 X 3/4" G This part replaces 703925. Price: $3.29 |
| 0230 |
703300 |
PIN, 3/32 X 1.6 Price: $3.50 |
| 0240 |
703233 |
NUT, 1/4-20, GR5 Price: $3.94 |
| 0250 |
703409 |
NUT, 5/16-18, GR5 Price: $4.92 |
| 0260 |
703251 |
NUT, 1/4-20 This part replaces 703954. Price: $4.41 |
| 0270 |
703333 |
NUT, 3/8-16 Price: $4.26 |
| 0280 |
579493MA |
PIN, COTTER .06X .50 This part replaces 703464. Price: $3.73 |
| 0290 |
703823 |
BOLT, 5/16-18X0.625 Price: $3.39 |
| 0300 |
7103818YP |
MOTOR, Actuator, Lift, Deck Price: $137.79 |
| 0310 |
7103956YP |
ROD, Indicator, Height-Of-Cut Price: $8.66 |
| 0320 |
7300028BMYP |
BRACKET, Deck Hanger Price: $13.15 |
| 0330 |
7301098BMYP |
BAR, Rear Lift Price: $26.64 |
| 0340 |
7301104BMYP |
BRACKET, Lift, Deck, Primary Price: $12.85 |
| 0350 |
7301105BMYP |
BRACKET, Lift, Deck, Secondary Price: $13.90 |
| 0360 |
7301119BCYP |
LEVER, Indicator, Height-Of-Cut Price: $6.99 |
| 0370 |
7301120BMYP |
BRACKET, Indicator, Height-Of-Cut Price: $8.69 |
| 0380 |
7301125BMYP |
SPACER, Bearing, .25” Price: $11.79 |
| 0390 |
1757866BMYP |
LIFT, DECK This part replaces 7400011BMYP. Price: $174.89 |
| 0400 |
009X54MA |
SHOULDER BOLT, 1/4-20 x 3/8 This part replaces 720100. Price: $4.70 |
| 0410 |
703893 |
NUT, CNTR LCK, 3/8-16 Price: $5.91 |
| 0420 |
704054 |
PIN, 3/8-16 Price: $6.36 |
| 0430 |
164X34MA |
SPRING, Compression, .355” OD, 1.375” LG Price: $5.13 |
| 0440 |
578309MA |
LF PIN, CLEVIS .25DX Price: $5.09 |
| 0450 |
703852 |
PIN, 5/16 X 0.375 Price: $3.94 |
| 0460 |
703430 |
PIN, 13X1.19 Price: $2.87 |
| 0470 |
703570 |
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 Price: $3.95 |
