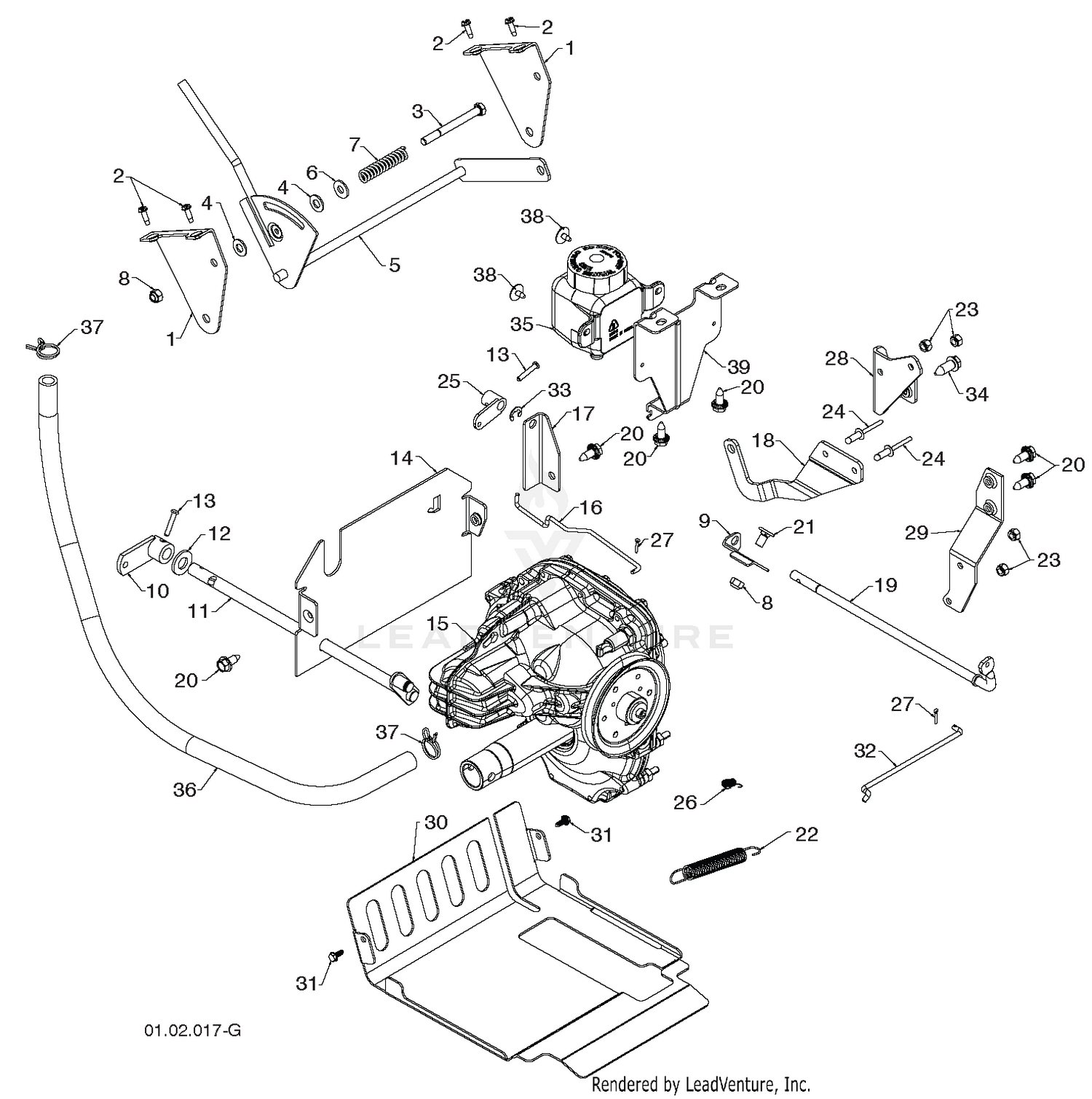

| Ref | Part Number | Description |
|---|
| 1 |
532443344 |
BRACKET.SHIFT.HYDRO Price: $3.99 |
| 2 |
817541008 |
SCREW Price: $3.99 |
| 3 |
874760552 |
SCREW 5/16-18 X 3.25 Price: $3.99 |
| 4 |
532179246 |
WASHER, NYLON FRICTION Price: $3.99 |
| 6 |
532155415 |
WASHER.20X8.5 Price: $4.99 |
| 7 |
532192195 |
SRPING.FRICTION.HYDRO Price: $3.99 |
| 8 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 9 |
532429803 |
BRACKET.HYD.CLUTCH. Price: $4.99 |
| 10 |
532443191 |
ARM.CONTRL.PIN.TRACK Price: $14.99 |
| 11 |
532429668 |
KIT.CONTROL.SHAFT.SNOW This part replaces 532427542. Price: $29.99 |
| 12 |
532188906 |
WASHER.FLAT.1/2 Price: $6.99 |
| 13 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 14 |
580750602 |
PLATE.REAR.HYDRO.TRACK.ORANGE Price: $16.99 |
| 15 |
532445058 |
TRANSMISSION 321-0410 Price: $949.00 |
| 16 |
532193256 |
ROD, BYPASS VALVE Price: $8.99 |
| 17 |
532429805 |
BRACKET.HYD.CLUTCH.REAR Price: $5.99 |
| 18 |
532187787 |
ARM.CONTROL.HYDRO.SNOW Price: $11.99 |
| 19 |
532198251 |
SHAFT.HYD.CLUTCH Price: $17.99 |
| 20 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 21 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 22 |
532178828 |
SPRING, BRAKE Price: $4.99 |
| 23 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 24 |
532191995 |
RIVET.POP.1/4X.475 Price: $2.99 |
| 25 |
532198249 |
ARM.HYD.CLUTCH Price: $6.99 |
| 26 |
532192873 |
SPRING, TRACTION IDLER Price: $2.99 |
| 27 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 28 |
532436754 |
BRACKET.ANTI-ROTATE.HYDRO.BLAC This part replaces 532407858. Price: $14.99 |
| 29 |
532414771 |
STRAP.TORQUE.HYDRO Price: $11.99 |
| 30 |
585166802 |
COVER.TRANSMISSION.TRACK.BLACK Price: $51.99 |
| 31 |
532443384 |
SCREW1032X.500 Price: $2.99 |
| 32 |
532446293 |
ROD.HYDRO CLUTCH Price: $7.99 |
| 33 |
532428288 |
E-RING.RETAINER.REINFORCED.375 Price: $3.99 |
| 34 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 35 |
574811301 |
TANK.EXPANSION.350ML 71328 Price: $54.99 |
| 36 |
580750801 |
HOSE.EXPANSION.TANK.TRACK Price: $46.99 |
| 37 |
532445152 |
SPRING HOSE CLAMP.750 This part replaces 532445298. Price: $3.99 |
| 38 |
532189241 |
SCREW.HEX.WASH.HD.TAPPING Price: $3.99 |
| 39 |
580750902 |
BRACKET.EXPANS.TANK.TRACK.GREY Price: $17.99 |
