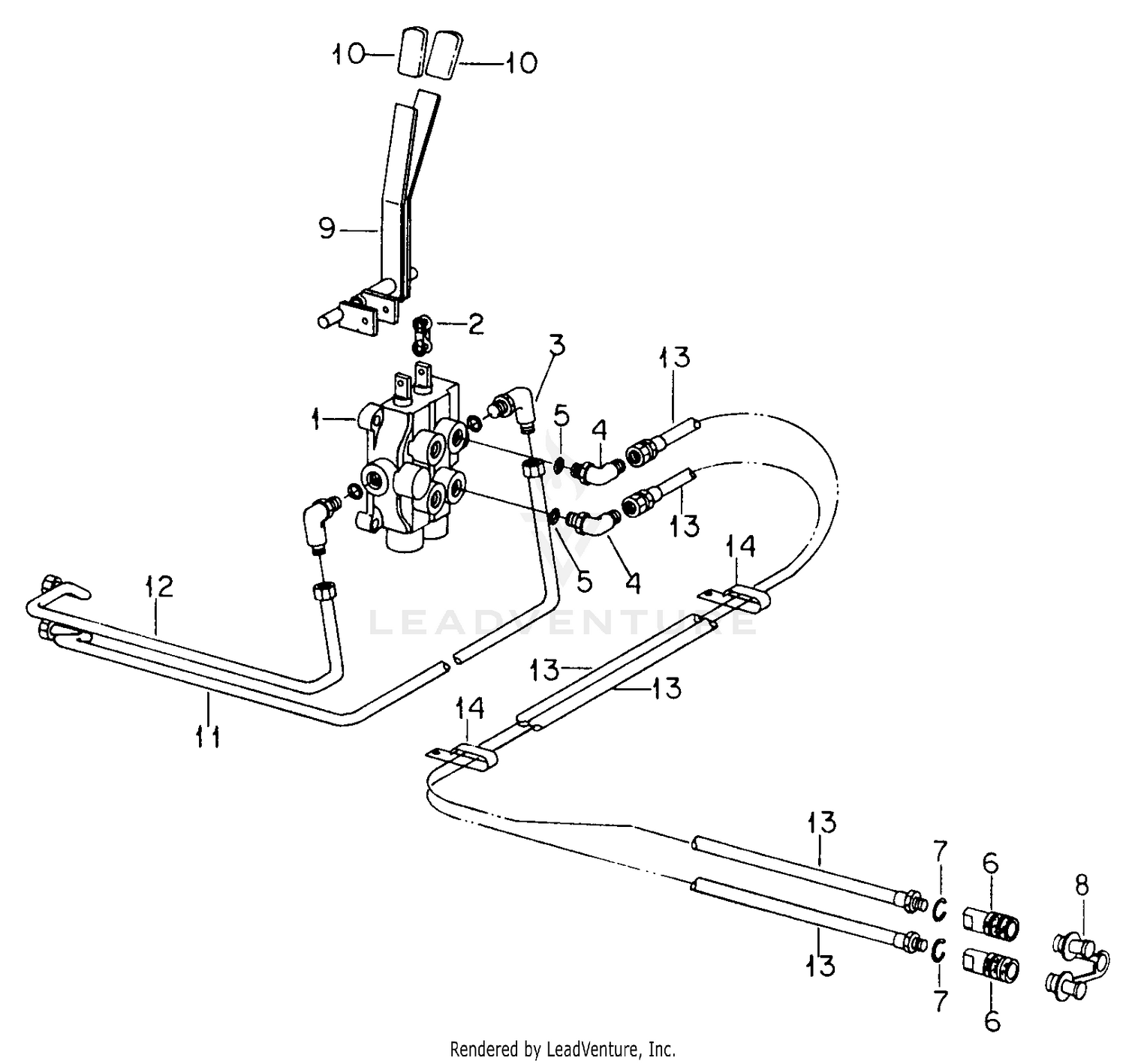

| Ref | Part Number | Description |
|---|
| 1 |
49-5430 |
ROD-CONTROL Price: $75.94 |
| 1 |
717-3025 |
CONTROL VALVE ASSEMBLY Not Available Price: |
| 2 |
3220-2 |
NUT-JAM Price: $0.50 |
| 2 |
913-3000 |
CHAIN LINK Not Available This part replaces 713-3000. Price: |
| 3 |
282-2 |
YOKE Price: $30.04 |
| 3 |
727-3012 |
Elbow, 90 Deg Tube Price: $23.35 |
| 4 |
283-61 |
PIN-YOKE Price: $1.56 |
| 4 |
727-3003 |
FITTING Not Available Price: |
| 5 |
44-0870 |
CAM SHAFT ASM Price: $213.32 |
| 5 |
721-3001 |
O-Ring, 3/8 OD Tube Price: $3.15 |
| 6 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 7 |
27-2320 |
BEARING Price: $15.22 |
| 7 |
716-3014 |
RING, EXTERNAL RET Not Available Price: |
| 8 |
283-57 |
PIN-CLEVIS Price: $1.15 |
| 8 |
731-3022 |
Plug, Protective Price: $17.67 |
| 9 |
49-6220 |
BRACKET-ARM, CONTROL Price: $28.06 |
| 9 |
703-0455 |
HANDLE ASSEMBLY-VALVE Not Available Price: |
| 10 |
256-251 |
BUSHING Price: $2.46 |
| 10 |
720-3004 |
Grip Price: Call Us |
| 11 |
233-48 |
KNOB Price: $10.92 |
| 12 |
727-3016 |
RETURN TUBE ASSEMBLY Not Available Price: |
| 12 |
93-9934 |
TRACTION HANDLE ASM Price: $86.68 |
| 13 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 13 |
727-3017 |
HOSE-PRESSURE SUPP Not Available Price: |
| 14 |
None |
Not used in this application |
| 14 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 15 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 16 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
57-6220 |
LINK-CONNECTING Price: $6.01 |
| 18 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 19 |
3211-2 |
SCREW-HH Price: $2.17 |
| 20 |
HY2562 |
DISCONTINUED This part replaces 256-2. Price: Call Us |
| 21 |
49-6260 |
PIVOT ASM Price: $79.73 |
| 22 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 23 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 24 |
83-0540-01 |
TRACTION PEDAL ASM This part replaces 83-0540. Price: $70.97 |
| 25 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 26 |
256-155 |
BUSHING-FLANGE Price: $1.76 |
| 27 |
32128-20 |
NUT-HF Price: $0.99 |
| 28 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 29 |
83-0630 |
ARM-PIVOT, TRACTION Price: $25.47 |
| 30 |
2411-42 |
JOINT-BALL, LH Price: $19.07 |
| 31 |
3220-20 |
NUT-JAM Price: $0.92 |
| 32 |
83-0580 |
ROD-CONTROL, TRACTION Price: $53.72 |
| 33 |
2411-43 |
JOINT-BALL Price: $21.40 |
| 34 |
17-9420 |
SCREW-HANDLE Price: $3.49 |
| 35 |
49-6250 |
BRACKET-PIVOT Price: $22.09 |
| 36 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 37 |
49-6290 |
PIVOT SHAFT ASM Price: $25.43 |
| 38 |
12-3270 |
SCREW Price: $3.09 |
| 39 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 40 |
47-5320-01 |
LEVER This part replaces 47-5320. Price: $84.02 |
| 41 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 42 |
49-6440-03 |
PEDAL-FORWARD This part replaces 49-6440. Price: $84.90 |
| 43 |
32121-51 |
PIN-ROLL Price: $0.70 |
| 44 |
93-9936 |
BRACKET-RETURN, TRACTION Price: $6.79 |
| 45 |
93-9937 |
TRACTION CABLE ASM Price: $28.43 |
| 46 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 47 |
3272-10 |
PIN-COTTER Price: $0.25 |
