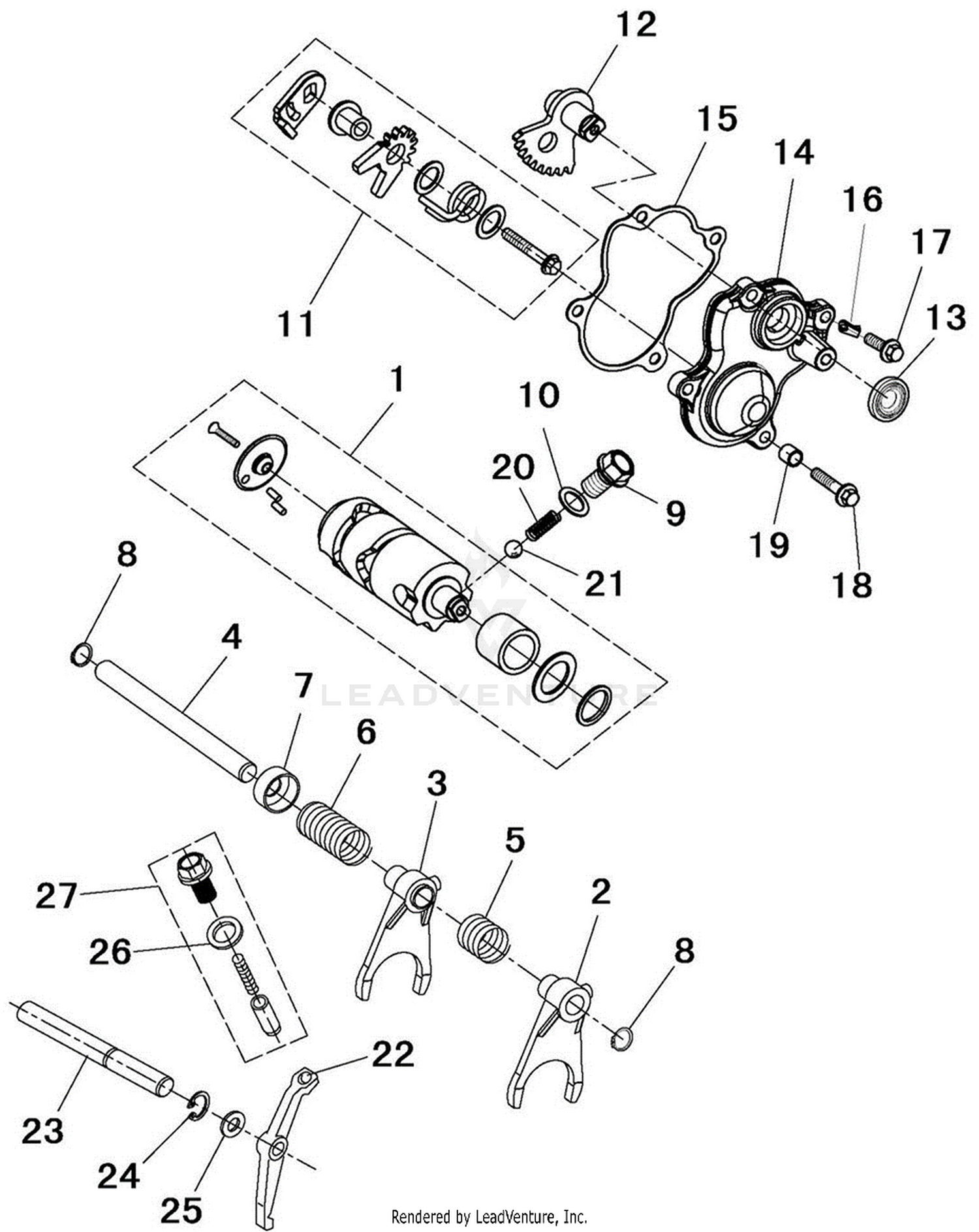

| Ref | Part Number | Description |
|---|
| 1 |
503-01314 |
SHIFT DRUM Price: $87.94 |
| 2 |
503-01131 |
SHIFTING FORK I Not Available Price: |
| 3 |
503-01132 |
SHIFTING FORK II Price: $27.67 |
| 4 |
503-01133 |
SHIFT RAIL Not Available Price: |
| 5 |
503-01134 |
RIGHT GEAR SPRING Not Available Price: |
| 6 |
503-01135 |
LEFT GEAR SPRING Price: $5.22 |
| 7 |
503-01136 |
SHIFT RAIL SPRING SEAT Price: $5.22 |
| 8 |
503-01137 |
CIRCLIP Price: $5.36 |
| 9 |
503-01138 |
HOLLOW BOLTS M14X1.5X21 Price: $10.53 |
| 10 |
503-01139 |
COPPER WASHER 14X21X1 Not Available Price: |
| 11 |
503P01140 |
SHIFT DIAL PLATE This part replaces 503-01140. Price: $46.49 |
| 12 |
503-01141 |
SHIFT SHAFT ASSEMBLY Price: $75.62 |
| 13 |
503-01142 |
OIL SEAL 15X25X5 Price: $24.57 |
| 14 |
503-01143 |
SHIFT SHAFT COVER Price: $31.35 |
| 15 |
503-01144 |
SHIFT SHAFT COVER GASKET Price: $10.76 |
| 17 |
503-01145 |
HEX FLANGE BOLTS M6X20 Not Available Price: |
| 18 |
503-01021 |
HEX FLANGE BOLTS M6X30 Price: $5.26 |
| 19 |
503-01146 |
DOWLE PIN 8X12 Price: $5.22 |
| 20 |
503-01147 |
SPRING 24X1 Price: $4.89 |
| 21 |
503-01148 |
STEEL BALL 9.5 Price: $4.89 |
| 22 |
503-01316 |
PARKING ARM Price: $53.42 |
| 23 |
503-01317 |
PARKING ARM SHAFT Price: $6.13 |
| 24 |
503-02894 |
CIRCLIP Price: $0.49 |
| 25 |
503-01318 |
WASHER 12.3 x 20 x 1 Price: $3.94 |
| 26 |
503-03524 |
COPPER WASHER This part replaces 503-02878. Price: $2.09 |
