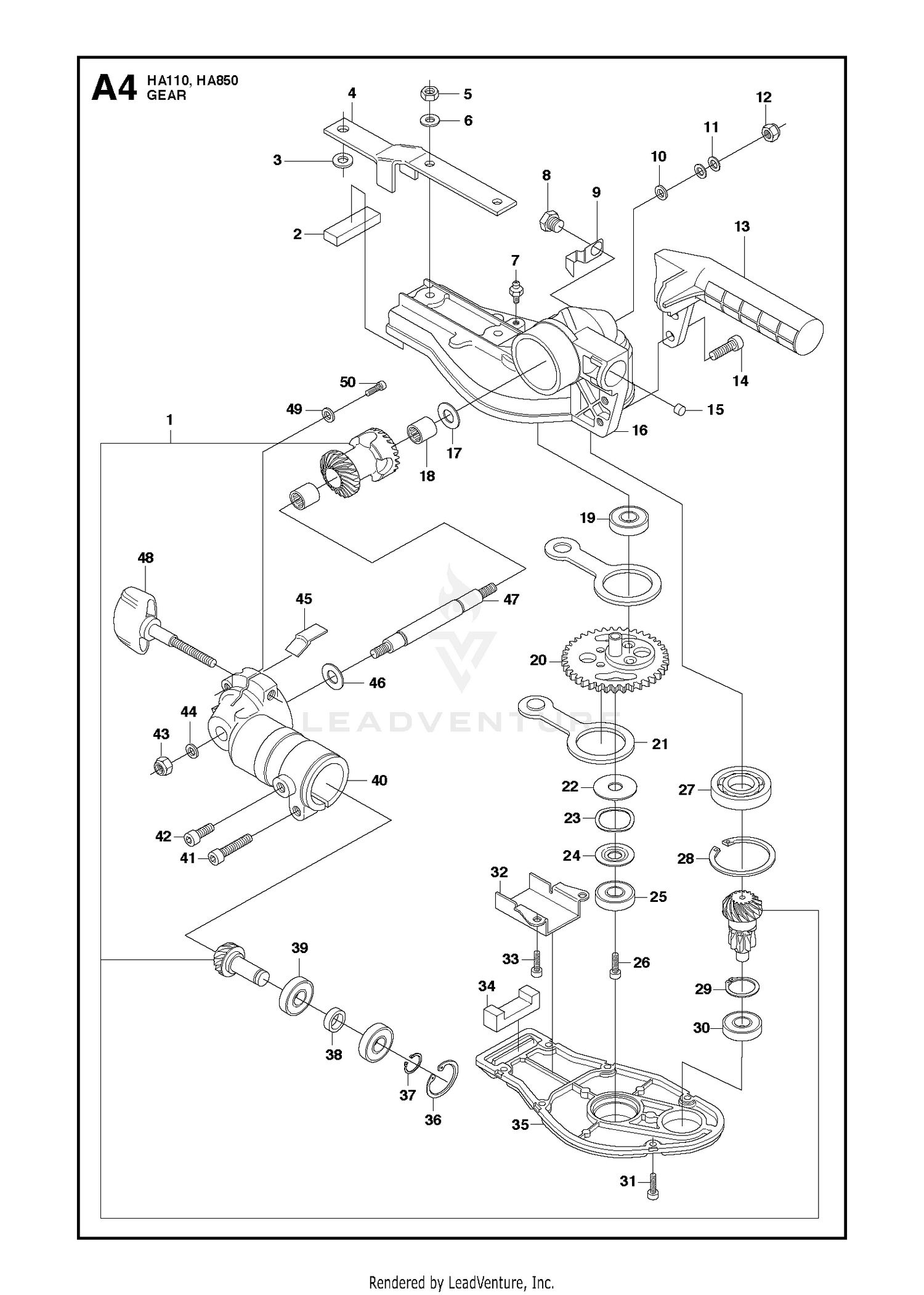

GEARS
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544064001 | GEAR KIT Price: $169.99 |
| 2 | 575746301 | GASKET This part replaces 537232201. Price: $6.99 |
| 3 | 734116541 | WASHER - 25X8.5X2.3 Price: $4.99 |
| 4 | 537232101 | BRACKET Price: $24.99 |
| 5 | 503221012 | NUT Price: $2.99 |
| 6 | 819070816 | Washer 7/32 x 1/2 x 16 Gauge This part replaces 734114601. Price: $5.99 |
| 7 | 738881001 | GREASE NIPPLE Price: $6.99 |
| 8 | 537416601 | PLUG * Price: $17.99 |
| 9 | 544000401 | PLATE Price: $8.99 |
| 10 | 734115201 | WASHER - M6 Price: $2.99 |
| 11 | 737385200 | WASHER Price: $3.99 |
| 12 | 732251601 | NUT FLANGE - M6 Price: $2.99 |
| 15 | 544093101 | PLUG Price: $5.99 |
| 16 | 537231701 | GEAR HOUSING Price: $79.99 |
| 17 | 537294201 | WASHER Price: $2.99 |
| 18 | 537233601 | SUPPORT BUSHING Price: $17.99 |
| 19 | 738219804 | BALL BEARING Price: $8.99 |
| 20 | 537232801 | GEAR Price: $74.99 |
| 21 | 537232001 | CONNECTING ROD Price: $11.99 |
| 22 | 537404801 | WASHER Price: $8.99 |
| 23 | 503230302 | WASHER Price: $14.99 |
| 24 | 537341801 | WASHER Price: $4.99 |
| 25 | 738219804 | BALL BEARING Price: $8.99 |
| 26 | 725532555 | SCREW MC6S 5X10 This part replaces 725532305. Price: $3.99 |
| 27 | 537406402 | BALL BEARING Price: $11.99 |
| 28 | 735313310 | RETAINING RING SGH 35 Price: $2.99 |
| 29 | 735311900 | RETAINING RING Price: $2.99 |
| 30 | 738219804 | BALL BEARING Price: $8.99 |
| 31 | 725529101 | SCREW Price: $2.99 |
| 32 | 537341501 | PLATE Price: $5.99 |
| 33 | 725528755 | SCREW MC6S 4X8 Price: $2.99 |
| 34 | 575746301 | GASKET This part replaces 537234201. Price: $6.99 |
| 36 | 735312510 | RETAINING RING Price: $2.99 |
| 37 | 735311100 | RETAINING RING Price: $2.99 |
| 38 | 537233701 | SPACER Price: $5.99 |
| 39 | 738219904 | BALL BEARING Price: $22.99 |
| 40 | 537231601 | GEAR HOUSING Price: $59.99 |
| 41 | 503200725 | SCREW Price: $2.99 |
| 42 | 503201412 | SCREW Price: $2.99 |
| 43 | 732251601 | NUT FLANGE - M6 Price: $2.99 |
| 44 | 734115201 | WASHER - M6 Price: $2.99 |
| 45 | 537394901 | SEALING Price: $6.99 |
| 46 | 537294201 | WASHER Price: $2.99 |
| 47 | 537232601 | SHAFT Price: $27.99 |
| 48 | 537442301 | KNOB Price: $24.99 |
| 49 | 819070816 | Washer 7/32 x 1/2 x 16 Gauge This part replaces 734114601. Price: $5.99 |
| 50 | 725532955 | SCREW MC6S 5X16 Price: $6.99 |
