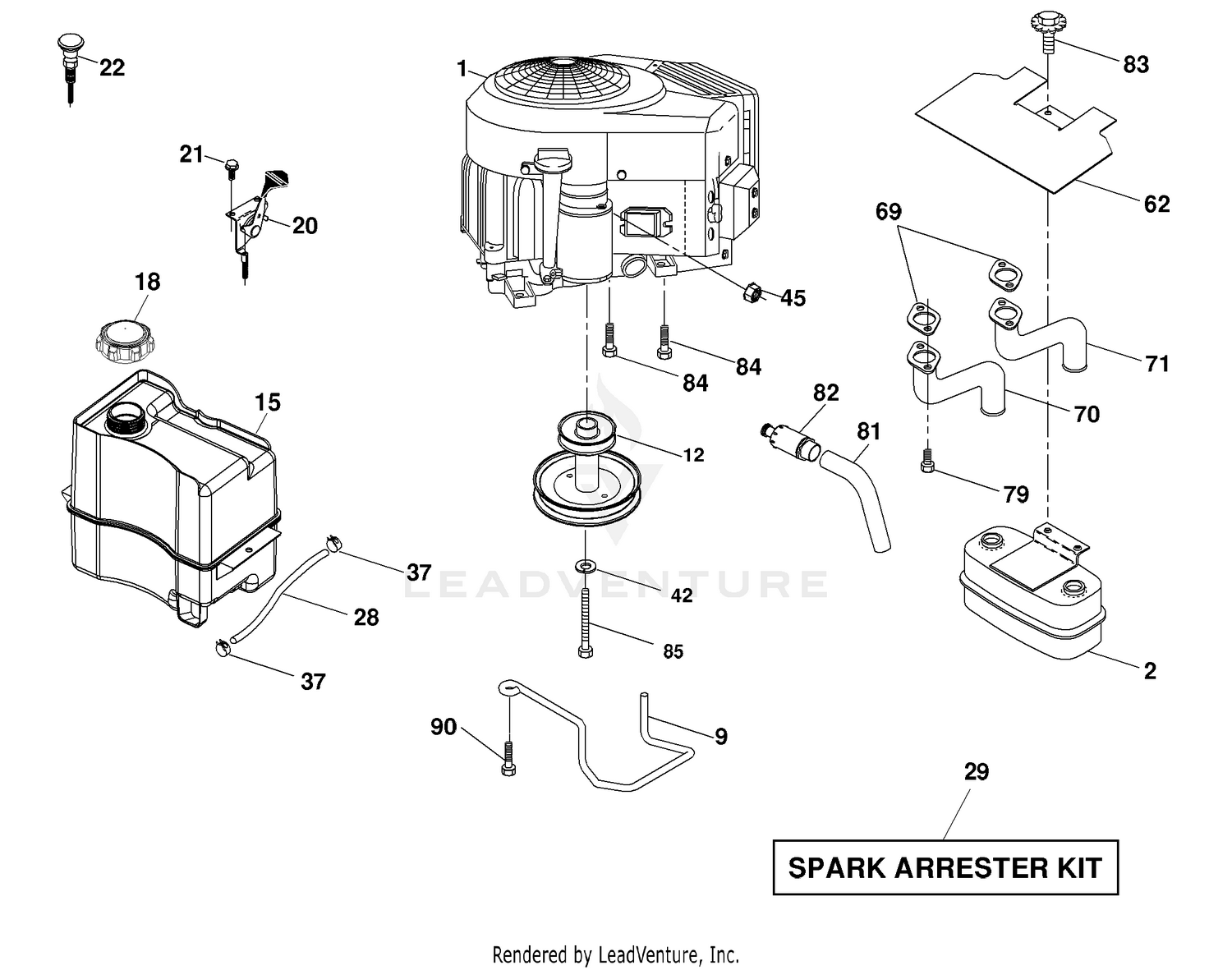

| Ref | Part Number | Description |
|---|
| 1 |
62-9170 |
DISCONTINUED Price: Call Us |
| 2 |
322-13 |
SCREW-HH Price: $2.73 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 3 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 4 |
322-3 |
SCREW-HH Price: $0.79 |
| 6 |
322-2 |
SCREW-HH Price: $0.69 |
| 7 |
2412-102 |
CLAMP-R Price: $6.85 |
| 8 |
106-9665 |
TUBE & CAP ASM This part replaces 65-5871. Price: $17.71 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
65-5890 |
CAP-END Price: $8.09 |
| 10 |
231-128 |
DISCONTINUED Price: Call Us |
| 11 |
117-2453 |
SEAT KIT This part replaces 66-7510. Price: $303.45 |
| 12 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 12 |
532405472 |
RP_PULLEY ENGINE Price: $34.99 |
| 13 |
4-2320 |
DISCONTINUED Price: Call Us |
| 14 |
256-148 |
FLANGE BUSHING Price: $14.60 |
| 15 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA This part replaces 532407489. Price: $99.99 |
| 16 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 17 |
253-125 |
OIL SEAL Price: $11.00 |
| 18 |
254-78 |
BEARING-CONE Price: $12.22 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532197725. Price: $22.99 |
| 19 |
242-39 |
WHEEL ASM Price: $244.32 |
| 20 |
5108 |
VALVE This part replaces 237-27. Price: $6.29 |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 21 |
32128-21 |
NUT-HF Price: $0.39 |
| 21 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 22 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 23 |
3296-13 |
NUT-LOCK, NI Price: $0.34 |
| 24 |
68-8700 |
DISCONTINUED Price: Call Us |
| 25 |
5-0460 |
STRG SWAGED CABLE ASM Price: $96.86 |
| 26 |
68-8770 |
DISCONTINUE Price: Call Us |
| 27 |
5-3930 |
DISCONTINUED Price: Call Us |
| 28 |
3296-50 |
NUT-LOCK, NI This part replaces 32153-10. Price: $2.68 |
| 28 |
587044822 |
HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99 |
| 29 |
32128-13 |
NUT-HF Price: $1.79 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
3231-31 |
SCREW-CARR Price: $1.29 |
| 31 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 32 |
3-6493 |
DISCONTINUED Price: Call Us |
| 33 |
3217-6 |
NUT-HEX Price: $1.19 |
| 34 |
32121-48 |
PIN-SPRING Price: $0.61 |
| 36 |
62-8300 |
DISCONTINUED Price: Call Us |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
62-9050 |
DISCONTINUED Price: Call Us |
| 38 |
62-8330 |
DISCONTINUED Price: Call Us |
| 39 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 40 |
3290-239 |
DISCONTINUED Price: Call Us |
| 41 |
3-6501 |
DISCONTINUED Price: Call Us |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 83 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
