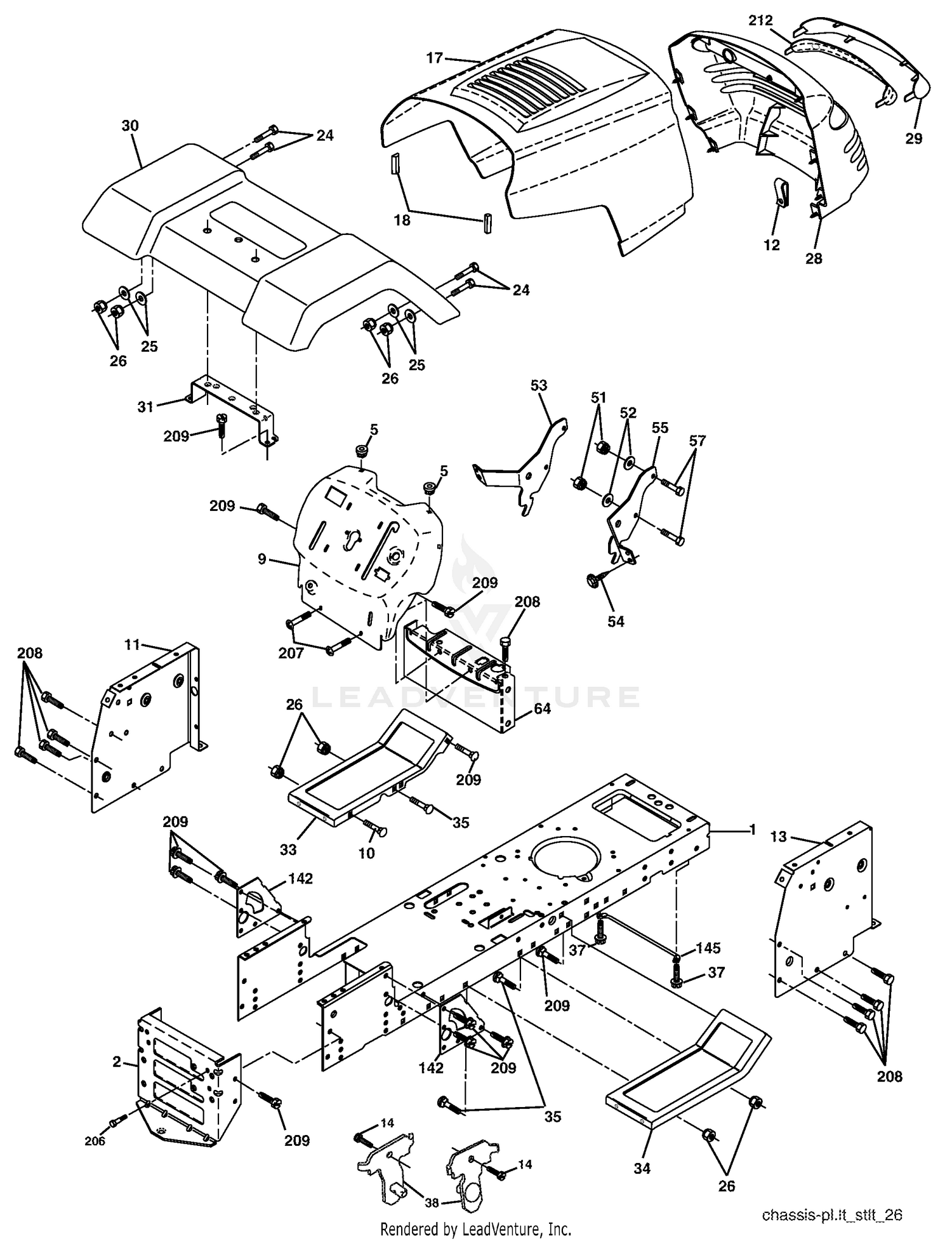

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar Price: Call Us |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 9 |
168336X010 |
Dash Price: Call Us |
| 010 |
98-9713 |
WATER FLANGE ASM Price: $199.09 |
| 10 |
72140608 |
Bolt Rd Hd Sqnk. 3/8-16 Unc x 1 Price: Call Us |
| 11 |
174996 |
Panel Asm. Dash Lh Price: Call Us |
| 12 |
145660 |
Clip Tinnerman Grile P/L Price: Call Us |
| 13 |
172105X010 |
Panel Dash Rh Price: Call Us |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 17 |
159639X428 |
Hood Price: Call Us |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 020 |
98-9580 |
PIPE-RETURN, WATER Price: $4.01 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex w/Insert 3/8-16 Unc Price: Call Us |
| 28 |
179101 |
Grill/Lens Asm Price: Call Us |
| 29 |
140273X599 |
Lens Grille Price: Call Us |
| 030 |
105-3747 |
PLUG Price: $3.62 |
| 30 |
169468X428 |
Fender Asm Price: Call Us |
| 31 |
136619 |
Bracket Fender Price: Call Us |
| 33 |
179716X428 |
Footrest LH Price: Call Us |
| 34 |
179717X428 |
Footrest RH Price: Call Us |
| 35 |
72110606 |
Bolt Rd Hd Sht. Sqnk. 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 Tyt Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Rear Price: Call Us |
| 040 |
99-3583 |
GASKET Price: $1.92 |
| 050 |
98-9638 |
GASKET-FLANGE, WATER Price: $3.74 |
| 51 |
73800400 |
Nut Lock Hex W/Ins. 1/4-20 Price: Call Us |
| 52 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 53 |
144697 |
Bracket Grille LH Price: Call Us |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 55 |
144696 |
Bracket, Grille RH Price: Call Us |
| 57 |
74780412 |
Bolt Fin Hex 1/4-20 x .75 Price: Call Us |
| 060 |
98-7692 |
BOLT Price: $0.92 |
| 64 |
154798 |
Dash Lower Price: Call Us |
| 070 |
98-9356 |
BOLT Price: $2.06 |
| 080 |
98-9578 |
PIPE-RETURN, WATER Price: $11.28 |
| 090 |
98-9579 |
BAND-PIPE Price: $5.22 |
| 100 |
98-9719 |
THERMOSWITCH Price: $98.79 |
| 110 |
98-7778 |
THERMOSTAT ASM Price: $61.89 |
| 120 |
98-9471 |
COVER-THERMOSTAT Price: $34.62 |
| 130 |
105-3748 |
GASKET-THERMOSTAT Price: $4.31 |
| 142 |
175702 |
Plate Reinforcement Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 206 |
170165 |
Bolt shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 212 |
156229 |
Insert Lens Reflector Price: Call Us |
