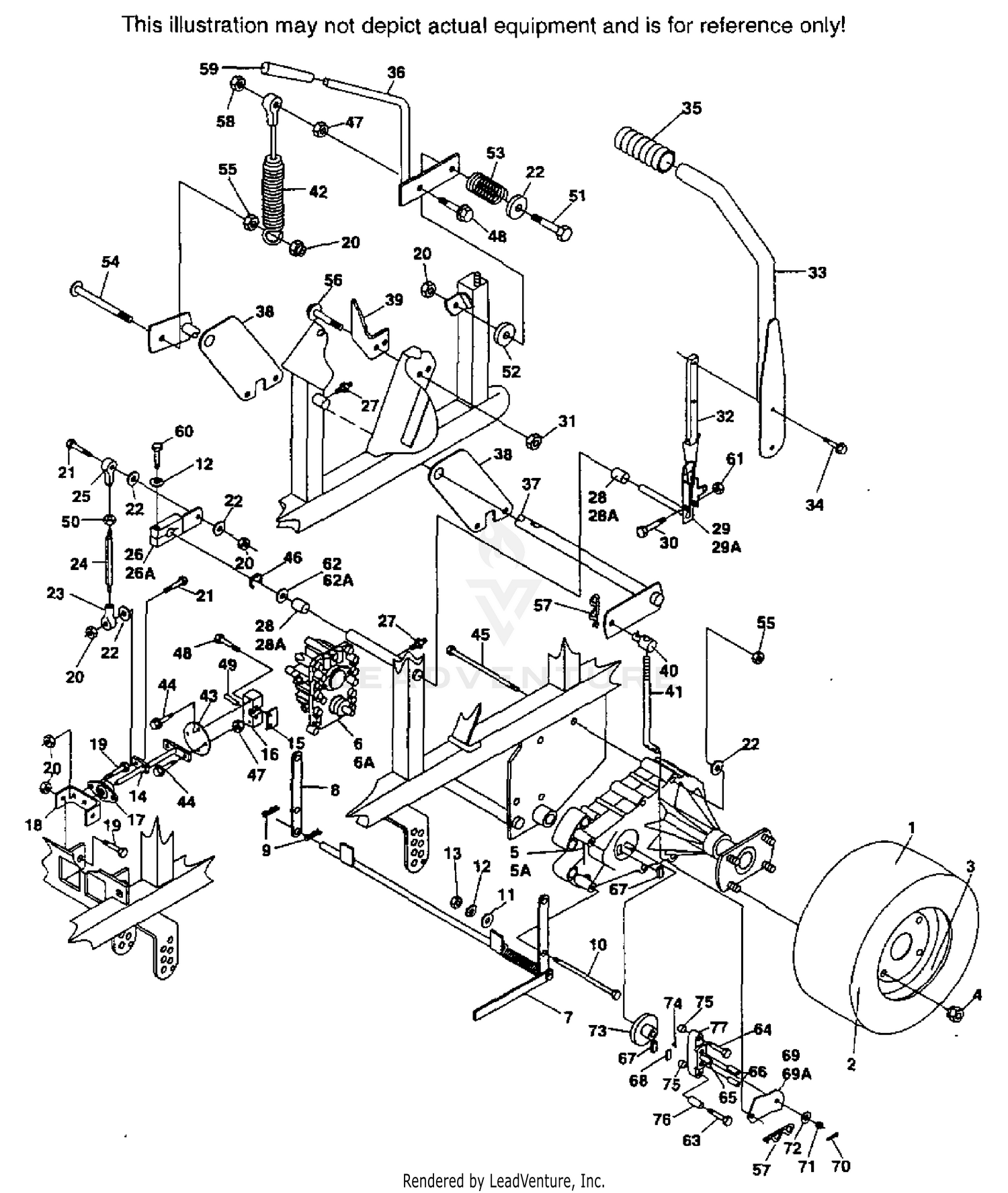

| Ref | Part Number | Description |
|---|
| 1 |
481011 |
DRIVE WHEEL ASSEMBLY, SSZ-42" Price: Call Us |
| 1 |
481503 |
Drive Wheel Assembly This part replaces 48827. Price: Call Us |
| 2 |
481011-02 |
TIRE, 20 X 8.00-8, SSZ-42" Price: Call Us |
| 2 |
481619 |
Tire Only This part replaces 48827-02. Price: Call Us |
| 3 |
481011-03 |
RIM, SSZ-42" Price: Call Us |
| 3 |
481725 |
RIM WELDMENT This part replaces 48827-03. Price: Call Us |
| 4 |
04028-01 |
LUG NUT, 1/2-20 Price: Call Us |
| 5 |
48782 |
AXLE, LH Price: Call Us |
| 5A |
48783 |
AXLE, RH Price: Call Us |
| 6 |
48784 |
PUMP, LH Price: Call Us |
| 6A |
48785 |
PUMP, RH Price: Call Us |
| 7 |
45464 |
DUMP VALVE, LEVER WELDMENT Price: Call Us |
| 8 |
421212 |
MOUNTING BRACKET Price: Call Us |
| 9 |
04062-01 |
HAIR PIN Price: Call Us |
| 10 |
04001-95 |
HEX HEAD BOLT, 5/16-18 X 5" Price: Call Us |
| 14 |
45462 |
PUMP WELDMENT SHAFT Price: Call Us |
| 15 |
421203 |
CLAMP PLATE Price: Call Us |
| 16 |
48829 |
BLOCK, PUMP CONTROL Price: Call Us |
| 17 |
48796 |
BUSHING, SELF ALIGN Price: Call Us |
| 18 |
421204 |
BEARING BRACKET Price: Call Us |
| 22 |
04041-07 |
FLAT WASHER, 3/8" SPECIAL Price: Call Us |
| 23 |
48544 |
BALL JOINT, LH THREAD Price: Call Us |
| 24 |
43246 |
LINK, TURNBUCKLE Price: Call Us |
| 25 |
48464 |
BALL JOINT, RH THREAD Price: Call Us |
| 26 |
45895 |
Lever, Pump Transfer LH This part replaces 45460. Price: Call Us |
| 26A |
45896 |
Lever, Pump Transfer RH This part replaces 45461. Price: Call Us |
| 27 |
48114-04 |
GREASE FITTING Price: Call Us |
| 28 |
48100-06 |
BUSHING, LH Price: Call Us |
| 28A |
48100-05 |
BUSHING, RH Price: Call Us |
| 29 |
45897 |
Control Lever, LH This part replaces 45435. Price: Call Us |
| 29A |
45898 |
Control Lever, RH This part replaces 45436. Price: Call Us |
| 31 |
04019-03 |
NUT, 5/16-18 SERRATED FLANGE HEX HD. Price: Call Us |
| 32 |
421145 |
BAR CONTROL LEVER Price: Call Us |
| 33 |
45437 |
CONTROL HANDLE Price: Call Us |
| 34 |
04017-27 |
CAP SCREW, 3/8-16 X 1", SERR. FLANGE Price: Call Us |
| 35 |
48093 |
GRIP, CONTROL HANDLE Price: Call Us |
| 36 |
45482 |
LEVER WELDMENT, PARKING BRAKE Price: Call Us |
| 37 |
45551 |
CAM WELDMENT, PARKING BRAKE Price: Call Us |
| 38 |
422459 |
Plate, Parking Brake This part replaces 421262. Price: Call Us |
| 39 |
421266 |
LATCH, BRAKE Price: Call Us |
| 40 |
43256 |
SWIVEL JOINT Price: Call Us |
| 41 |
44080 |
ROD, BRAKE Price: Call Us |
| 42 |
48840 |
CABLE ASSEMBLY, PARKING BRAKE Price: Call Us |
| 43 |
422273 |
Plate, Coupler This part replaces 421238. Price: Call Us |
| 44 |
04017-05 |
CAP SCREW, 1/4-20 X 3/4" SERR. FLANGE Price: Call Us |
| 46 |
04050-02 |
RETAINING RING 3/4" EXTERNAL "E" Price: Call Us |
| 47 |
04019-02 |
NUT, 1/4-20 SERR. FLANGE Price: Call Us |
| 48 |
04017-07 |
CAP SCREW, 1/4-20 X 1-1/4" SERR. FLANGE Price: Call Us |
| 49 |
04060-06 |
ROLL PIN, 3/16 X 3/4" Price: Call Us |
| 52 |
04041-12 |
FLAT WASHER, 3/8 X 1-1/2" X 16 GA. Price: Call Us |
| 53 |
48050 |
SPRING, BRAKE LEVER Price: Call Us |
| 55 |
04019-04 |
NUT, 3/8-16 SERR. FLANGE Price: Call Us |
| 56 |
04017-16 |
CAP SCREW, 5/16-18 X 3/4" SERR. FLANGE Price: Call Us |
| 57 |
04062-02 |
HAIR PIN, 1/16" DIAMETER Price: Call Us |
| 59 |
48342 |
GRIP, PARKING BRAKE Price: Call Us |
| 61 |
04021-10 |
ELASTIC STOP NUT, 5/16-18 Price: Call Us |
| 62 |
04041-08 |
FLAT WASHER, 3/4" Price: Call Us |
