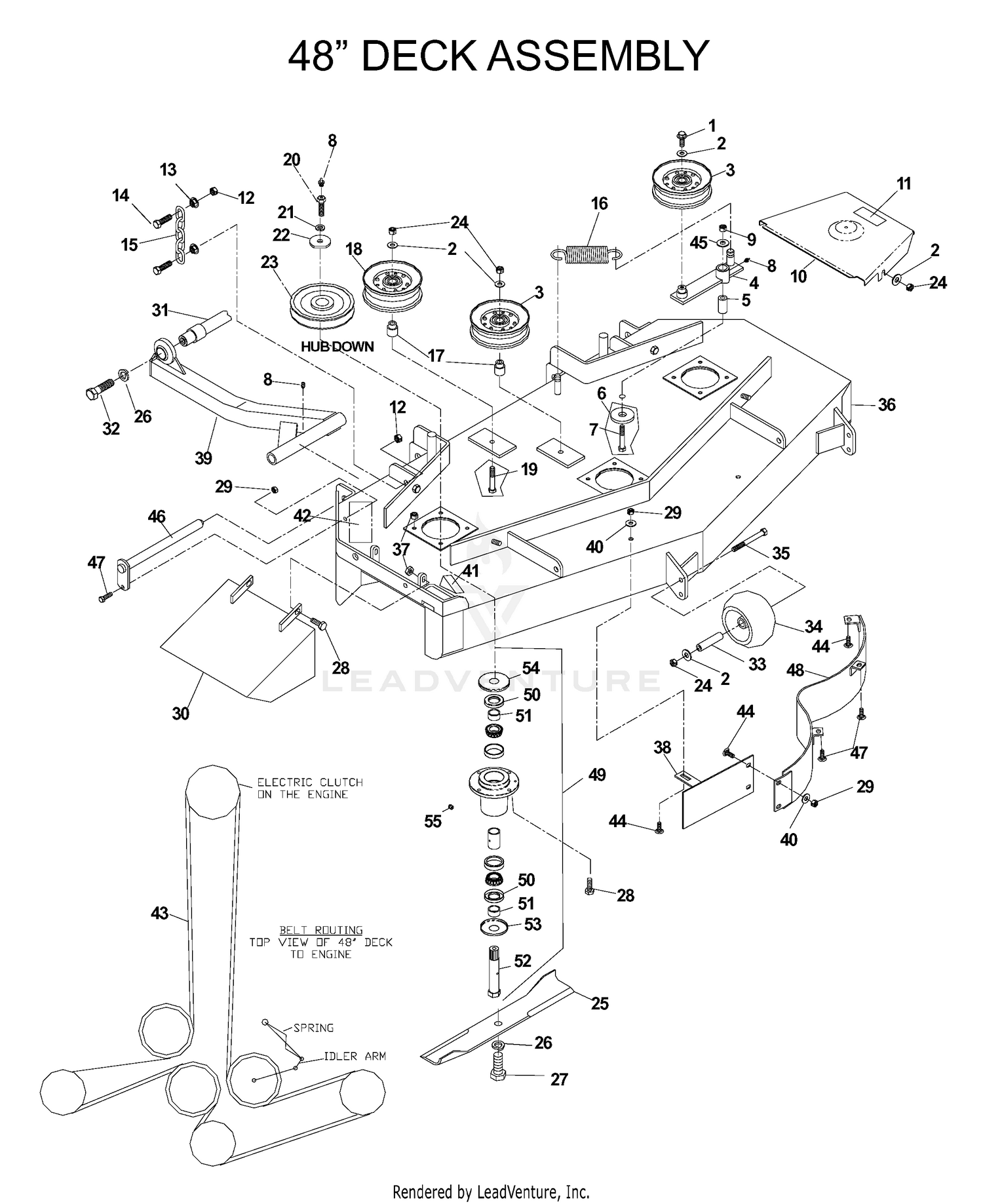

| Ref | Part Number | Description |
|---|
| 1 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 1 |
596583101 |
Screws This part replaces 539990582. Price: $3.99 |
| 2 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 2 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 3 |
136-3375 |
NO.1 LIFTARM ASM This part replaces 108-4032. Price: $856.35 |
| 3 |
539103257 |
IDLER PULLEY Price: $49.99 |
| 4 |
131-4201 |
PIN-PIVOT Price: $20.50 |
| 4 |
539103230 |
IDLER ARM Price: $159.99 |
| 5 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 5 |
539103427 |
PIVOT BUSHING Price: $7.99 |
| 6 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 6 |
596437501 |
Washers This part replaces 539102243. Price: $8.99 |
| 7 |
328-7 |
SCREW-HH Price: $4.00 |
| 7 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 8 |
127-6429 |
LIFT CYLINDER ASM Price: $710.40 |
| 8 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 9 |
127-6427 |
LIFT CYLINDER ASM Price: $652.96 |
| 9 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 10 |
539108904 |
LT 48 SHIELD, ORG Price: $44.99 |
| 10 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 11 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 11 |
539102892 |
DECAL, NO STEP Price: $0.64 |
| 12 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 12 |
539990839 |
NUT 7/16C CENTERLOCK Price: $2.99 |
| 13 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 13 |
596577901 |
Nuts This part replaces 539102582. Price: $2.99 |
| 14 |
125-1906 |
PIN-CYLINDER Price: $27.84 |
| 14 |
594944601 |
Bolts This part replaces 539101175. Price: $2.99 |
| 15 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 15 |
594722002 |
LIFT This part replaces 539102641. Price: $4.99 |
| 16 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 16 |
539103256 |
SPRING Price: $9.99 |
| 17 |
105-3987-03 |
PLATE-SKID Price: $42.52 |
| 17 |
539103295 |
IDLER BUSHING Price: $12.99 |
| 18 |
136-3377 |
NO.4 LIFTARM ASM This part replaces 108-4033. Price: $866.36 |
| 18 |
539103258 |
IDLER PULLEY (TALL) Price: $44.99 |
| 19 |
323-7 |
SCREW-HH Price: $0.65 |
| 19 |
539102612 |
SCREW 3/8C X 2 3/4 HEX CAP Price: $4.99 |
| 20 |
136-2922 |
SHAFT,PIVOT CARRIER Price: $61.94 |
| 20 |
539112120 |
HCS 7/16-20 GD 8 SPEC This part replaces 539108766. Price: $24.99 |
| 21 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 21 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 22 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 22 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 23 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 23 |
539112141 |
PULLEY 42-48 This part replaces 539107276. Price: $37.99 |
| 24 |
104-5585 |
BRACKET-SWITCH Price: $21.55 |
| 24 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 25 |
106-9288 |
SENSOR-PROXIMITY, FERROUS Price: $126.57 |
| 25 |
539100340 |
BLADE OEM 16 1/4" Price: $22.99 |
| 26 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 26 |
539990333 |
LOCKWASHER 5/8 Price: $2.99 |
| 27 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 27 |
539103299 |
HCS 5/8F X 1 1/4 Price: $5.99 |
| 28 |
104-5689-03 |
BRACKET-SUPPORT, BUMPER Price: $62.97 |
| 28 |
539990627 |
HCS 5/16C X 1 1/4 Price: $3.99 |
| 29 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 29 |
87-3470 |
BUMPER Price: $18.89 |
| 31 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 31 |
539104197 |
STRUT MOUNT WELDMENT Price: $51.99 |
| 32 |
105-9831-03 |
BRACKET-BUMPER, NO. 1 Price: $26.24 |
| 32 |
539104199 |
HCS 5/8C X 2 GR.5 Price: $2.99 |
| 33 |
104-5680-03 |
FRAME-CARRIER, FRONT Price: $1,713.36 |
| 33 |
539102698 |
BUSHING Price: $29.99 |
| 34 |
539102643 |
ANTI-SCALP ROLLER Price: $8.99 |
| 35 |
136-3510 |
CARRIER FRAME ASM This part replaces 115-3453. Price: $664.28 |
| 35 |
539102754 |
HCS 3/8C X 3 1/2 Price: $3.99 |
| 36 |
112-9900-03 |
GUARD-FOOT Price: $82.81 |
| 36 |
539105779 |
DECK W/DECALS 48" Price: $2,799.99 |
| 37 |
323-52 |
SCREW-HH Price: $3.63 |
| 37 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 38 |
539105444 |
CENTER BAFFLE 48" Price: $59.99 |
| 38 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 39 |
105-9823 |
BUSHING-CARRIER Price: $5.52 |
| 39 |
539108350 |
STRUT, RIGHT This part replaces 539104609. Price: $549.99 |
| 40 |
105-9822 |
SPACER Price: $3.16 |
| 40 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 41 |
323-11 |
SCREW-HH Price: $1.08 |
| 41 |
539913010 |
DECAL, CPSC Price: $3.99 |
| 42 |
321-15 |
SCREW-HH Price: $0.61 |
| 42 |
539100344 |
DECAL, DANGER Price: $2.42 |
| 43 |
32128-33 |
NUT-HF Price: $0.25 |
| 43 |
539111949 |
BELT, DECK 48" This part replaces 539103687. Price: $84.99 |
| 44 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 44 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99 |
| 45 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
| 46 |
136-3379 |
NO.5 LIFTARM ASM This part replaces 108-4034. Price: $894.10 |
| 46 |
539102619 |
PIVOT PIN Price: $32.99 |
| 47 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 48 |
539105448 |
MAIN BAFFLE - 48" DECK BLK Price: $299.99 |
| 49 |
966956001 |
KIT, HSG ASM - 42/48 This part replaces 539108772. Price: $169.99 |
| 50 |
539108754 |
SHAFT SEAL Price: $6.99 |
| 51 |
539108758 |
SPACER Price: $1.55 |
| 52 |
539108759 |
SPLINED SHAFT - 42/48" Price: $99.99 |
| 53 |
539108449 |
BOTTOM DUST CAP Price: $3.99 |
| 54 |
539108450 |
TOP DUST CAP Price: $4.99 |
| 539104621 |
539108351 |
STRUT, LEFT This part replaces 539104621. Price: $139.99 |
| 539108902 |
539108902 |
RT 48 SHIELD, ORG Price: $24.99 |
