| Ref | Part Number | Description |
|---|
| 1 |
165892 |

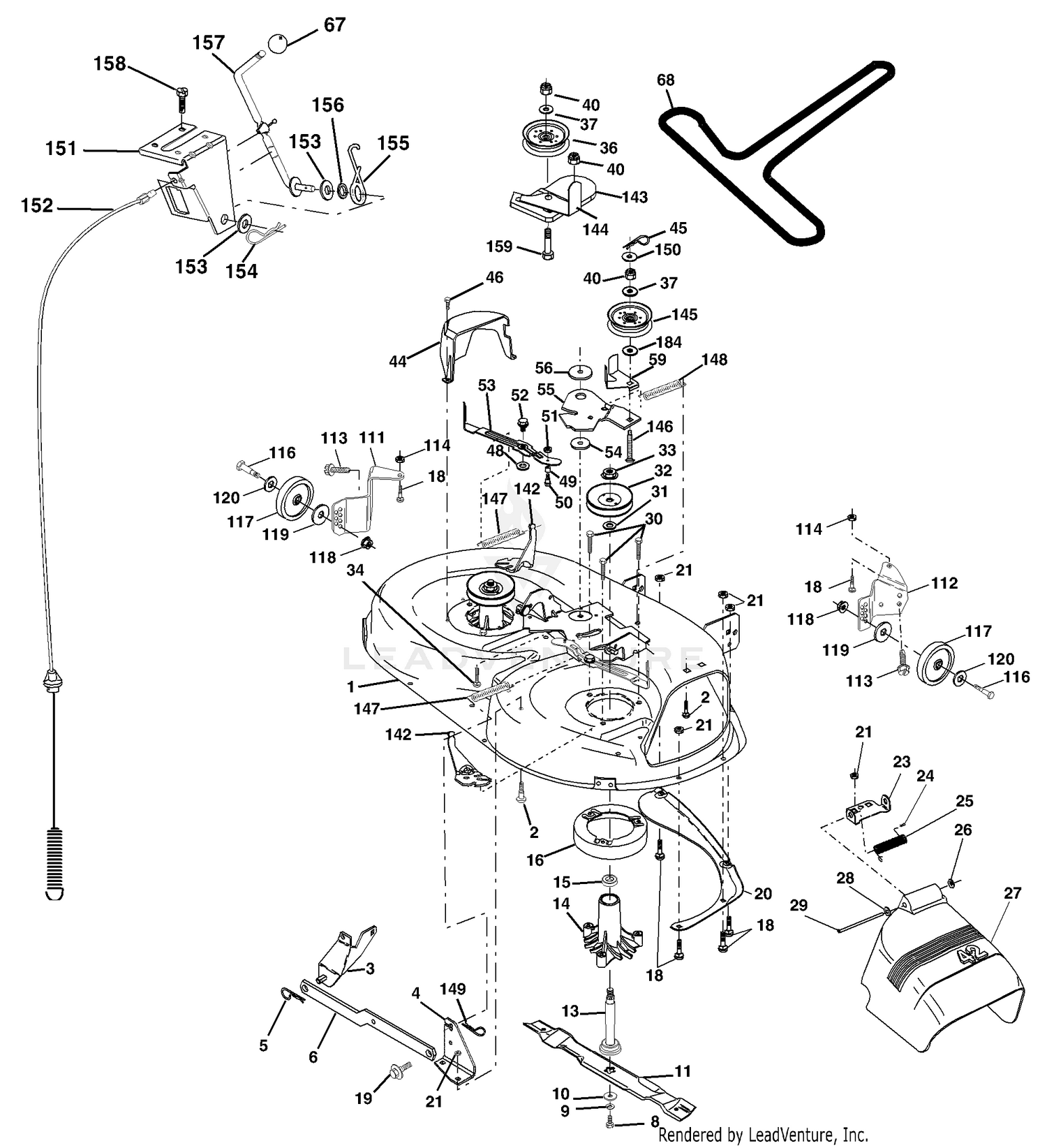

Mower Deck Assembly, 42" Price: Call Us |
| 1 |
98-9321 |
RING-KEY Price: $1.80 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 2 |
98-9316 |
LATCH-HOOD Price: $61.25 |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 3 |
98-9315 |
LATCH-LOCKING Price: $117.46 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 4 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 5 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 7 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 8 |
850857 |
Bolt 3/8-24 x 25 Grade 8 patched Price: Call Us |
| 8 |
98-9746 |
HOOD ASM Price: $1,782.58 |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 10 |
321-4 |
SCREW-HH Price: $0.99 |
| 11 |
98-9314 |
GROMMET Price: $15.98 |
| 12 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 13 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
75-0570 |
CABLE-HOOD Price: $16.66 |
| 16 |
174493 |
Stripper, Mower Deck Price: Call Us |
| 16 |
98-4573-03 |
SCREEN-HOOD, REAR Price: $74.71 |
| 17 |
106-7062 |
DECAL Price: $52.78 |
| 18 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
321-39 |
SCREW-HH Price: $0.42 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 20 |
66-6140 |
DECAL Price: $25.48 |
| 21 |
73680500 |
Nut Price: Call Us |
| 21 |
92-5751 |
DECAL-HOOD, LH Price: $34.66 |
| 22 |
92-5752 |
DECAL-HOOD, RH Price: $34.66 |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 23 |
63-6900-01 |
LH HOOD HINGE PLATE ASM Price: $23.15 |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 24 |
63-6890-01 |
RH HOOD HINGE PLATE ASM Price: $12.36 |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 25 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 26 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 27 |
72-3560 |
DECAL Price: $12.52 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Gauge Price: Call Us |
| 28 |
93-0081 |
STRIP-SEAL Price: $73.83 |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
173984 |
Screw Thdrol Hex Price: Call Us |
| 31 |
129963 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
153535 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 34 |
72110614 |
Bolt Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
19131316 |
Washer 13/32 x 13/16 x 16 Gauge Price: Call Us |
| 40 |
73680600 |
Nut Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 49 |
174284 |
Roller Assembly, Cam Follower Price: Call Us |
| 50 |
131340 |
Bolt, Shoulder #10-24 Grade 5 Price: Call Us |
| 51 |
69180 |
Locknut Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 UNC Price: Call Us |
| 53 |
131845 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 67 |
106932X |
Knob Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 111 |
179292 |
Bracket, Gauge, Wheel LH Price: Call Us |
| 112 |
179293 |
Bracket, Gauge, Wheel RH Price: Call Us |
| 113 |
17060510 |
Screw Tapping 3/8-16 x .625 Price: Call Us |
| 114 |
73510500 |
Nut, Keps 5/16 - 18 UNC Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
105455X |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 120 |
19171512 |
Washer 17/32 x 15/16 x 12 Ga. Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
158634 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
165888 |
Pulley Idler Flat Price: Call Us |
| 146 |
171977 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 151 |
169670 |
Bracket Clutch Cable Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 153 |
169674 |
Washer Flat 3/8" Type B Price: Call Us |
| 154 |
169675 |
Spring Retainer Price: Call Us |
| 155 |
169671 |
Spring Retention LVR CLTCH CAB Price: Call Us |
| 156 |
169672 |
Spacer Clutch Cable Price: Call Us |
| 157 |
169669 |
Rod Clutch Cable 3/8" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 UNC x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer Price: Call Us |
| 134149 |
Blade |
Mulching Std. Price: Call Us 134149 |
| 139775 |
Blade |
Mulching Prem. Price: Call Us 139775 |
