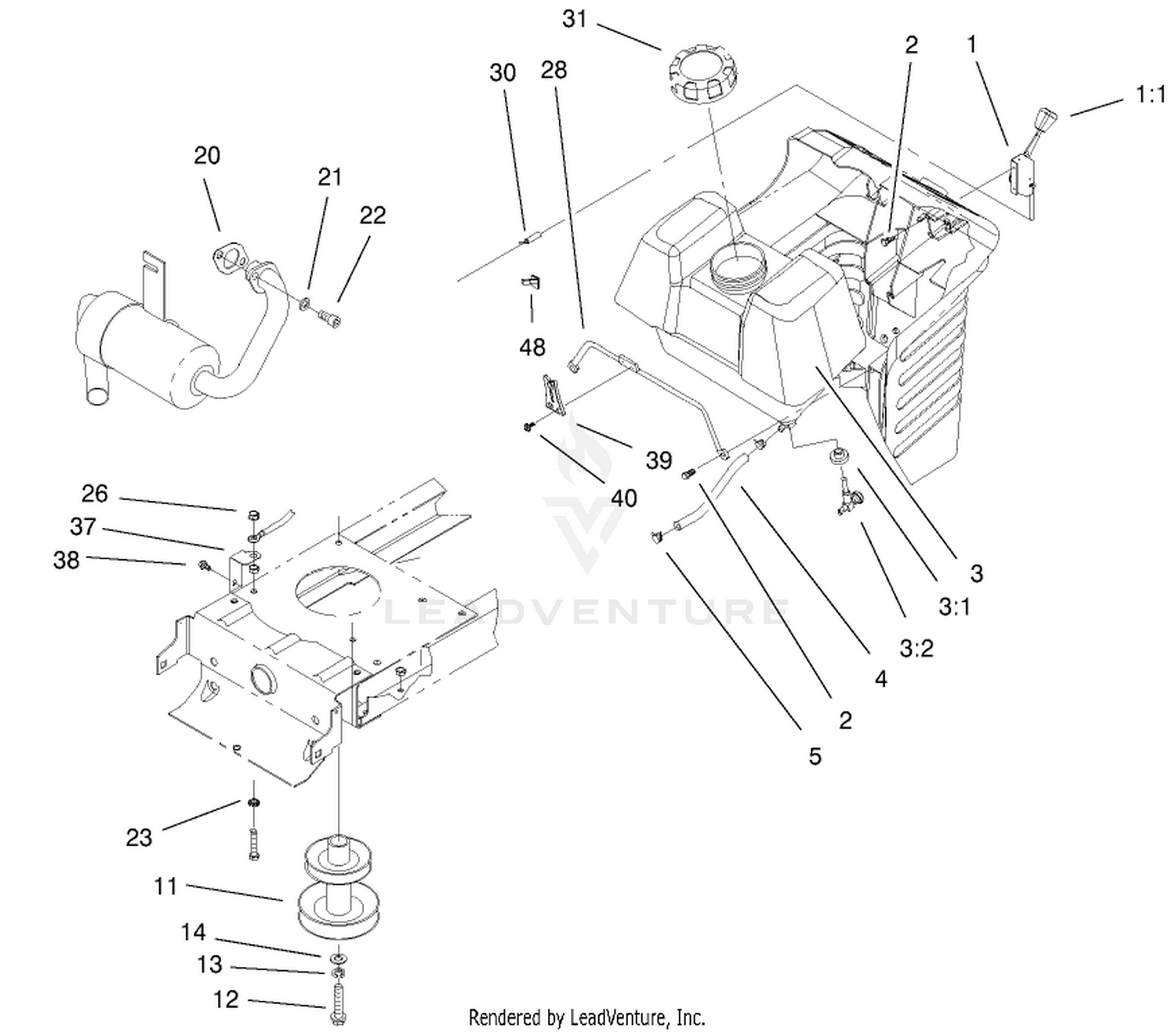

| Ref | Part Number | Description |
|---|
| 1 |
88-4340 |
THROTTLE CONTROL ASM Price: $23.82 |
| 2 |
27-0220 |
SCREW-SPECIAL Price: $7.09 |
| 3 |
88-3880 |
GAS TANK ASM Price: $128.09 |
| 4 |
107-9297 |
HOSE-FUEL This part replaces 47-2963. Price: $7.29 |
| 5 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 11 |
88-5050 |
PULLEY-ENGINE Price: $103.62 |
| 12 |
62-3760 |
SCREW-HH Price: $6.33 |
| 13 |
3253-22 |
WASHER-LOCK Price: $2.09 |
| 14 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 20 |
88-4410 |
GASKET-EXHAUST Price: $10.68 |
| 21 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 22 |
3274-10 |
SCREW-HSH Price: $0.47 |
| 23 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 26 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 28 |
94-1952 |
ROD-TANK, GAS Price: $22.68 |
| 30 |
88-4350 |
THROTTLE CABLE ASM Price: $16.68 |
| 31 |
88-3980 |
GAS CAP ASM Price: $31.99 |
| 37 |
93-3809 |
BRACKET-GROUND Price: $5.65 |
| 38 |
9266714 |
SCREW-HWH Price: $0.80 |
| 39 |
94-1951 |
LATCH-HOOD Price: $4.81 |
| 40 |
32144-112 |
SCREW-HWH Price: $0.99 |
