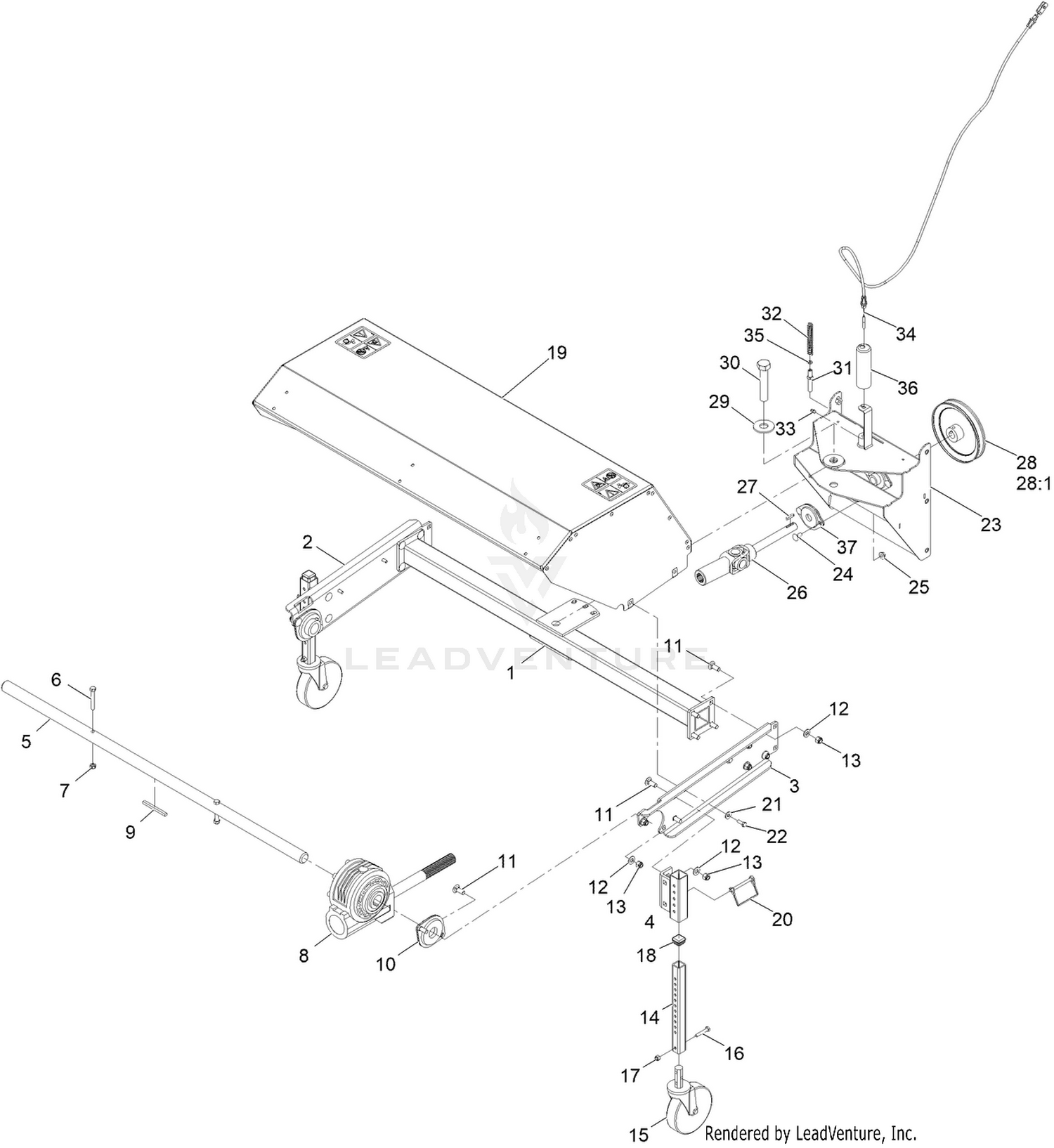

Hood and Frame Assembly
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 144-0338 | FRAME Price: $455.99 |
| 2 | 144-0335 | ARM-RIGHT Price: Call Us |
| 3 | 144-0336 | ARM-LEFT Price: Call Us |
| 4 | 144-0337 | CASTER-BRACKET Price: Call Us |
| 5 | 116-8114 | SHAFT Price: $335.99 |
| 6 | 120-9738 | SCREW-HH Price: $1.39 |
| 7 | 119-4038 | NUT-HEX Price: $2.69 |
| 8 | 116-8115 | GEARBOX-WORM Price: $1,773.99 |
| 9 | 83-2800 | KEY-STRAIGHT Price: $4.79 |
| 10 | 116-8116 | BEARING-FLANGE Price: $157.99 |
| 11 | 139-2590 | SCREW-CARR Price: $1.19 |
| 12 | 115-1166 | WASHER-FLAT Price: $4.19 |
| 13 | 137-3087 | NUT-HEX Price: $1.19 |
| 14 | 116-8223 | TUBE-SQUARE, HEIGHT ADJUS Price: $68.99 |
| 15 | 116-8117 | CASTER-WHEEL Price: $98.99 |
| 16 | 137-3050 | SCREW-HH Price: $2.29 |
| 17 | 137-3088 | NUT-HEX Price: $1.19 |
| 18 | 103-3202 | CAP Price: $1.19 |
| 19 | 144-0340 | HOOD ASM, BLACK W/ DECALS Price: Call Us |
| 20 | 116-8224 | PIN-WIRE, LOCK Price: $17.99 |
| 21 | 120-9646 | WASHER-FLAT Price: $1.99 |
| 22 | 137-3042 | SCREW-HH Price: $1.19 |
| 23 | 139-9942-03 | FRAME-MOUNTING [BLACK] Price: Call Us |
| 24 | 3230-1 | BOLT-CARR Price: $1.49 |
| 25 | 32128-20 | NUT-HF Price: $0.99 |
| 26 | 116-8104 | SHAFT-DRIVE Price: $594.99 |
| 27 | 116-8105 | KEY-ROUND END Price: $35.99 |
| 28 | 116-7930 | PULLEY-IMPELLER Price: $138.99 |
| 29 | 3256-8 | WASHER-FLAT Price: $3.49 |
| 30 | 3216-7 | SCREW-HH Price: $19.99 |
| 31 | 116-8106 | PIN-SWING Price: $68.99 |
| 32 | 116-8107 | SPRING-COMPRESSION Price: $53.99 |
| 33 | 302-19 | FITTING-GREASE Price: $2.19 |
| 34 | 116-7671 | CABLE-ANGLE, BROOM Price: $46.99 |
| 35 | 3217-26 | NUT-HEX Price: $1.59 |
| 36 | 116-8108 | CAP Price: $24.99 |
