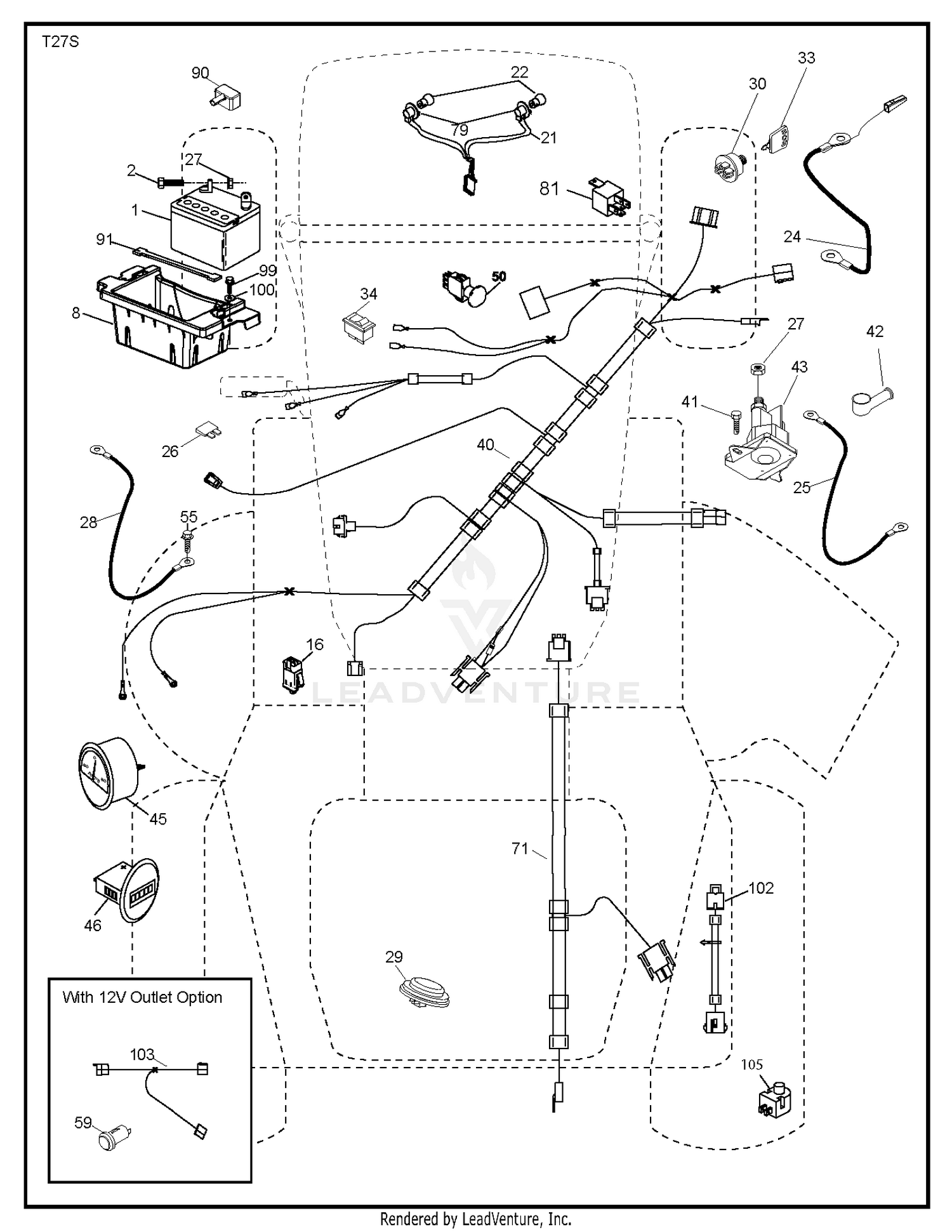

| Ref | Part Number | Description |
|---|
| 1 |
32136-9 |
NUT-HEX, SLOTTED Price: $7.44 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
3272-37 |
PIN-COTTER Price: $0.75 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
18-6320 |
WASHER-STEERING Price: $2.65 |
| 4 |
93-2125-01 |
CASTOR FORK WA This part replaces 93-2125. Price: $557.75 |
| 5 |
5-3934 |
BOLT-CASTER Price: $55.92 |
| 6 |
75-9440 |
HUB ASM Price: $131.34 |
| 7 |
28-3680 |
TIRE Price: $118.18 |
| 8 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
3296-67 |
NUT-LOCK, NI Price: $5.05 |
| 10 |
106-6774 |
JOINT-BALL This part replaces 92-5838. Price: $79.04 |
| 11 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 12 |
32151-104 |
RING-RETAINING, EXTERNAL Price: $4.85 |
| 13 |
132-3778 |
CYLINDER-STEERING This part replaces 93-2122. Price: $786.47 |
| 14 |
93-2270 |
HYD HOSE ASM Price: $91.88 |
| 15 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 16 |
117-9471 |
KIT-SERVICE,GR3250-D STEERING This part replaces 93-2269. Price: $105.67 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
3220-6 |
NUT-JAM Price: $1.25 |
| 18 |
115-9472 |
BEARING-CONE AND SEAL This part replaces 254-70. Price: $22.04 |
| 19 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 20 |
74-3730 |
SPACER-SPINDLE, REAR Price: $5.06 |
| 21 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
93-2234 |
DISCONTINUED Price: Call Us |
| 23 |
217-60 |
RIM Price: $110.16 |
| 24 |
253-111 |
SEAL-OIL Price: $6.87 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
254-78 |
BEARING-CONE Price: $12.22 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 26 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
302-55 |
FITTING-GREASE Price: $3.09 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
237-78 |
O-RING Price: $3.85 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
237-21 |
O-RING Price: $0.70 |
| 32 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 33 |
92-5753 |
CLAMP-HOSE Price: $2.10 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532425675 |
HARNESS.IGN.ELE.RELAY.RND.TEX Price: $54.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 45 |
529910801 |
AMMETER This part replaces 532425270. Price: $27.99 |
| 46 |
529910701 |
HOUR METER This part replaces 532425271. Price: $69.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 81 |
532409615 |
RELAY HARNESS.SEALED Price: $22.99 |
| 90 |
532400724 |
COVER.TERMINAL.BATTERY Price: $3.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 103 |
532421747 |
HARNESS.PIGTAIL.12V.OUTLET. Price: $12.99 |
