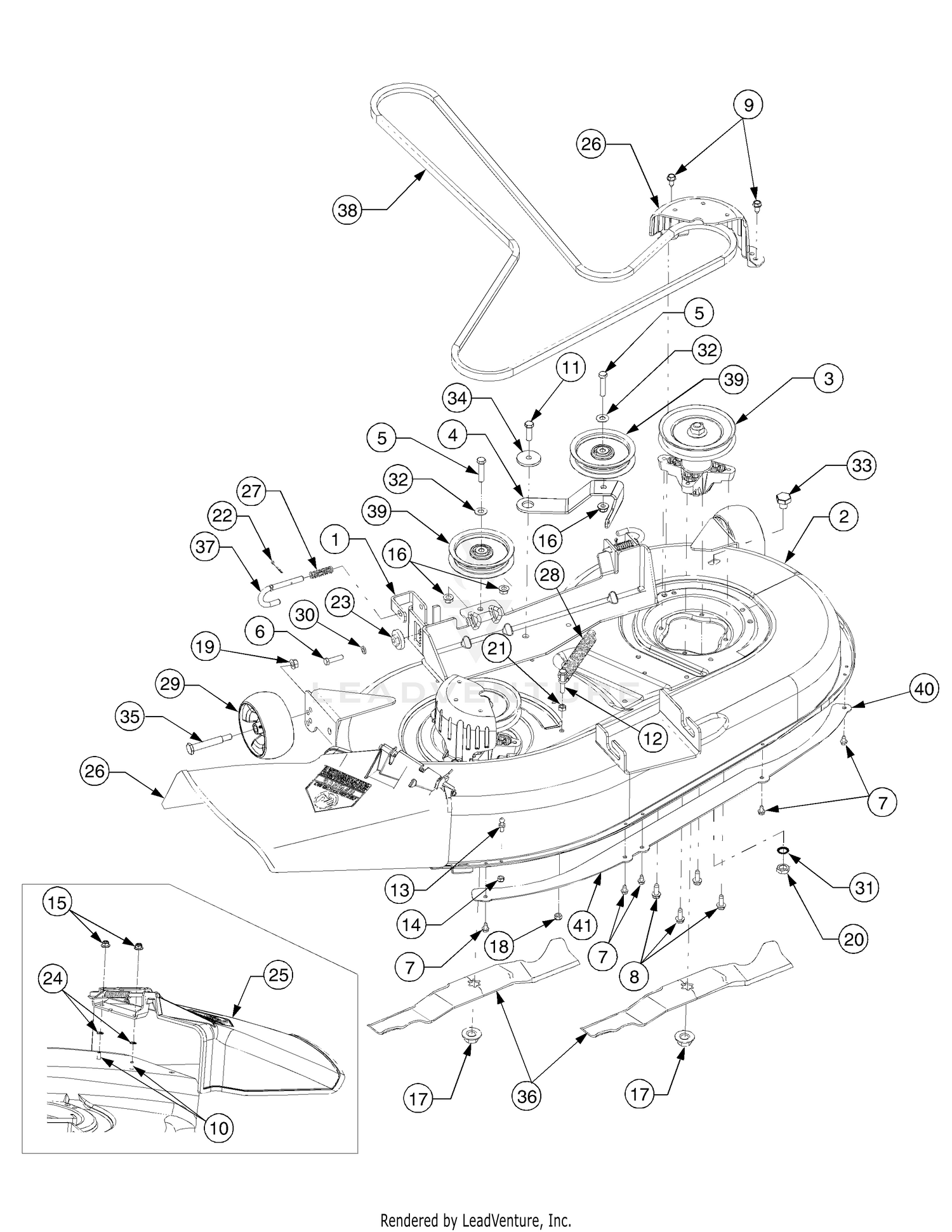

| Ref | Part Number | Description |
|---|
| 1 |
603-04156 |
Bracket, Deck Lift Price: $34.75 |
| 2 |
777S30503 |
Graphic, Danger Price: $10.32 |
| 2 |
777S32599 |
Graphic, Danger Not Available Price: |
| 2 |
903-04335C |
Deck Housing This part replaces 603-04335. Price: $583.58 |
| 2 |
977I22281 |
LABEL This part replaces 777I22281. Price: $15.31 |
| 3 |
756-1188 |
Pulley Price: $34.20 |
| 3 |
918-04197B |
PULLEY & SPINDLE ASSEMBLY 5.75" W/O FTG This part replaces 618-0427. Price: $138.69 |
| 4 |
703-05824C-0691 |
Idler Arm This part replaces 703-05824. Price: $36.03 |
| 5 |
710-0347 |
Screw, Hex Cap, 3/8-16 x 1.75 GR5 Price: $4.39 |
| 6 |
710-0528 |
Screw, Hex Cap, 5/16-18 x 1.25 GR5 Price: $3.90 |
| 7 |
710-0599 |
Screw, Hex Wash. Hd. Tapp 1/4-20 x .5 Price: $3.86 |
| 8 |
710-0650 |
Screw, Hex Wash. Hd. Tapp 5/16-18 x .875 Price: $3.71 |
| 9 |
710-0726 |
Screw, Hex Wash. Hd. Tapp 5/16-12 x .75 Price: $3.82 |
| 10 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 11 |
710-3005 |
Screw, Hex Cap, 3/8-16 x 1.25 GR5 Price: $3.61 |
| 12 |
710-3180 |
Screw, Hex Cap, 5/16-18 x 1.75 GR5 Price: $4.93 |
| 13 |
911-04069 |
Grass-catcher Pin This part replaces 711-04069. Price: $7.81 |
| 14 |
712-0324 |
Nut, Hex Insert Lock, 1/4-20 GR8 Price: $3.38 |
| 15 |
712-04064 |
Nut, Hx Insert Flange Lck, 1/4-20 GR5 Price: $3.64 |
| 16 |
712-04065 |
Nut, Hx Insert Flange Lck, 3/8-16 GrF Price: $3.68 |
| 17 |
712-0417A |
HEX NUT Price: $6.50 |
| 18 |
712-0429 |
Nut, Hex Insert Lock, 5/16-18 GR5 .. Price: $3.56 |
| 19 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 20 |
712-0641 |
Nut, Hex, M16-1.5 Price: $5.58 |
| 21 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 22 |
714-0470 |
Pin, Cotter, 1/8 x 1.25 Price: $3.90 |
| 23 |
917-04074 |
Adjustment, Deck, Gear This part replaces 717-1553B. Price: $11.45 |
| 24 |
726-0233 |
Nut, Push, .25 x .5 Price: $3.93 |
| 25 |
631-05229 |
CHUTE ASSEMBLY This part replaces 731-1032B. Price: $71.37 |
| 25 |
977S30145 |
Danger Label This part replaces 777S30284. Price: $8.93 |
| 26 |
731-2231B |
Cover, Belt Price: $40.56 |
| 27 |
932-0306A |
COMPRESSION SPRING This part replaces 732-0306. Price: $7.69 |
| 28 |
732-0459C |
Spring, Extension, .94 Dia x 6.74 This part replaces 732-0459. Price: $16.05 |
| 29 |
734-04155 |
Wheel, Deck Ball, 5.0 Price: $19.04 |
| 30 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 31 |
736-0760 |
Washer, Lock, Price: $3.86 |
| 32 |
736-3072 |
Washer, Flat, .38 x .93 x .11 HT Price: $4.11 |
| 33 |
738-04146 |
Plug, Screw, M16 x 1.5 Price: $8.02 |
| 34 |
738-04162C |
Shoulder Spacer, .8840 x .190 This part replaces 738-04162A. Price: $12.76 |
| 35 |
938-3056 |
Shoulder Screw, 1/2 Dia x 2.50 This part replaces 738-3056. Price: $8.53 |
| 36 |
942-0616A |
Blade, 3 in 1, 21.23 Price: $29.15 |
| 37 |
747-1116 |
Rod, Deck Hanger Price: $11.17 |
| 38 |
954-04045 |
Deck Spindle Belt This part replaces 754-04045. Price: $52.99 |
| 39 |
753-08171 |
Pulley Kit, Idler, 4.25"Dia This part replaces 756-04129. Price: $33.06 |
