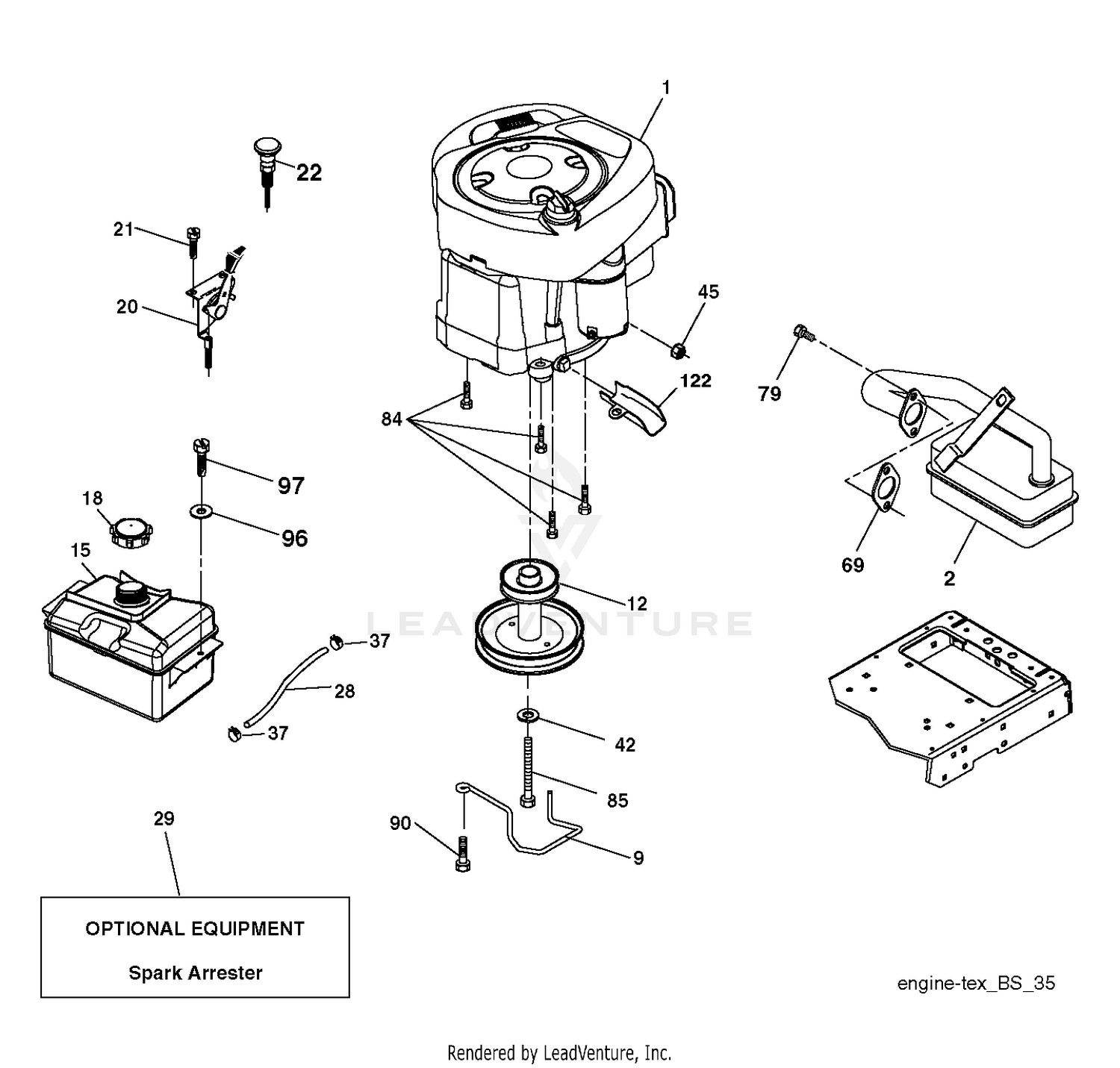

| Ref | Part Number | Description |
|---|
| 1 |
TBD |
Price: Call Us |
| 2 |
532137352 |
MUFFLER Price: $31.99 |
| 9 |
532194320 |
KEEPER.BELT.ENGINE.4.2 Price: $8.99 |
| 10 |
108-4417 |
WHEEL BEARING CASE ASM Price: $209.74 |
| 12 |
532405471 |
PULLY ENGINE Price: $64.99 |
| 15 |
581289901 |
FUEL.TANK.ASM.1.5.GAL.NON-EPA This part replaces 532407545. Price: $54.99 |
| 18 |
581075501 |
CAP.FUEL.TANK.SS/SNO.EPA.DOME This part replaces 532430220. Price: $14.99 |
| 20 |
108-7066 |
BOLT-CASE, BEARING Price: $11.70 |
| 20 |
532411724 |
Price: $29.99 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS THREAD Price: $2.99 |
| 22 |
532411725 |
Price: $11.99 |
| 28 |
532137040 |
LINE.FUEL.20 Price: $3.99 |
| 29 |
532137180 |
ARRESTER SPARK (OPTIONAL) Price: $128.99 |
| 30 |
108-7067 |
METAL-CRANKSHAFT (STD) Price: $62.26 |
| 30 |
108-7068 |
METAL-CRANKSHAFT (-0.20MM) Price: $55.34 |
| 30 |
108-7069 |
METAL-CRANKSHAFT (-0.40MM) Price: $29.06 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 40 |
98-7435 |
GASKET-CASE, BEARING This part replaces 108-7070. Price: $19.37 |
| 42 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 45 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 50 |
117-8843 |
COVER-CASE, BEARING This part replaces 108-7071. Price: $87.44 |
| 60 |
98-7437 |
GASKET-CASE COVER, BEARING Price: $11.13 |
| 69 |
532272293 |
Gasket Eng 1 313 Id Tin Plated This part replaces 532165291. Price: $7.99 |
| 70 |
98-7438 |
BOLT Price: $1.15 |
| 79 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 80 |
98-7439 |
BOLT Price: $1.00 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
532150280 |
SUB= 150280 This part replaces 532173937. Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 90 |
98-7440 |
SEAL-OIL This part replaces 108-7072. Price: $61.88 |
| 96 |
819091416 |
WASHER Price: $3.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
| 100 |
110-0013 |
MAIN BEARING CASE ASM Price: $85.51 |
| 110 |
108-7066 |
BOLT-CASE, BEARING Price: $11.70 |
| 120 |
108-7067 |
METAL-CRANKSHAFT (STD) Price: $62.26 |
| 120 |
108-7068 |
METAL-CRANKSHAFT (-0.20MM) Price: $55.34 |
| 120 |
108-7069 |
METAL-CRANKSHAFT (-0.40MM) Price: $29.06 |
| 130 |
110-0014 |
MAIN BEARING CASE ASM Price: $237.48 |
| 140 |
108-7066 |
BOLT-CASE, BEARING Price: $11.70 |
| 150 |
108-7067 |
METAL-CRANKSHAFT (STD) Price: $62.26 |
| 150 |
108-7068 |
METAL-CRANKSHAFT (-0.20MM) Price: $55.34 |
| 150 |
108-7069 |
METAL-CRANKSHAFT (-0.40MM) Price: $29.06 |
| 160 |
110-0015 |
MAIN BEARING CASE ASM Price: $172.14 |
| 170 |
108-7066 |
BOLT-CASE, BEARING Price: $11.70 |
| 180 |
108-7067 |
METAL-CRANKSHAFT (STD) Price: $62.26 |
| 180 |
108-7068 |
METAL-CRANKSHAFT (-0.20MM) Price: $55.34 |
| 180 |
108-7069 |
METAL-CRANKSHAFT (-0.40MM) Price: $29.06 |
