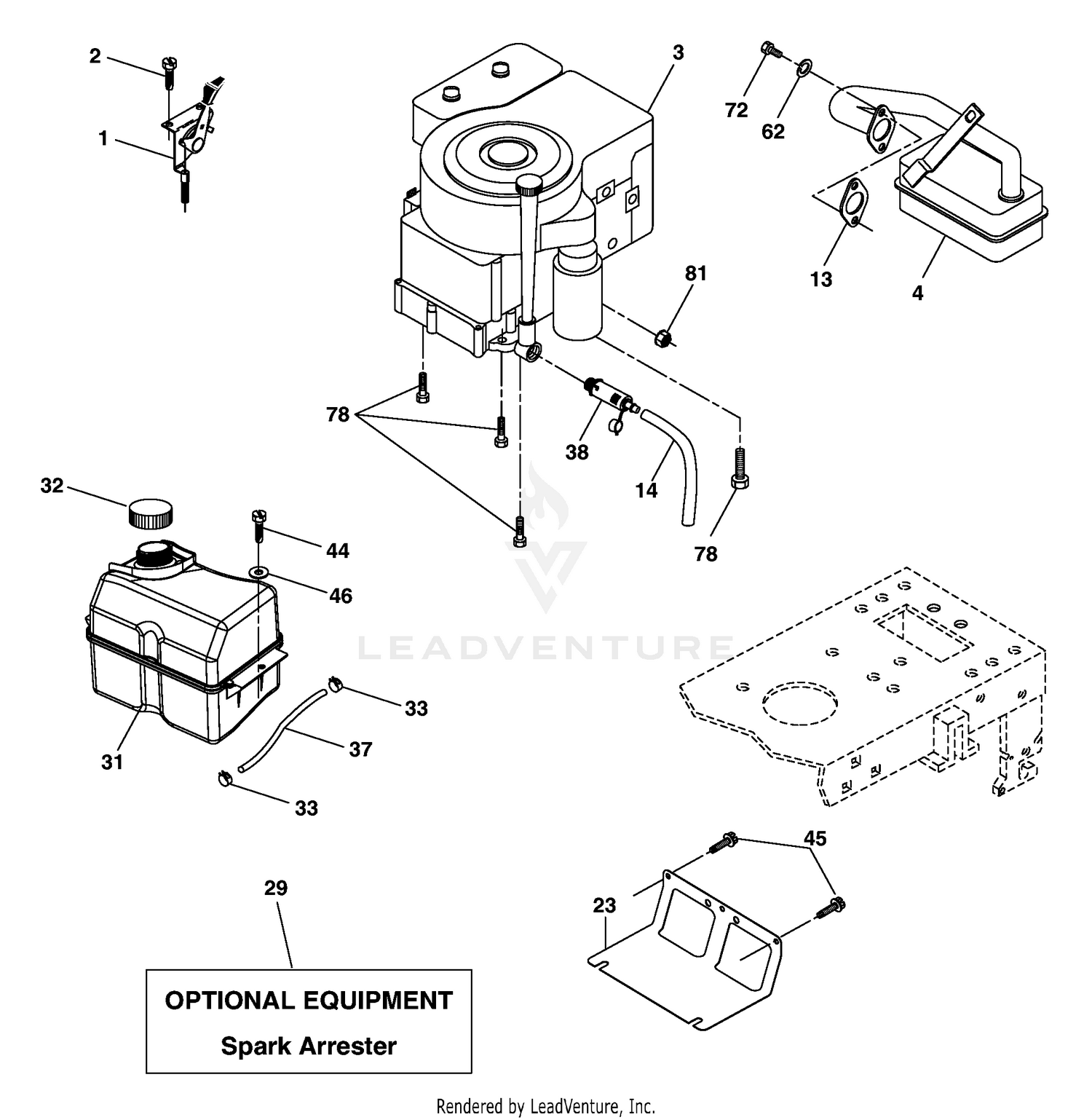

| Ref | Part Number | Description |
|---|
| 1 |
170551 |
Control, Throttle Price: Call Us |
| 1 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 2 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 2 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 3 |
105-9201 |
DISCONTINUED Price: Call Us |
| 4 |
131-4201 |
PIN-PIVOT This part replaces 104-5525. Price: $20.50 |
| 4 |
137352 |
Muffler Price: Call Us |
| 5 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 6 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 7 |
328-7 |
SCREW-HH Price: $4.00 |
| 8 |
127-6429 |
LIFT CYLINDER ASM This part replaces 104-5527. Price: $710.40 |
| 9 |
127-6427 |
LIFT CYLINDER ASM This part replaces 104-5528. Price: $652.96 |
| 10 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 11 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 12 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 13 |
165291 |
Muffler Gasket Price: Call Us |
| 13 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 14 |
148456 |
Tube Oil Drain Price: Call Us |
| 14 |
83-6780 |
PIN-CYLINDER Price: $130.51 |
| 15 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 16 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 17 |
105-3987-03 |
PLATE-SKID Price: $42.52 |
| 18 |
108-4038 |
NO. 4 LIFTARM ASM This part replaces 105-9204. Price: $849.16 |
| 18 |
108-4039 |
NO. 5 LIFTARM ASM This part replaces 105-9205. Price: $845.70 |
| 19 |
323-6 |
SCREW-HH Price: $0.66 |
| 20 |
95-8979 |
SHAFT Price: $62.44 |
| 21 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 22 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 23 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 23 |
169837 |
Shield, Browning/Debris Guard Price: Call Us |
| 24 |
104-5585 |
BRACKET-SWITCH Price: $21.55 |
| 25 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 26 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 27 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 28 |
104-5689-03 |
BRACKET-SUPPORT, BUMPER Price: $62.97 |
| 29 |
137180 |
Arrester, Spark Price: Call Us |
| 29 |
87-3470 |
BUMPER Price: $18.89 |
| 31 |
185534 |
Tank, Fuel Price: Call Us |
| 31 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 32 |
105-9831-01 |
BRACKET-BUMPER, NO. 1 Price: $26.14 |
| 32 |
140527 |
Cap, Fuel Price: Call Us |
| 33 |
104-5680-03 |
FRAME-CARRIER, FRONT Price: $1,713.36 |
| 33 |
123487X |
Clamp, Hose Blk Price: Call Us |
| 35 |
136-3510 |
CARRIER FRAME ASM This part replaces 104-5656. Price: $664.28 |
| 36 |
107-7803-03 |
FOOT GUARD ASM This part replaces 106-2653-01. Price: $86.02 |
| 37 |
137040 |
Line, Fuel Price: Call Us |
| 37 |
3234-18 |
SCREW-HHF Price: $0.87 |
| 38 |
181654 |
Plug Drain Oil Easy Price: Call Us |
| 38 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 39 |
105-9823 |
BUSHING-CARRIER Price: $5.52 |
| 40 |
105-9822 |
SPACER Price: $3.16 |
| 40 |
124028X |
Bushing Snap Price: Call Us |
| 41 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 44 |
17670412 |
Screw Hex Wsh Thdrol 1/4-20 x 3/4 Price: Call Us |
| 45 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 46 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 62 |
10010500 |
Washer Split Price: Call Us |
| 72 |
71070512 |
Screw Hex Hd Cap 5/16-18 x 3/4 Price: Call Us |
| 78 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
