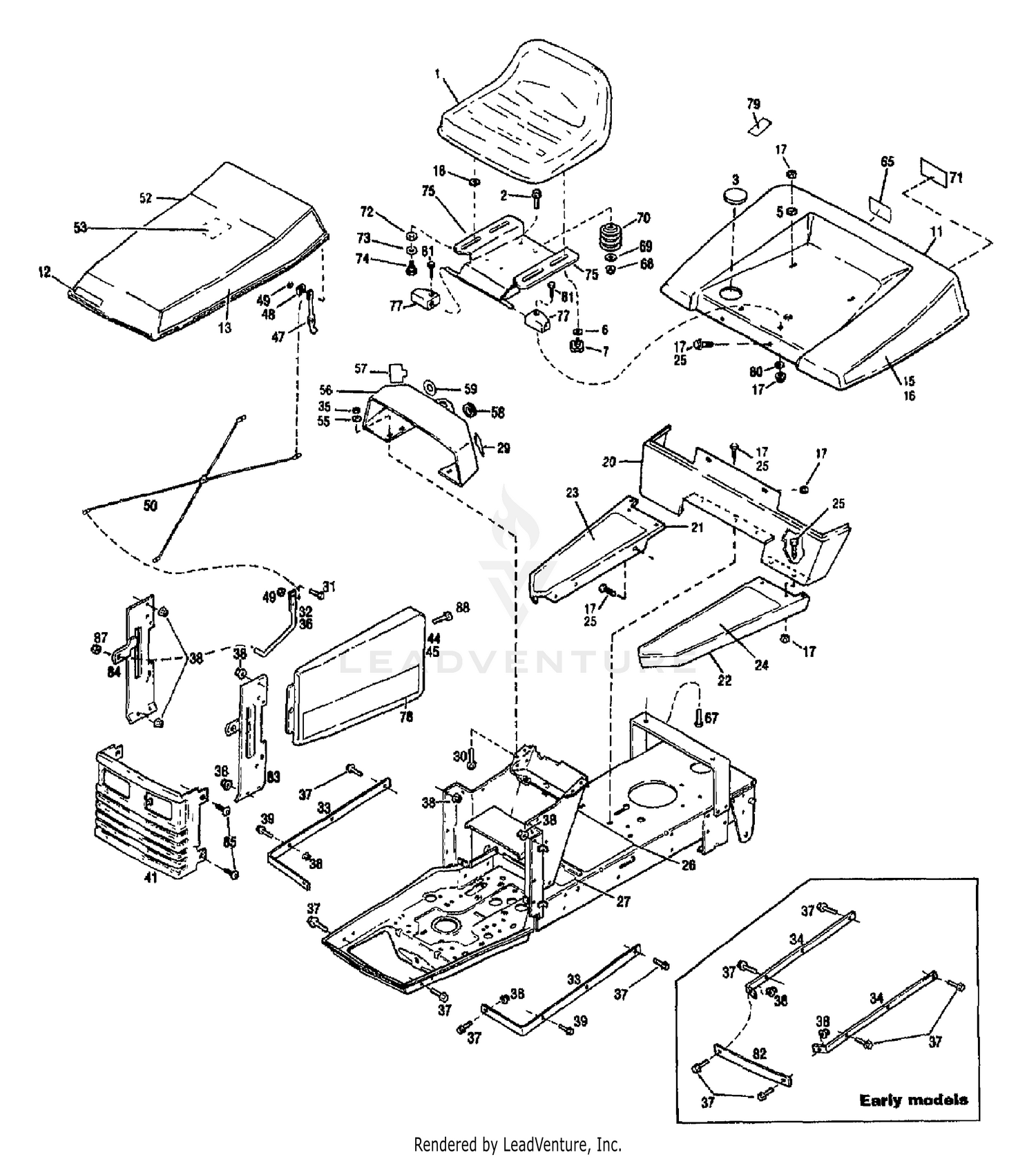

| Ref | Part Number | Description |
|---|
| 2 |
710-04042 |
Hex Flange Screw, 3/8-16 This part replaces 1186347. Price: $4.05 |
| 3 |
1755790 |
PLUG Price: Call Us |
| 5 |
736-0362 |
FLAT WASHER .322 ID X 1.25 X .060 This part replaces 1713233. Price: $3.93 |
| 7 |
1734269 |
KNOB-ADJUS Not Available Price: |
| 11 |
1761031010 |
FENDER-REA Not Available Price: |
| 12 |
1759101 |
DECAL Not Available Price: |
| 13 |
1759100 |
LABEL-HOOD Not Available Price: |
| 15 |
1757944 |
DECAL (RH) FENDER-RE Not Available Price: |
| 16 |
1757945 |
DECAL (LH) FENDER-RE Not Available Price: |
| 17 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 18 |
736-0133 |
Washer, Flat, .411 x 1.25 x .100 This part replaces 1893445. Price: $4.67 |
| 20 |
1743987010 |
RUNNING BD Not Available Price: |
| 21 |
1751805010 |
RUNNING BO Not Available Price: |
| 22 |
1751803010 |
RUNNING BO Not Available Price: |
| 23 |
1742665 |
FOOT PAD R Not Available Price: |
| 24 |
1755729 |
FOOT PAD L Not Available Price: |
| 25 |
710-04048 |
SCREW 5/16-18 x 1 GR5 This part replaces 1186330. Price: $4.19 |
| 26 |
1755944 |
FOOT PAD Not Available Price: |
| 27 |
1764351 |
DECAL-OPERATING INST Price: Call Us |
| 29 |
1761578 |
DECAL-CHOKE Not Available Price: |
| 31 |
N/A |
UNKNOWN |
| 32 |
1762861 |
LINK-HINGE Not Available Price: |
| 33 |
1764587010 |
STRAP Not Available Price: |
| 34 |
1762860010 |
ASSM-HINGE STRAP Price: Call Us |
| 36 |
1763048 |
LINK-HINGE Not Available Price: |
| 37 |
1186309 |
SCREW-FLANGE Not Available Price: |
| 38 |
1186389 |
NUT-HF/LK 1/4-20 ZP Price: $3.05 |
| 39 |
710-0599 |
SCREW 1/4-20 X.500 This part replaces 1186308. Price: $3.86 |
| 41 |
1762875 |
GRILLE Price: Call Us |
| 44 |
1762858010 |
COVER-SIDE Not Available Price: |
| 45 |
1762859010 |
COVER-SIDE Not Available Price: |
| 47 |
1727127 |
LATCH-RUBBER Not Available Price: |
| 48 |
1727126 |
CLIP ZP Not Available Price: |
| 49 |
712-0272 |
Hex Sems Nut 010-24 Thd. This part replaces 1185985. Price: $3.58 |
| 50 |
1764657 |
SUPPORT-HOOD ROD Not Available Price: |
| 52 |
1762856010 |
ASSEMBLY HOOD Not Available Price: |
| 53 |
1756876 |
DECAL-SERVICE INST Not Available Price: |
| 56 |
1753039 |
PANEL-INST Not Available Price: |
| 57 |
1755931 |
DECAL THROTTLE Not Available Price: |
| 58 |
1756739 |
PLUG CAP Not Available Price: |
| 59 |
1755932 |
DECAL-IGNITION Not Available Price: |
| 65 |
1757366 |
DECAL-FUEL Not Available Price: |
| 67 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 This part replaces 1186469. Price: $3.53 |
| 68 |
1186393 |
NUT-HFLK 3/8-16 ZP Price: $2.63 |
| 69 |
1701055 |
WASHER-FLAT 1.25X.406X.179 Not Available Price: |
| 70 |
1755449 |
SPRING COMPRESSION Not Available Price: |
| 71 |
1759102 |
DECAL Not Available Price: |
| 72 |
1706782 |
WASHER-BOWED Not Available Price: |
| 73 |
1705793 |
WASHER-NYLON Not Available Price: |
| 74 |
1754125 |
SCR-SHLDR 3/8-16X.25 Not Available Price: |
| 75 |
1760963001 |
ASSM-SEAT SUPPORT Not Available Price: |
| 77 |
1753911 |
BLOCK-PIVO Not Available Price: |
| 78 |
1757938 |
DECAL-SIDECVR RH RED Not Available Price: |
| 78 |
1757939 |
DECAL-SIDECVR LH RED Price: Call Us |
| 79 |
1900333 |
DECAL-U.S.A. Not Available Price: |
| 80 |
736-3089 |
FLAT WASHER .345X1.0X.100 Not Available This part replaces 1723384. Price: |
| 82 |
1763229001 |
STRAP Price: Call Us |
| 83 |
1764597001 |
ASSEMBLY SUPPORT L/H Not Available Price: |
| 84 |
1764598001 |
ASSEMBLY SUPPORT R/H Not Available Price: |
| 85 |
1757542 |
CLIP Not Available Price: |
| 87 |
1737951 |
SPECIAL NU Not Available Price: |
