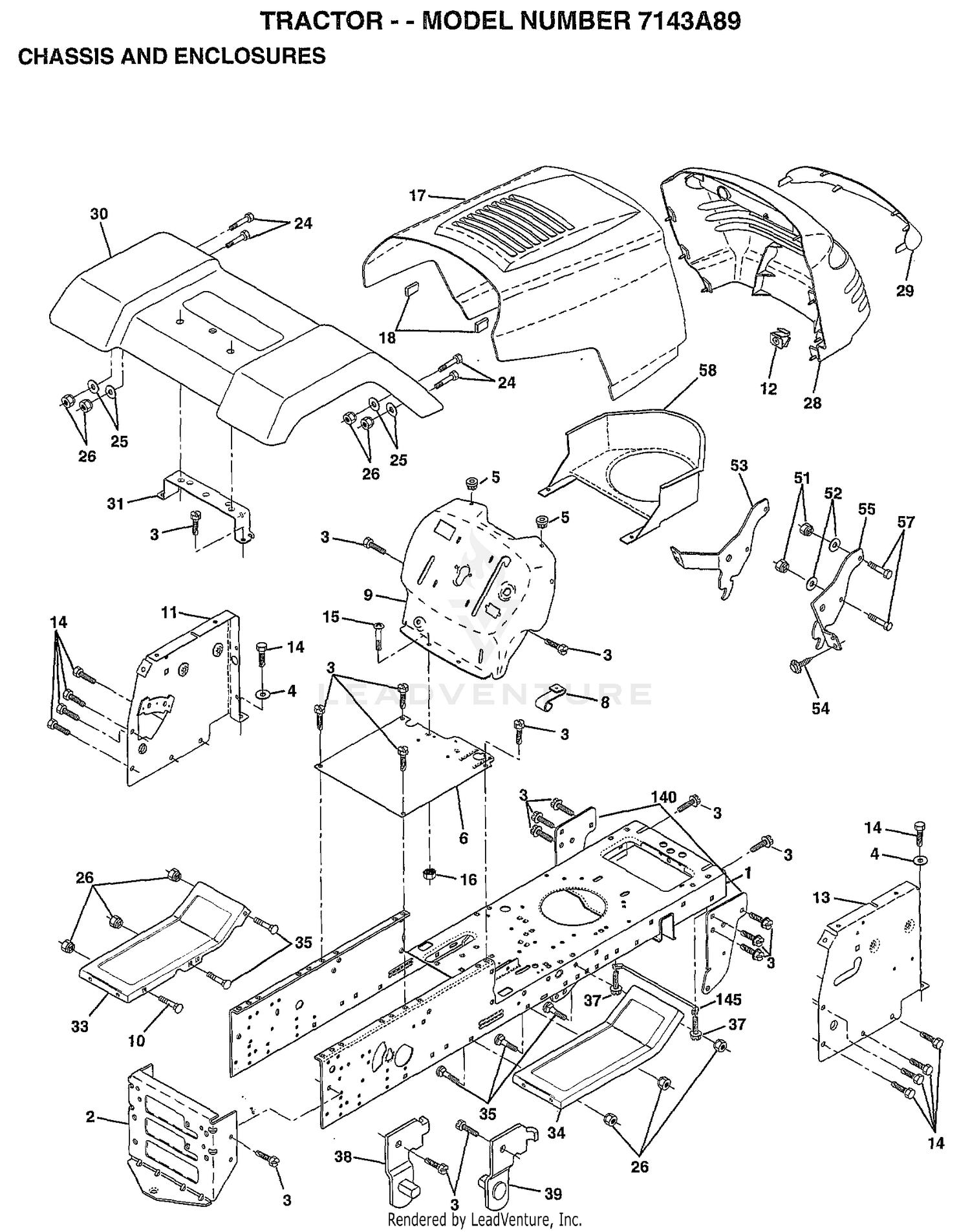

| Ref | Part Number | Description |
|---|
| 1 |
160393 |
CHASSIS Price: Call Us |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 3 |
17490612 |
SCREW Price: Call Us |
| 4 |
19131216 |
WASHER Price: Call Us |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 9 |
161937X011 |
DASH SILKSCREEN Price: Call Us |
| 10 |
108-4413 |
CRANKCASE ASM Price: $9,872.90 |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 13 |
155934X010 |
SUB= 169117X010 Price: Call Us |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 15 |
74180512 |
SCREW Price: Call Us |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
159639X505 |
HOOD.STEEL.ASSY Price: Call Us |
| 18 |
126938X |
SUB= 532126938 Price: Call Us |
| 20 |
98-7486 |
PLUG Price: $1.11 |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
73800600 |
NUT Price: Call Us |
| 28 |
157373 |
GRILLE-MS428 Price: Call Us |
| 29 |
140273 |
LENS GRILLE Price: Call Us |
| 30 |
157584X505 |
FENDER BRACKET Price: Call Us |
| 30 |
98-7487 |
PLUG Price: $3.18 |
| 31 |
136619 |
BRKT FENDER Price: Call Us |
| 33 |
105476X505 |
FOOTREST LH Price: Call Us |
| 34 |
105475X505 |
FOOTREST RH Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 40 |
98-7488 |
PLUG Price: $2.74 |
| 50 |
98-9379 |
PLUG-EXPANSION This part replaces 98-7489. Price: $0.76 |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
161464 |
SCREW.HEX.WS.HD Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
| 60 |
98-9668 |
PLUG-EXPANSION Price: $2.17 |
| 70 |
98-7500 |
CAP-SEALING Price: $7.89 |
| 80 |
98-7501 |
CAP-SEALING Price: $4.84 |
| 90 |
98-7502 |
PIN-STRAIGHT Price: $0.24 |
| 100 |
98-7503 |
PIN-STRAIGHT Price: $0.42 |
| 110 |
98-7504 |
PIN-STRAIGHT Price: $0.72 |
| 120 |
98-7505 |
PIN-STRAIGHT Price: $0.66 |
| 125 |
105-2883 |
CAP-SEALING Price: $2.39 |
| 130 |
98-7506 |
PIN-PIPE Price: $3.62 |
| 140 |
110-0012 |
PLUG Price: $8.26 |
| 140 |
158418 |
BRKT SUSPENSION Price: Call Us |
| 150 |
98-7428 |
GASKET Price: $0.68 |
| 160 |
98-7509 |
O-RING Price: $4.31 |
| 170 |
98-7510 |
COCK-DRAIN Price: $16.83 |
| 180 |
98-7511 |
JOINT-COCK, DRAIN Price: $10.95 |
| 190 |
98-7512 |
OIL PUMP ASM Price: $153.92 |
| 200 |
115-8648 |
GASKET-PUMP, OIL This part replaces 98-7513. Price: $1.95 |
| 210 |
98-7514 |
BOLT Price: $0.99 |
| 220 |
98-7699 |
WASHER-SPRING This part replaces 98-7515. Price: $0.44 |
| 230 |
98-7516 |
GEAR-DRIVE, OIL PUMP Price: $82.70 |
| 240 |
98-7517 |
KEY-FEATHER Price: $0.57 |
