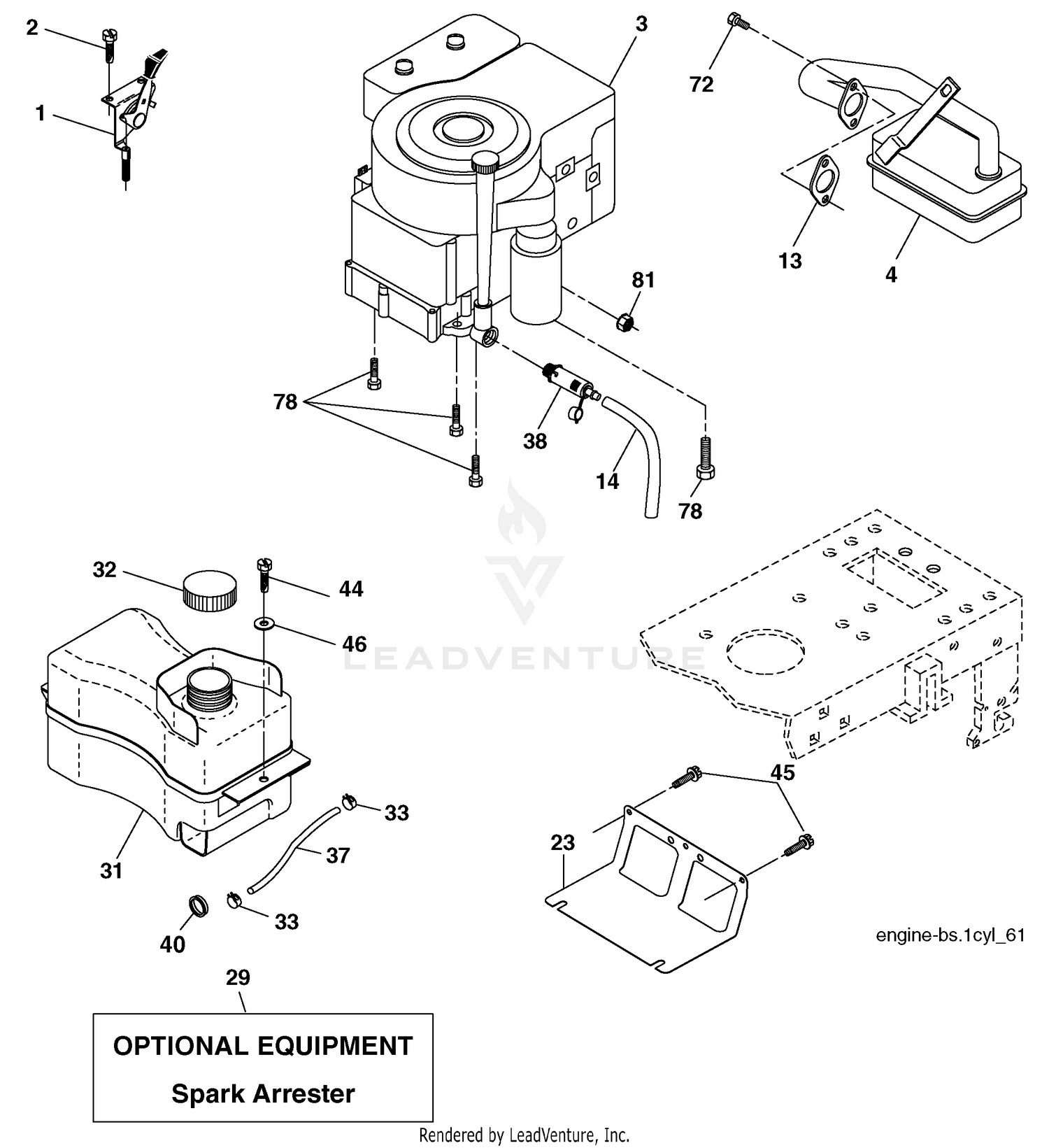

| Ref | Part Number | Description |
|---|
| 1 |
170551 |
Control Th/ch Flag Price: Call Us |
| 2 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 4 |
137352 |
Muffler Exhaust B&S Price: Call Us |
| 10 |
98-9705 |
STARTER ASM Price: $663.57 |
| 13 |
165291 |
Gasket Eng 1 313 Id Tin Plated Price: Call Us |
| 14 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 20 |
104-8608 |
YOKE ASM Price: $437.88 |
| 23 |
169837 |
Shield BRN/DBR Guard Price: Call Us |
| 25 |
99-8375 |
COVER Price: $24.86 |
| 29 |
137180 |
Kit Spark Arrestor (Flat Scrn) Price: Call Us |
| 30 |
98-7742 |
ARMATURE ASM Price: $819.15 |
| 31 |
407516 |
Tank Fuel Front Price: Call Us |
| 32 |
197725 |
Cap Asm Fuel Price: Call Us |
| 33 |
123487X |
Clamp Hose Price: Call Us |
| 37 |
401137 |
Line Fuel 20" Price: Call Us |
| 38 |
181654 |
Plug Drain Oil Price: Call Us |
| 40 |
124028X |
Bushing Snap Nyl Blk Fuel Line Price: Call Us |
| 40 |
98-7744 |
BEARING Price: $35.64 |
| 44 |
17670412 |
Screw Thdrol 1/4-20 x 3/4 Price: Call Us |
| 45 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 46 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 50 |
98-7743 |
BEARING Price: $37.48 |
| 60 |
99-8373 |
CLUTCH-RUNNING, OVER Price: $691.80 |
| 70 |
99-8374 |
FRAME-END, DRIVE Price: $73.04 |
| 72 |
192334 |
Screw Socket Head 5/16-18 x 3/4 Price: Call Us |
| 78 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 80 |
105-3746 |
MAGNETIC SWITCH ASM Price: $689.29 |
| 85 |
105-2886 |
COVER ASM Price: $58.11 |
| 90 |
98-7748 |
FRAME-END Price: $82.65 |
| 100 |
98-7749 |
BRUSH HOLDER ASM Price: $91.05 |
| 110 |
98-7750 |
SPRING-BRUSH Price: $2.38 |
| 120 |
98-7751 |
GEAR Price: $43.51 |
| 130 |
98-7752 |
RETAINER Price: $4.35 |
| 140 |
98-7753 |
ROLLER Price: $1.00 |
| 150 |
98-7755 |
BALL Price: $0.42 |
| 160 |
98-7754 |
SPRING Price: $4.70 |
| 170 |
98-7756 |
BOLT Price: $2.64 |
| 180 |
98-7757 |
O-RING Price: $24.98 |
| 190 |
98-7758 |
BOLT ASM Price: $4.90 |
| 200 |
98-7759 |
PIPE-DRAIN Price: $28.84 |
| 210 |
99-8371 |
NUT-HEX Price: $3.75 |
| 215 |
99-8376 |
NUT-HEX Price: $7.28 |
| 220 |
100-9240 |
BOLT Price: $7.23 |
| 230 |
250-4 |
TIE-CABLE This part replaces 98-9712. Price: $0.61 |
