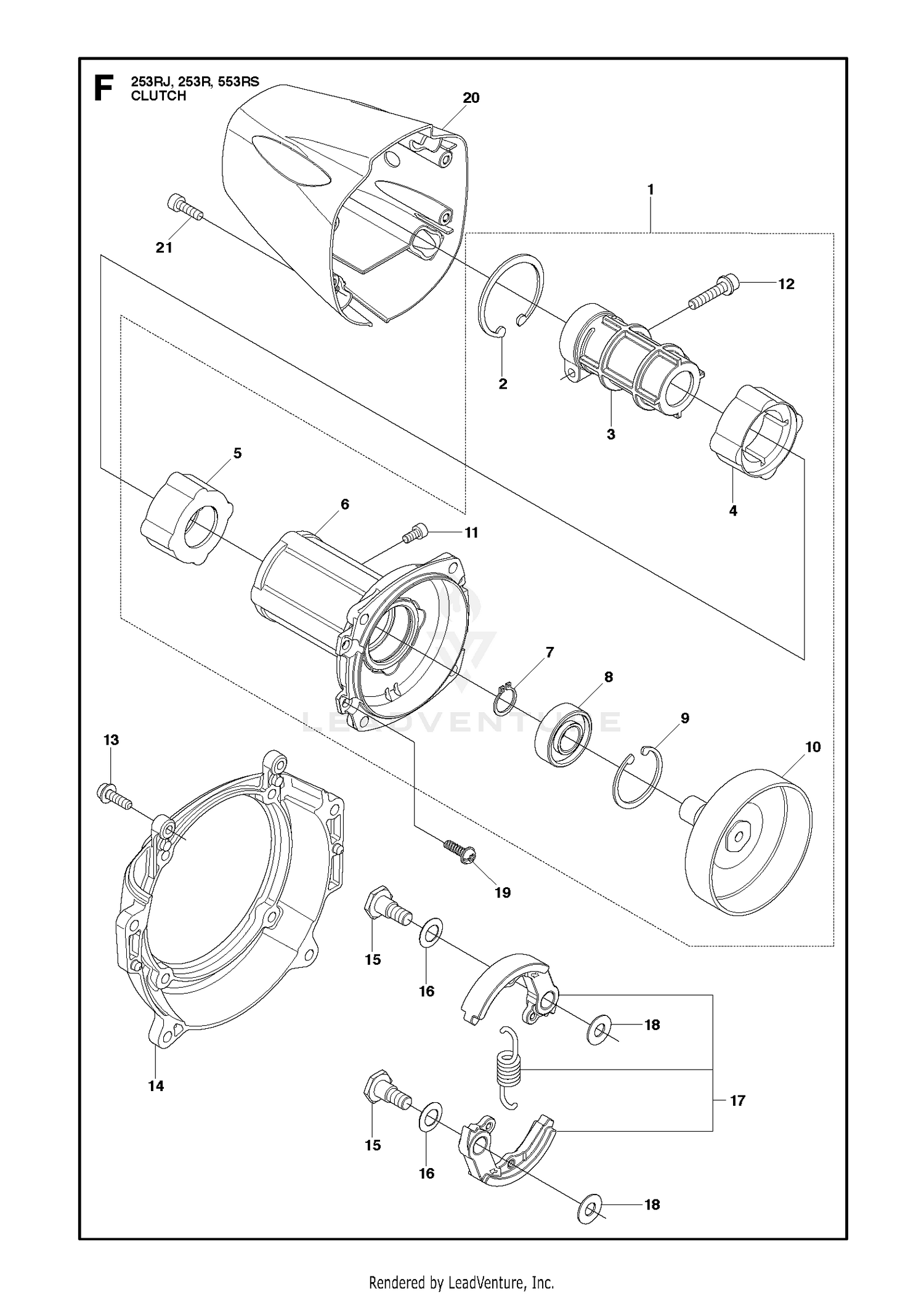

CLUTCH
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 1 | 521664801 | HOUSING ASSY Price: $82.99 |
| 2 | 20-6110 | SPRING-COMPRESSION Price: $12.99 |
| 2 | 516126401 | RING Price: $4.99 |
| 3 | 105-1178-01 | BRACKET-MARKER Price: $23.99 |
| 3 | 521665001 | CLAMP Price: $17.26 |
| 4 | 3234-1 | SCREW-HHF Price: $1.62 |
| 4 | 521665201 | ABSORBER Price: $2.60 |
| 5 | 3272-31 | PIN-COTTER Price: $1.58 |
| 5 | 521665101 | ABSORBER Price: $2.60 |
| 6 | 105-1179 | ROD-MARKER Price: $26.98 |
| 6 | 521664901 | HOUSING Price: $22.22 |
| 7 | 516124201 | RING, SNAP, M15 x 1.0 Price: $2.99 |
| 8 | 321-6 | SCREW-HH Price: $0.25 |
| 8 | 516131701 | BEARING 0600406202 Price: $7.99 |
| 9 | 502849301 | SNAP RING Price: $2.99 |
| 9 | 59-9460 | GUIDE Price: $14.60 |
| 10 | 3256-2 | WASHER-FLAT Price: $0.39 |
| 10 | 591425901 | DRUM This part replaces 521659901. Price: $32.99 |
| 11 | 504119601 | BOLT 08 Price: $2.99 |
| 12 | 521862301 | BOLT,TORX M6X30 Price: $2.99 |
| 13 | 515391301 | BOLT Price: $2.99 |
| 14 | 525431801 | Price: Call Us |
| 15 | 505297801 | SCREW Price: $4.99 |
| 16 | 505298101 | WASHER Price: $2.99 |
| 17 | 521636401 | SHOE COMP Price: $49.99 |
| 18 | 505298001 | WASHER Price: $2.99 |
| 20 | 510173101 | CLUTCH COVER This part replaces 528815601. Price: $37.99 |
| 21 | 523019001 | BOLT Price: $3.99 |
