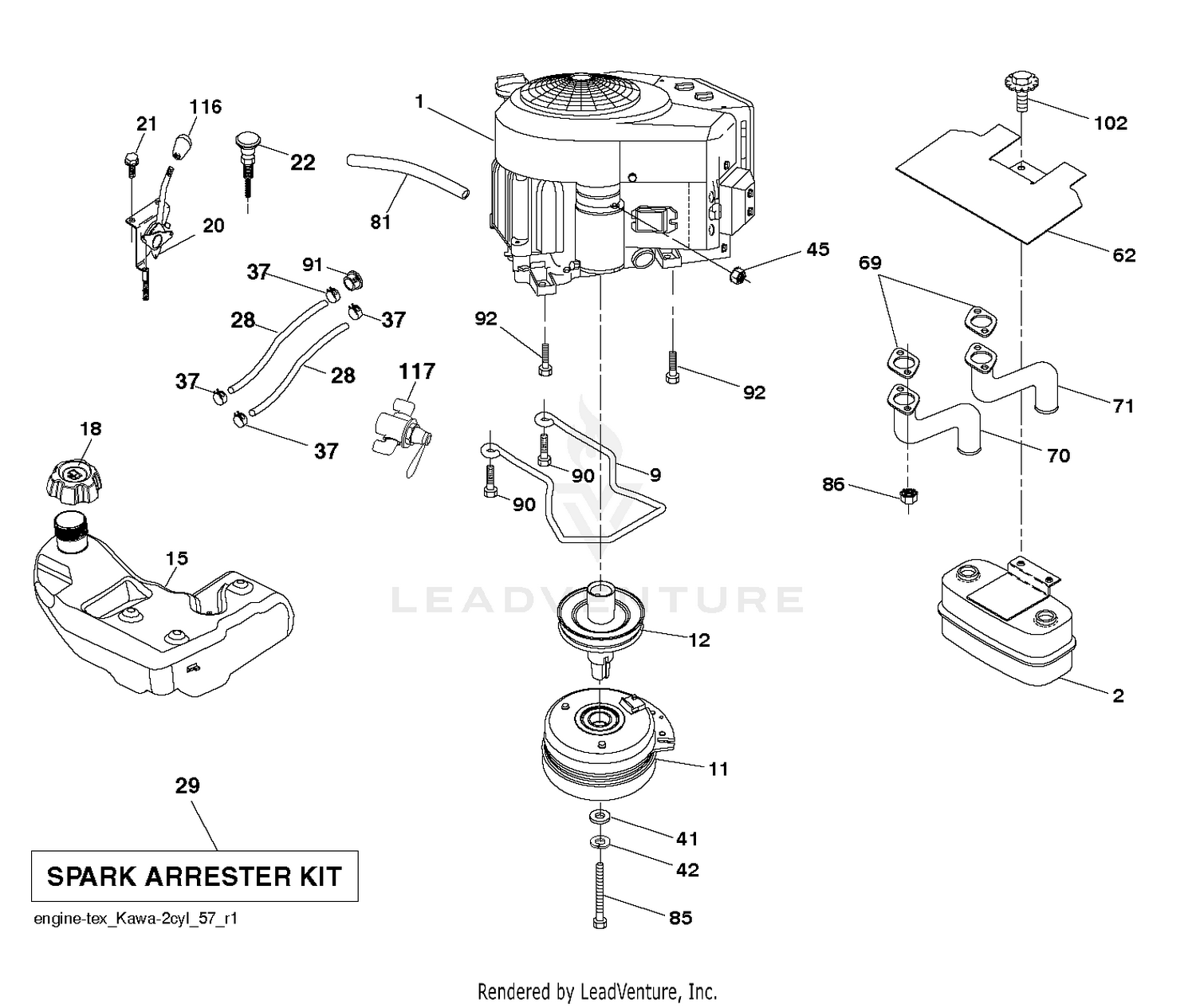

| Ref | Part Number | Description |
|---|
| 1 |
117-8958 |
SPINDLE Price: $184.00 |
| 2 |
117-8963 |
HUB ASM Price: $121.12 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 3 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 4 |
112-1690 |
SEAL-OIL Price: $12.15 |
| 5 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 7 |
117-8259 |
WASHER-SPINDLE Price: $2.71 |
| 8 |
117-8260 |
NUT Price: $19.27 |
| 9 |
596501502 |
Keepers This part replaces 501832602. Price: $9.99 |
| 9 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 11 |
587255001 |
CLUTCH. 5.0 PD. 2.5 OFFSET Price: $229.99 |
| 12 |
586899601 |
PULLEY.EXTENDED.SHAFT.GROUND Price: $29.99 |
| 15 |
529999002 |
TANK ASSY W/CAP 4 GAL REAR EPA This part replaces 532438022. Price: $249.99 |
| 18 |
585124801 |
CAP ASSY FUEL 3" GRAY Price: $17.99 |
| 20 |
532424341 |
CONTROL.THROTTLE.PRO. Price: $34.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532187768 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532189541. Price: $27.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 Price: $24.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
501606701 |
BOLT.HEX.7/16-20X5.GR5.GREEN Price: $7.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 116 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 117 |
532420828 |
VALVE FUEL RESERVE Price: $27.99 |
