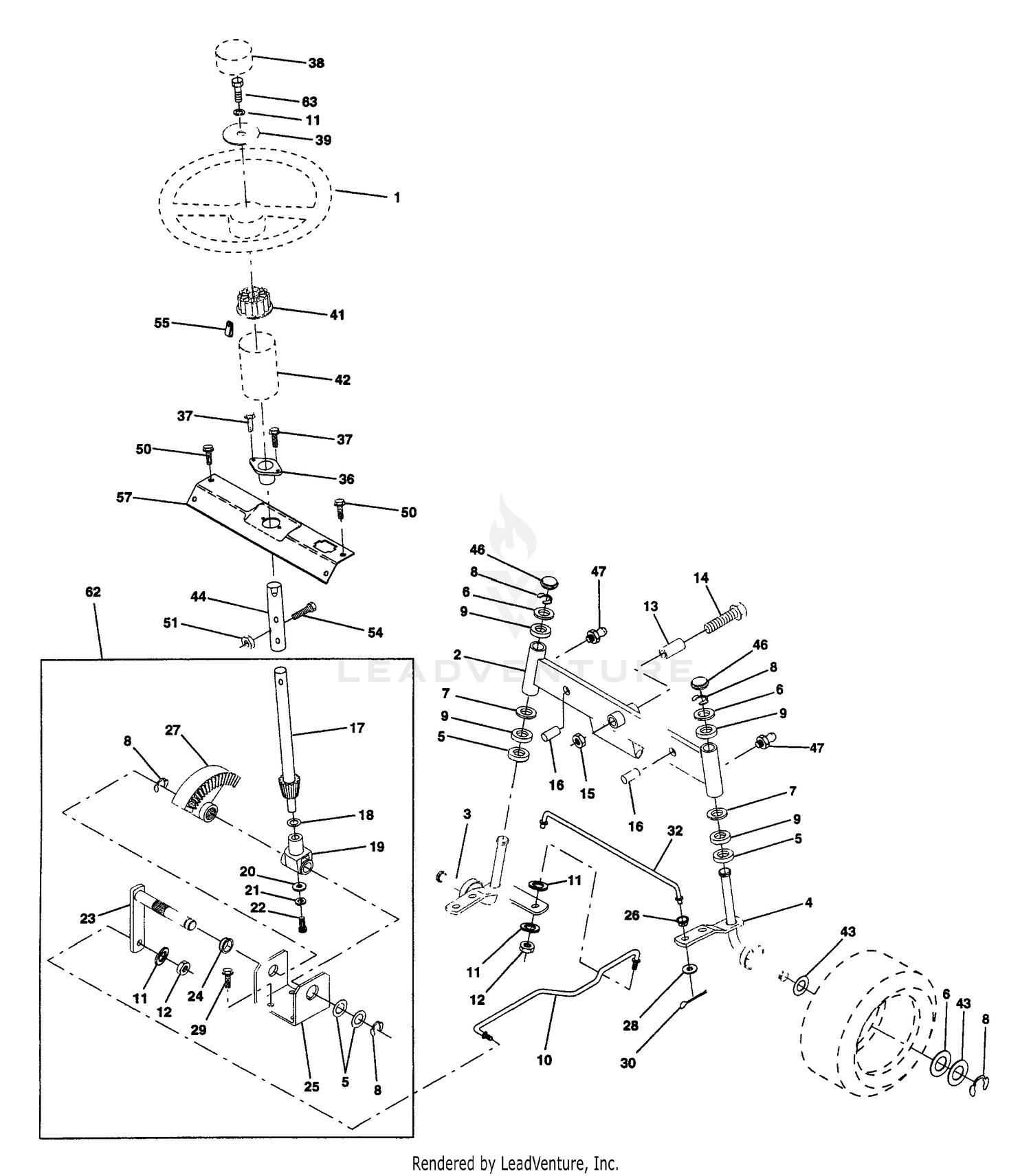

| Ref | Part Number | Description |
|---|
| 1 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 1 |
532124415 |
STEERING WHEEL Price: $58.99 |
| 2 |
32128-20 |
NUT-HF Price: $0.99 |
| 2 |
532142033 |
AXLE ASSY Price: $59.99 |
| 3 |
532135227 |
SPINDLE LH Price: $15.39 |
| 3 |
82-8970 |
DECAL-COOLANT, ENGINE Price: $16.00 |
| 4 |
532135228 |
SPINDLE RH Price: $12.97 |
| 4 |
66-3240 |
CAP-RADIATOR Price: $25.30 |
| 5 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
105-2919 |
HOOD ASM This part replaces 14-8459. Price: $791.02 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
66-6140 |
DECAL Price: $25.48 |
| 7 |
819272016 |
WASHER Price: $3.99 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 8 |
93-3188 |
DECAL - GM 325D Price: $60.98 |
| 9 |
3290-271 |
RIVET-POP Price: $0.25 |
| 9 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 10 |
249-40 |
KEEPER Price: $9.77 |
| 10 |
532130468 |
LINK.DRAG.SOL.BALL JT.20.064 Price: $64.99 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 11 |
77-3100 |
DECAL-WARNING Price: $7.89 |
| 12 |
43-3350 |
UPPER RADIATOR HOSE Price: $77.00 |
| 12 |
873610600 |
NUT Price: $2.99 |
| 13 |
532155134 |
KIT-AXLE This part replaces 532110438. Price: $13.26 |
| 14 |
43-3330-03 |
RADIATOR SHROUD This part replaces 43-3330. Price: $162.11 |
| 14 |
874011056 |
Bolt Hex 5/8-11 Unc X 3-1/2 Price: $4.99 |
| 15 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 15 |
583612401 |
LOCKNUT M This part replaces 873901000. Price: $2.99 |
| 16 |
33-2570 |
DISCONTINUED Price: Call Us |
| 16 |
532132624 |
AXLE PIN Price: $2.42 |
| 17 |
32104-116 |
SCREW-HWHTF Price: $0.55 |
| 17 |
531166901 |
SERVICE KIT SHAFT ASM ST This part replaces 532140176. Price: $42.99 |
| 18 |
532057079 |
THRUST WASHER Price: $1.99 |
| 18 |
59-9740 |
FLEX DRAW LATCH ASM Price: $36.89 |
| 19 |
43-7020 |
LOWER RADIATOR HOSE Price: $86.36 |
| 19 |
532160395 |
STEERING SHAFT SUPPORT This part replaces 532124035. Price: $8.99 |
| 20 |
43-3320 |
FOAM-RADIATOR Price: $24.27 |
| 20 |
596582301 |
Washers This part replaces 532126684. Price: $2.99 |
| 21 |
304-46 |
DRAINCOCK Price: $7.55 |
| 21 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 22 |
38-4600 |
LH FRAME BAR Price: $29.16 |
| 22 |
532165857 |
SCREW.HX.WSH.HD This part replaces 871100410. Price: $3.99 |
| 23 |
323-14 |
SCREW-HH Price: $1.34 |
| 23 |
532156365 |
PITMAN SHAFT ASSY This part replaces 532127501. Price: $29.99 |
| 24 |
532109816 |
NYLINER T (7283A) Price: $4.99 |
| 24 |
63-9010 |
HOSE-COOLANT, TRANSMISSION Price: $83.18 |
| 25 |
340-71 |
FITTING-STRAIGHT, BULKHEAD Price: $20.74 |
| 25 |
531152201 |
SERVICE KIT BRACKET BRKT This part replaces 532124036. Price: $12.99 |
| 26 |
340-70 |
NUT-LOCK Price: $2.10 |
| 26 |
532126847 |
BUSHING.DRAGLINK (2 2) This part replaces 543126847. Price: $4.99 |
| 27 |
532136874 |
GEAR.SECTOR Price: $69.99 |
| 27 |
68-9160 |
BRACKET Price: $16.82 |
| 28 |
32128-21 |
NUT-HF Price: $0.39 |
| 28 |
819131414 |
WASHER This part replaces 819131416. Price: $3.99 |
| 29 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 29 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 30 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 30 |
63-8960 |
HOSE Price: $111.27 |
| 31 |
2412-39 |
CLAMP-R Price: $1.70 |
| 32 |
43-3340-03 |
PLATE-GRILLE, SEALING This part replaces 43-3340. Price: $64.16 |
| 32 |
532192757 |
ROD.TIE.WIRE.FORM This part replaces 532130465. Price: $29.99 |
| 33 |
322-6 |
SCREW-HH Price: $0.45 |
| 34 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 35 |
105-2918 |
RADIATOR SUPPORT ASM This part replaces 88-1820. Price: $504.61 |
| 36 |
532155107 |
STEERING BUSHING KIT This part replaces 532102803. Price: $6.99 |
| 36 |
67-9030-03 |
GRILLE ASM This part replaces 67-9030. Price: $254.81 |
| 37 |
32103-2 |
NUT-WING Price: $0.68 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
5-0838 |
WASHER Price: $1.09 |
| 38 |
532124416 |
INSERT,STR WHEEL Price: $7.89 |
| 39 |
283-76 |
PIN-LYNCH Price: $6.67 |
| 39 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133808. Price: $4.99 |
| 40 |
84-5330 |
BRACKET-PROP, HOOD Price: $14.29 |
| 41 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532100711. Price: $7.99 |
| 41 |
84-5380 |
STRAP-PROP, HOOD Price: $46.67 |
| 42 |
321-6 |
SCREW-HH Price: $0.25 |
| 42 |
532150390 |
BOOT, STEERING SHAFT Price: $3.18 |
| 43 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 44 |
532153721 |
SHAFT EXT STEERING Price: $54.99 |
| 45 |
86-9410-01 |
SEAT SUPT BRKT WA This part replaces 86-9410. Price: $153.46 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 47 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532124836. Price: $4.99 |
| 50 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 51 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 54 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 55 |
532140285 |
CLIP Price: $2.99 |
| 57 |
532140172 |
SUPPORT STEERING SHAFT Price: $2.42 |
| 62 |
584371701 |
KIT.STEER.ASM.P/L This part replaces 532149686. Price: $119.99 |
