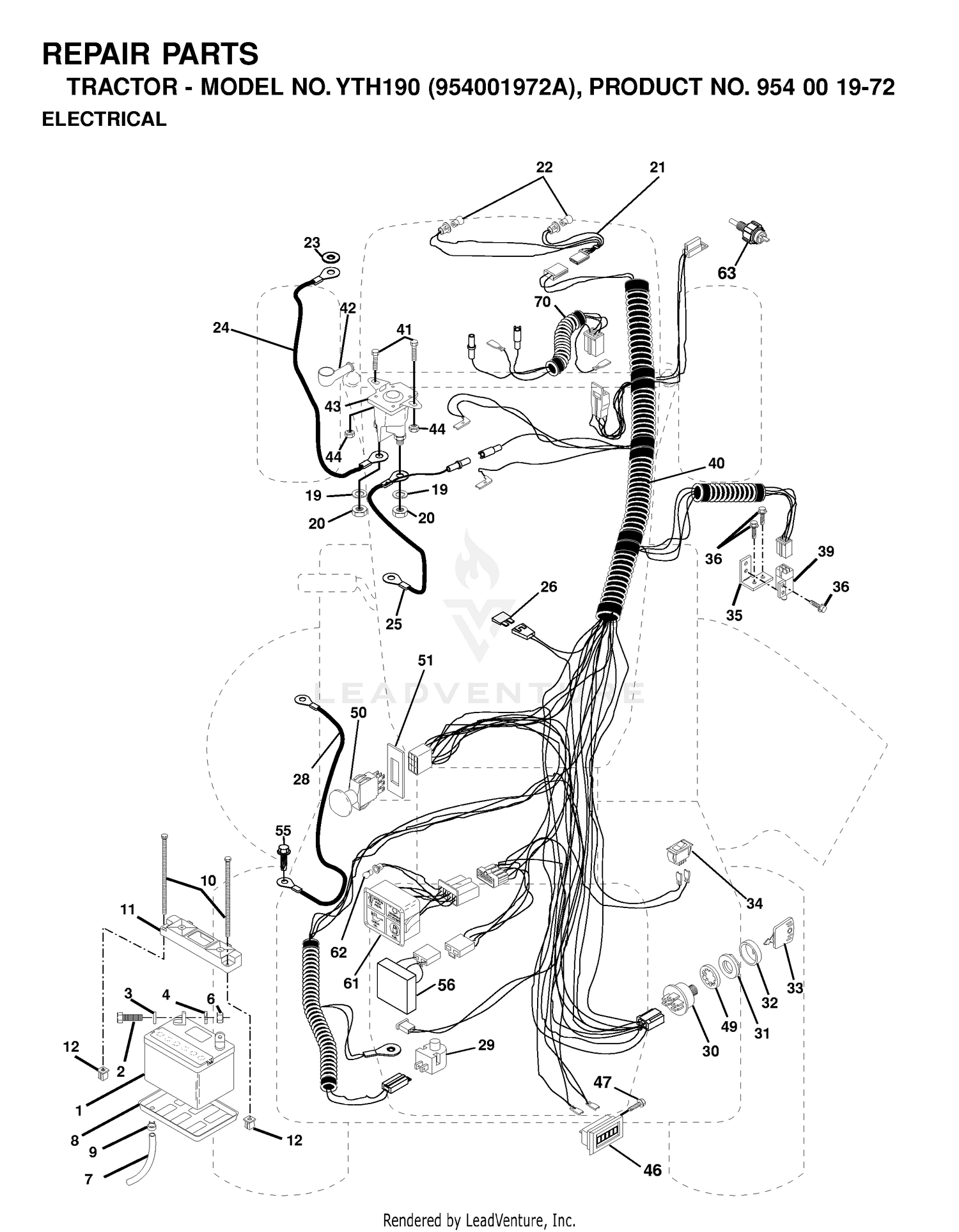

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144926. Price: $149.99 |
| 1 |
98-1459 |
DECAL Price: $3.93 |
| 2 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 3 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 4 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 4 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 6 |
106-3622 |
STEERING TILT COLUMN ASM Price: $715.85 |
| 6 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 7 |
105-2409 |
SCREW-HSH Price: $0.68 |
| 7 |
532007697 |
PLASTIC TUBE Price: $6.23 |
| 8 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 8 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $5.99 |
| 9 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 9 |
532109596 |
HOSE CLAMP T Price: $3.99 |
| 10 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 10 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145211. Price: $8.99 |
| 11 |
115-4379-0P |
BRACE-COLUMN This part replaces 115-4379-01. Price: $26.14 |
| 11 |
532150109 |
BATTERY HOLDDOWN FRONT MOUNT This part replaces 532145209. Price: $4.99 |
| 12 |
114-8119 |
STEERING VALVE ASM Price: $865.12 |
| 12 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145769. Price: $8.99 |
| 13 |
52-2891 |
BUSHING-FLANGED, NYLON Price: $3.19 |
| 14 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 15 |
105-4886 |
NUT-TINNERMAN This part replaces 112-4576. Price: $2.37 |
| 16 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 17 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 18 |
136-2889 |
PEDAL-BRAKE, RH This part replaces 119-0005. Price: $429.93 |
| 19 |
136-2887-03 |
PEDAL-BRAKE, LH This part replaces 115-4421-03. Price: $159.32 |
| 19 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810090400. Price: $2.99 |
| 20 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 20 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $2.99 |
| 21 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 21 |
532136850 |
HARNESS LIGHT SOCKET Price: $15.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
92-7530 |
CABLE-BRAKE, LH Price: $132.98 |
| 23 |
92-7529 |
CABLE-BRAKE, RH Price: $132.98 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 24 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 25 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 25 |
532146148 |
CABLE BATTERY 6 GA 22" W/16W Price: $11.99 |
| 26 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 26 |
532108824 |
FUSE HYT Price: $4.99 |
| 27 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 28 |
99-7963-03 |
PEDAL-PARK Price: $26.63 |
| 29 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 30 |
532158913 |
KIT.SWITCH.IGNITION This part replaces 532144921. Price: $39.99 |
| 30 |
99-7140 |
SPRING-TORSION Price: $21.98 |
| 31 |
115-4417 |
ROD-BRAKE PAWL Price: $43.81 |
| 31 |
532145774 |
KIT-WASHER/NUT This part replaces 532140400. Price: $3.99 |
| 32 |
119-0002 |
PAWL-BRAKE Price: $38.81 |
| 32 |
532141226 |
COVER SWITCH KEY Price: $4.99 |
| 33 |
120-1691 |
DETENT-BRAKE Price: $32.54 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
323-12 |
SCREW-HH Price: $1.14 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 35 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 35 |
532108236 |
BRACKET LT Price: $2.99 |
| 36 |
3229-34 |
SCREW-CARR Price: $1.99 |
| 36 |
817021008 |
SCREW Price: $3.99 |
| 37 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 38 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 39 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 40 |
532146061 |
HARNESS, IGN. Price: $77.87 |
| 41 |
322-3 |
SCREW-HH Price: $0.79 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532145673. Price: $19.99 |
| 44 |
32128-20 |
NUT-HF Price: $0.99 |
| 44 |
873640400 |
Nut, Keps Blk Hex 1/4-20 UNC Price: $2.99 |
| 45 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 46 |
117-4763 |
DECAL-BRAKE Price: $15.19 |
| 46 |
532169642 |
KIT.HOURMETER.SNAP-IN This part replaces 532110940. Price: $109.99 |
| 47 |
817011008 |
Screw 10-24 x 1/2 Black Price: $2.38 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532140404. Price: $24.99 |
| 51 |
532140405 |
FRAME RETAINING RING Price: $3.99 |
| 55 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 56 |
532127385 |
SENSOR LOW VOLTAGE Price: $82.99 |
| 61 |
532126519 |
LIGHT PACKAGE Price: $60.20 |
| 62 |
532110143 |
BULB LIGHT T Price: $3.08 |
| 63 |
532142320 |
SWITCH, OIL PRESSURE Price: $24.99 |
