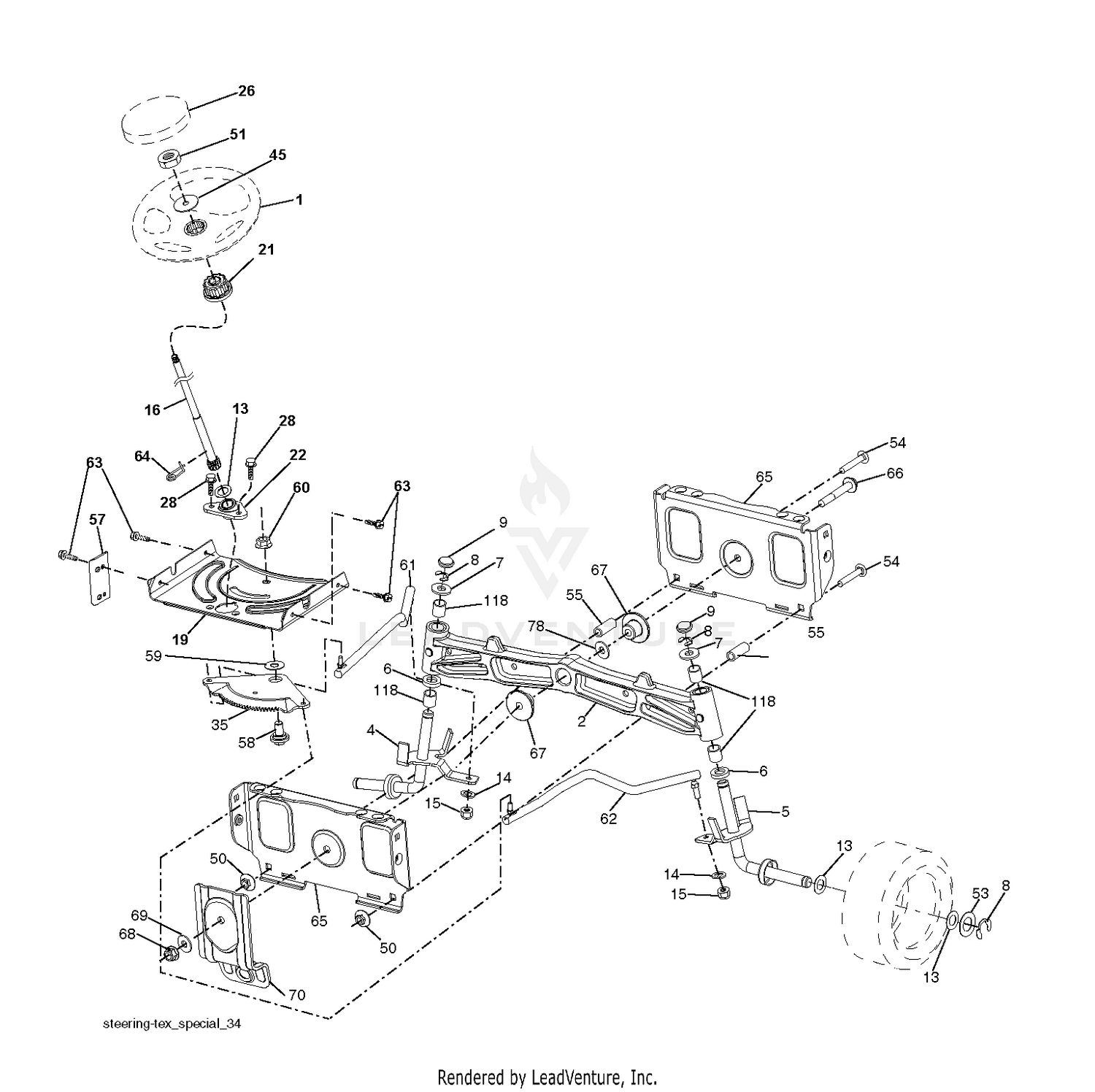

| Ref | Part Number | Description |
|---|
| 1 |
127-3005 |
SHAFT ASM Price: $839.73 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD This part replaces 532416480. Price: $69.99 |
| 2 |
127-3006 |
SHAFT Price: Call Us |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX Price: $119.99 |
| 4 |
127-2974 |
SUPPORT Price: $53.59 |
| 4 |
538691101 |
SPINDLE.WLDMT.LH.16IN.TEX.X431 This part replaces 532403089. Price: $19.99 |
| 5 |
127-2975 |
SUPPORT Price: $47.41 |
| 5 |
538691001 |
SPINDLE.WLDMT.RH.16IN.TEX.X431 This part replaces 532403090. Price: $19.99 |
| 6 |
127-2995 |
SPRING Price: Call Us |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
127-2989 |
ARM-ROCKER Price: $60.07 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
125-7013 |
SCREW-ADJUST, VALVE Price: $23.90 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
125-7014 |
NUT Price: $5.25 |
| 11 |
127-3183 |
STUD Price: Call Us |
| 12 |
127-2996 |
CAP-VALVE Price: $4.75 |
| 13 |
127-3132 |
CYLINDER HEAD ASM Price: $2,781.38 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 532194746. Price: $34.99 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 21 |
125-7240 |
PLUG Price: $4.06 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
127-2990 |
VALVE Price: $79.71 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532420537. Price: $14.99 |
| 23 |
127-3012 |
SPRING Price: Call Us |
| 24 |
127-2994 |
VALVE Price: $56.09 |
| 25 |
127-3013 |
RETAINER-SPRING Price: Call Us |
| 26 |
127-2986 |
SEAL-STEM, VALVE Price: $6.38 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM This part replaces 532415987. Price: $8.99 |
| 27 |
127-3027 |
SEAL-STEM, VALVE Price: $6.79 |
| 28 |
127-3186 |
PIN-COTTER Price: $15.91 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 30 |
127-3021 |
GASKET-INJECTOR Price: $4.54 |
| 31 |
127-3028 |
RETAINER-INJECTOR Price: $66.10 |
| 32 |
127-2980 |
WASHER-INJECTOR Price: $17.55 |
| 33 |
125-7184 |
PIN-SPRING Price: $3.48 |
| 34 |
125-7215 |
BOLT Price: $3.48 |
| 35 |
125-7217 |
BOLT Price: $4.58 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 36 |
125-7220 |
BOLT Price: $4.99 |
| 37 |
138-7828 |
HEAD COVER ASM This part replaces 127-3131. Price: $657.30 |
| 38 |
127-2988 |
PLATE Price: $158.07 |
| 39 |
125-7012 |
BAFFLE Price: $5.18 |
| 40 |
125-6959 |
DIAPHRAGM Price: $52.40 |
| 41 |
125-6960 |
PLATE Price: $16.14 |
| 42 |
125-6961 |
PLATE-BREATHER Price: $28.15 |
| 43 |
125-6962 |
SPRING-DIAPHRAGM Price: $18.13 |
| 45 |
127-3106 |
GASKET-COVER Price: $49.95 |
| 45 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 46 |
127-3026 |
JOINT Price: $53.61 |
| 47 |
125-6994 |
SPRING Price: $3.26 |
| 48 |
127-3029 |
SENSOR-PRESSURE Price: $831.65 |
| 49 |
127-3032 |
O RING-SENSOR, PRESSURE Price: $18.19 |
| 50 |
127-3040 |
HOSE ASM Price: $94.27 |
| 50 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 51 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 52 |
127-3041 |
CLIP-HOSE Price: $23.63 |
| 53 |
125-6913 |
PLUG Price: $8.22 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 54 |
125-7186 |
SCREW Price: $2.74 |
| 54 |
874760636 |
BOLT Price: $4.99 |
| 55 |
125-7186 |
SCREW Price: $2.74 |
| 55 |
532414736 |
SPACER.BRACE.AXLE Price: $5.99 |
| 56 |
125-7186 |
SCREW Price: $2.74 |
| 57 |
127-3184 |
BOLT Price: $4.58 |
| 58 |
125-6974 |
KNOB Price: $6.62 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
127-2978 |
PLUG Price: $6.30 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 60 |
93-0418 |
O-RING Price: $7.29 |
| 61 |
127-3128 |
JOINT-BREATHER Price: $97.89 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
127-3129 |
BREATHER HOSE ASM Price: $65.12 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
125-7040 |
CLIP-HOSE Price: $8.13 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 65 |
532194734 |
BRACE.AXLE.FRONT.NLT/N Price: $37.99 |
| 66 |
127-3133 |
HOSE-INTAKE Price: $33.17 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
127-3030 |
SENSOR-TEMP, AIR Price: $199.61 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
127-3033 |
O-RING Price: $13.39 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
125-7190 |
CLAMP-HOSE Price: $12.29 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
125-7208 |
BOLT Price: $3.77 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 71 |
127-3130 |
LIFTER-ENGINE Price: $37.83 |
| 72 |
125-7214 |
BOLT Price: $3.77 |
| 73 |
127-2991 |
PLUG-GLOW Price: $154.53 |
| 74 |
127-3123 |
CONNECTOR-GLOW PLUG Price: $57.73 |
| 75 |
127-2979 |
GUIDE Price: $29.24 |
| 78 |
532057079 |
THRUST WASHER Price: $1.99 |
| 118 |
532406013 |
BUSHING, AXLE CAST Price: $4.99 |
