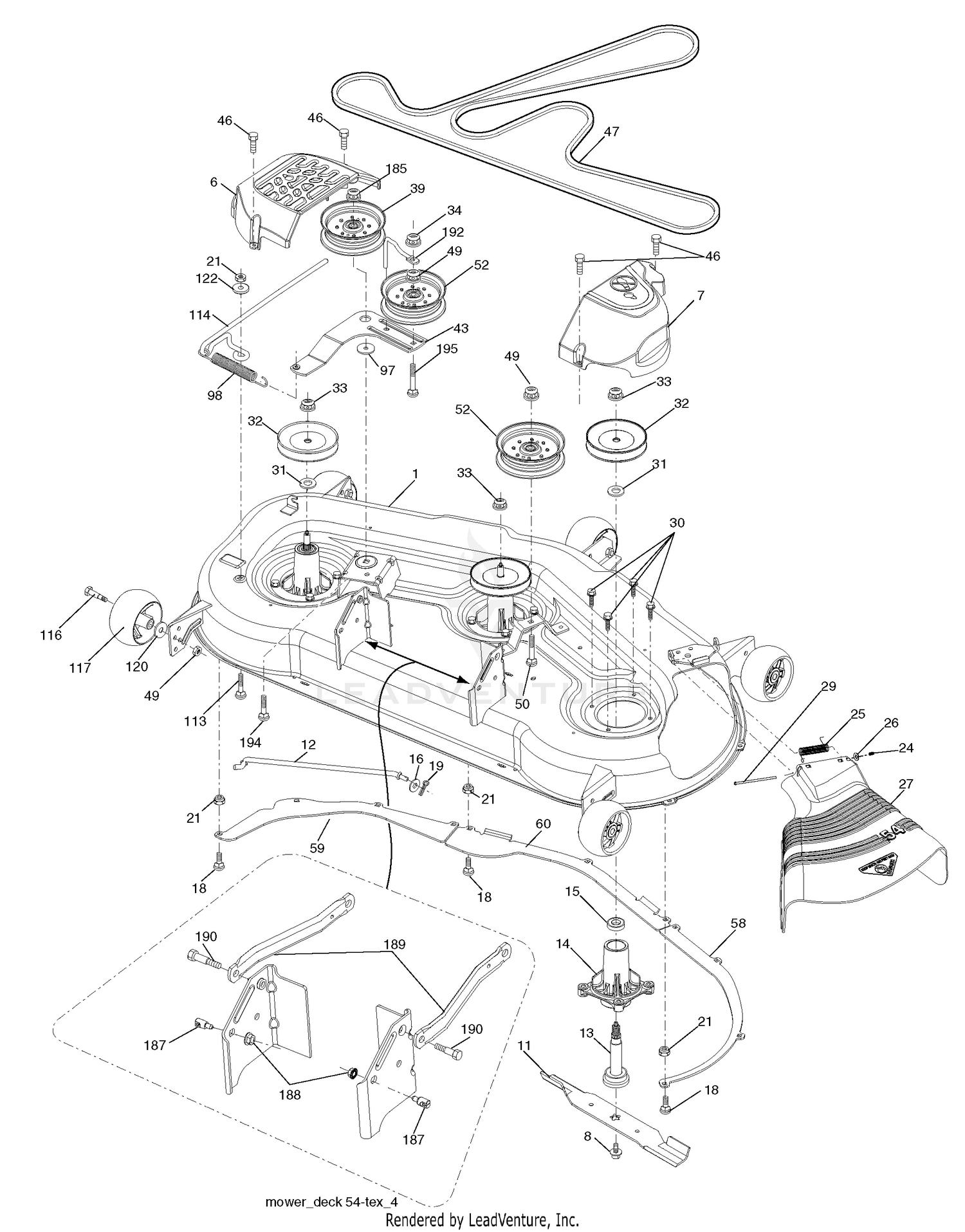

| Ref | Part Number | Description |
|---|
| 1 |
195632 |
Deck Weldment Mower Price: Call Us |
| 6 |
196066 |
Cover Mandrel LH Price: Call Us |
| 7 |
197181 |
Cover Mandrel RH Price: Call Us |
| 8 |
174365 |
Bolt 7/16 Asm. Blade Price: Call Us |
| 8 |
187255 |
Blade Mulching Price: Call Us |
| 10 |
108-2866 |
NOZZLE HOLDER KIT Price: $438.88 |
| 11 |
187292 |
Blade Bagging Price: Call Us |
| 12 |
400337 |
Rod Anti-Sway Price: Call Us |
| 13 |
187291 |
Shaft Asm. w/Lower Bearing Price: Call Us |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 17 |
72110505 |
Bolt Carr. 5/16-18 x 5/8 Price: Call Us |
| 18 |
72140505 |
Bolt RDHD SQNK 5/16-18 x 5/8 Price: Call Us |
| 19 |
194208 |
Pin Cotter 5/16 Bow Tie Lock Price: Call Us |
| 20 |
99-8301 |
NUT Price: $8.64 |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 24 |
105304X |
Cap Sleeve Price: Call Us |
| 25 |
178102 |
Spring, Torsion Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
187257X428 |
Defl ector Shield Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw, Thdroll Washer Head Price: Call Us |
| 30 |
99-8302 |
WASHER-ADJUSTING Price: $7.16 |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
153535 |
Pulley, Mandrel Price: Call Us |
| 33 |
400234 |
Nut, Flg. Top Lock Price: Call Us |
| 34 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 39 |
197380 |
Pulley, Idler, Stationary Price: Call Us |
| 40 |
99-8303 |
SPRING-NOZZLE Price: $11.49 |
| 43 |
196065 |
Arm, Idler Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
196103 |
V-Belt, Mower Price: Call Us |
| 49 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 50 |
72110616 |
Bolt Rdhd Sqnk 3/8-16 unc x 2 Price: Call Us |
| 50 |
99-8304 |
SPACER-DISTANCE Price: $29.26 |
| 52 |
197379 |
Pulley Idler Clutching Price: Call Us |
| 58 |
187342 |
Baffl e Right Price: Call Us |
| 59 |
187344 |
Baffl e Left Price: Call Us |
| 60 |
187607 |
Baffl e Center Price: Call Us |
| 60 |
99-8305 |
ROD-PUSH Price: $60.67 |
| 70 |
99-8306 |
NUT-NOZZLE Price: $34.65 |
| 80 |
99-8307 |
WASHER-PLAIN Price: $8.84 |
| 90 |
107-7826 |
PIECE-NOZZLE Price: $95.55 |
| 97 |
178515 |
Washer Hardened Price: Call Us |
| 98 |
196105 |
Spring Drive Price: Call Us |
| 100 |
99-8309 |
ADJUSTING WASHER ASM Price: $56.19 |
| 110 |
99-8310 |
WASHER-ADJUST (0.10MM) Price: $2.74 |
| 110 |
99-8311 |
WASHER-ADJUST (0.20MM) Price: $3.56 |
| 110 |
99-8312 |
WASHER-ADJUST (0.30MM) Price: $2.74 |
| 110 |
99-8313 |
WASHER-ADJUST (0.40MM) Price: $2.74 |
| 110 |
99-8314 |
WASHER-ADJUST (0.50MM) Price: $1.91 |
| 110 |
99-8315 |
WASHER-ADJUST (0.52MM) Price: $1.91 |
| 110 |
99-8316 |
WASHER-ADJUST (0.54MM) Price: $1.91 |
| 110 |
99-8317 |
WASHER-ADJUST (0.56MM) Price: $1.91 |
| 110 |
99-8318 |
WASHER-ADJUST (0.58MM) Price: $1.91 |
| 110 |
99-8319 |
WASHER-ADJUST (0.80MM) Price: $1.91 |
| 113 |
72110508 |
Bolt Rdhd Sqnk 5/16-18 x 3/4 Price: Call Us |
| 114 |
187556 |
Rod Tension Relief Price: Call Us |
| 116 |
193406 |
Bolt, Shoulder Price: Call Us |
| 117 |
174873 |
Gauge Wheel Price: Call Us |
| 120 |
19132012 |
Washer 13/32 x 1-1/4 x 12 Ga. Price: Call Us |
| 120 |
98-7676 |
GASKET Price: $2.73 |
| 122 |
187557 |
Bushing Tension Relief Price: Call Us |
| 185 |
73900700 |
Nut Lock Flange 7/16-14 Gr. 5 Price: Call Us |
| 187 |
195161 |
Stud Fastener w/"D" Anti-Rotation Price: Call Us |
| 188 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 189 |
195185 |
Arm Susp. Mower Rear Price: Call Us |
| 190 |
196539 |
Bolt Shoulder Price: Call Us |
| 192 |
198468 |
Keeper Belt Idler Price: Call Us |
| 194 |
72140716 |
Bolt Carr Sqnk 3/8-16 x 2-1/4 Price: Call Us |
| 195 |
187254 |
High Lift Price: Call Us |
| 195 |
72140620 |
Bolt Rdhd 3/8-16 unc x 2-1/2 Gr. 5 Price: Call Us |
