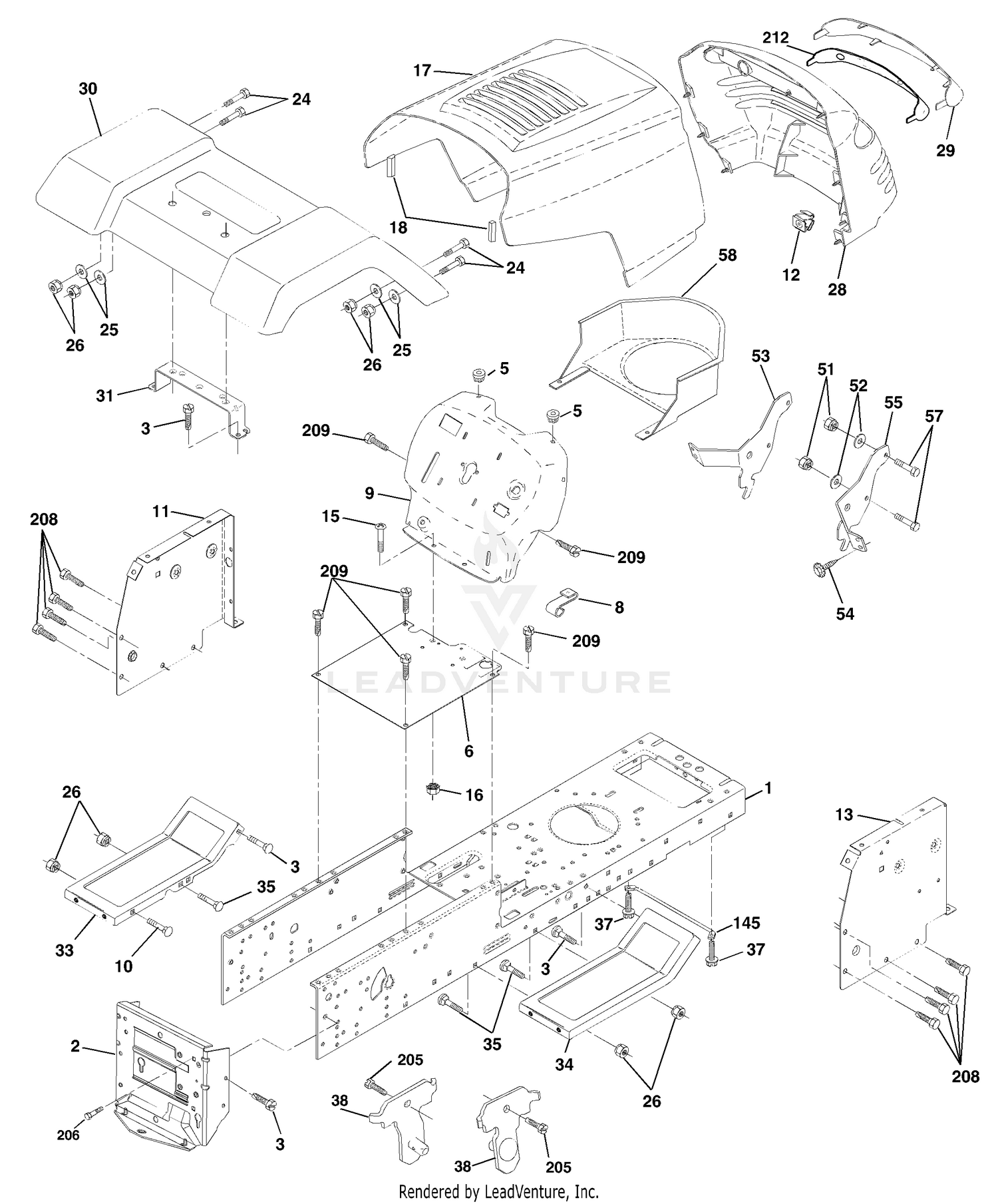

| Ref | Part Number | Description |
|---|
| 1 |
174620 |
Chassis Price: Call Us |
| 1 |
70-6840 |
SCREW Price: $50.06 |
| 2 |
176554 |
Drawbar, Stretch Price: Call Us |
| 2 |
70-3780 |
PLATE Price: $1.79 |
| 2 |
70-3790 |
PLATE Price: $1.46 |
| 2 |
70-3800 |
PLATE Price: $1.46 |
| 2 |
70-3810 |
PLATE Price: $1.79 |
| 2 |
99-2240 |
SHIM Price: $1.26 |
| 2 |
99-2241 |
SHIM Price: $1.23 |
| 2 |
99-2242 |
SHIM Price: $1.26 |
| 2 |
99-2243 |
SHIM Price: $1.39 |
| 2 |
99-2244 |
SHIM Price: $1.18 |
| 2 |
99-2245 |
SHIM Price: $1.31 |
| 3 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 3 |
70-3700 |
RING Price: $4.85 |
| 4 |
70-6940 |
SCREW Price: $20.10 |
| 5 |
155272 |
Bumper, Hood/Dash Price: Call Us |
| 5 |
70-3870 |
WASHER Price: $3.04 |
| 6 |
174643X013 |
Saddle Silkscreen Flt Sdl Price: Call Us |
| 7 |
99-2234 |
SCREW - RACK GUIDE Price: $3.97 |
| 8 |
155138 |
Clip Retainer Slide-On Price: Call Us |
| 8 |
99-2224 |
ELEMENT - PUMP Price: $101.16 |
| 9 |
168347X011 |
Dash Price: Call Us |
| 9 |
99-2223 |
VALVE - DELIVERY Price: $66.90 |
| 10 |
70-3530 |
GASKET Price: $1.24 |
| 10 |
72140608 |
Bolt, Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash LH Price: Call Us |
| 11 |
99-2222 |
SPRING - VALVE Price: $3.40 |
| 12 |
145660 |
Clip Tinnerman Grille P.L Price: Call Us |
| 12 |
99-2221 |
STOPPER - VALVE Price: $18.69 |
| 13 |
172105X010 |
Panel Slkscr Dash RH Price: Call Us |
| 13 |
70-6910 |
O-RING Price: $2.00 |
| 14 |
99-2220 |
HOLDER - VALVE Price: $37.09 |
| 15 |
70-3880 |
PLATE Price: $15.80 |
| 15 |
74180512 |
Screw Mach TRHD 5/16-18unc x 3/4 Price: Call Us |
| 16 |
70-3860 |
WASHER Price: $4.57 |
| 16 |
73510500 |
Nut Keps 5/16-18 Unc Price: Call Us |
| 17 |
159639X550 |
Hood Price: Call Us |
| 17 |
99-2239 |
VALVE ASM Price: $44.26 |
| 18 |
126938X |
Bumper Hood Price: Call Us |
| 18 |
99-2233 |
RACK - CONTROL Price: $85.34 |
| 19 |
70-3930 |
GASKET Price: $11.43 |
| 20 |
70-3710 |
PLATE Price: $2.92 |
| 20 |
70-3720 |
PLATE Price: $2.92 |
| 20 |
70-3730 |
PLATE Price: $2.50 |
| 20 |
70-3740 |
PLATE Price: $1.79 |
| 20 |
70-3750 |
PLATE Price: $1.87 |
| 20 |
70-3760 |
PLATE Price: $1.79 |
| 20 |
70-3770 |
PLATE Price: $1.73 |
| 20 |
99-2228 |
SHIM Price: $1.20 |
| 20 |
99-2229 |
SHIM Price: $1.23 |
| 20 |
99-2230 |
SHIM Price: $1.24 |
| 20 |
99-2231 |
SHIM Price: $1.27 |
| 21 |
70-6850 |
BEARING Price: $67.75 |
| 22 |
70-3690 |
RING Price: $2.29 |
| 23 |
70-3900 |
PACKING Price: $1.27 |
| 24 |
70-3950 |
SCREW Price: $4.71 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16unc X 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 X 13/16 X 12 Ga Price: Call Us |
| 25 |
70-6930 |
SCREW Price: $8.71 |
| 26 |
70-3910 |
WASHER Price: $3.15 |
| 26 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 Unc Price: Call Us |
| 27 |
70-6720 |
STUD Price: $6.81 |
| 28 |
179101 |
Grille/Lens Asm Price: Call Us |
| 28 |
70-6900 |
O-RING Price: $12.17 |
| 29 |
140273X599 |
Lens Grille Private Label Price: Call Us |
| 29 |
99-2238 |
WASHER - SPRING Price: $2.19 |
| 30 |
169465X550 |
Fender Price: Call Us |
| 30 |
99-2237 |
NUT - HEXAGON Price: $2.10 |
| 31 |
136619 |
Bracket Fender Repl 109873x Price: Call Us |
| 31 |
70-3570 |
SCREW Price: $0.94 |
| 32 |
70-3970 |
PLATE Price: $3.66 |
| 32 |
70-3980 |
PLATE Price: $3.66 |
| 32 |
70-3990 |
PLATE Price: $3.66 |
| 32 |
70-4000 |
PLATE Price: $2.73 |
| 32 |
70-4010 |
PLATE Price: $2.73 |
| 32 |
70-4020 |
PLATE Price: $2.80 |
| 32 |
70-4030 |
PLATE Price: $2.80 |
| 32 |
70-4040 |
PLATE Price: $2.80 |
| 32 |
70-4050 |
PLATE Price: $2.73 |
| 32 |
70-4060 |
PLATE Price: $3.37 |
| 32 |
70-4070 |
PLATE Price: $3.37 |
| 32 |
70-4080 |
PLATE Price: $3.37 |
| 32 |
70-4090 |
PLATE Price: $4.42 |
| 32 |
70-4100 |
PLATE Price: $3.37 |
| 32 |
70-4110 |
PLATE Price: $4.42 |
| 32 |
99-2236 |
SHIM Price: $2.81 |
| 33 |
179716X550 |
Footrest Pnt LH Price: Call Us |
| 33 |
70-3630 |
TAPPET SUB ASSEMBLY Price: $105.83 |
| 34 |
179717X550 |
Footrest Pnt RH Price: Call Us |
| 34 |
70-3670 |
PLUG Price: $9.07 |
| 35 |
70-3610 |
SEAT Price: $13.09 |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 X3/4 Price: Call Us |
| 36 |
99-2227 |
SPRING - PLUNGER Price: $13.46 |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 TYT Price: Call Us |
| 37 |
99-2226 |
SHEET - UPPER SPRING Price: $4.31 |
| 38 |
175710 |
Bracket Asm. Pivot Mower Rear Price: Call Us |
| 38 |
99-2225 |
SLEEVE - CONTROL Price: $27.74 |
| 39 |
70-3560 |
PINION Price: $26.27 |
| 40 |
70-3680 |
CAMSHAFT Price: $673.68 |
| 41 |
70-6540 |
BOLT Price: $3.73 |
| 42 |
70-3820 |
COVER Price: $127.40 |
| 43 |
99-2232 |
GASKET - BEARING COVER Price: $4.20 |
| 44 |
70-3940 |
PLATE Price: $58.51 |
| 51 |
73800400 |
Nut Lock W/Insert 1/4-20unc Price: Call Us |
| 52 |
19091416 |
Washer 9/32 x 7/8x16 Ga. Price: Call Us |
| 53 |
144697 |
Bracket Grille Lh Price: Call Us |
| 54 |
161464 |
Screw Hex 8-18 x 7/8 Price: Call Us |
| 55 |
144696 |
Bracket Grille Rh Price: Call Us |
| 57 |
74780412 |
Bolt Fin Hex 1/4-20 unc x .75 Price: Call Us |
| 58 |
150127 |
Duct Air Engine PL/LT Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 212 |
156229 |
Insert Lens Reflect Price: Call Us |
