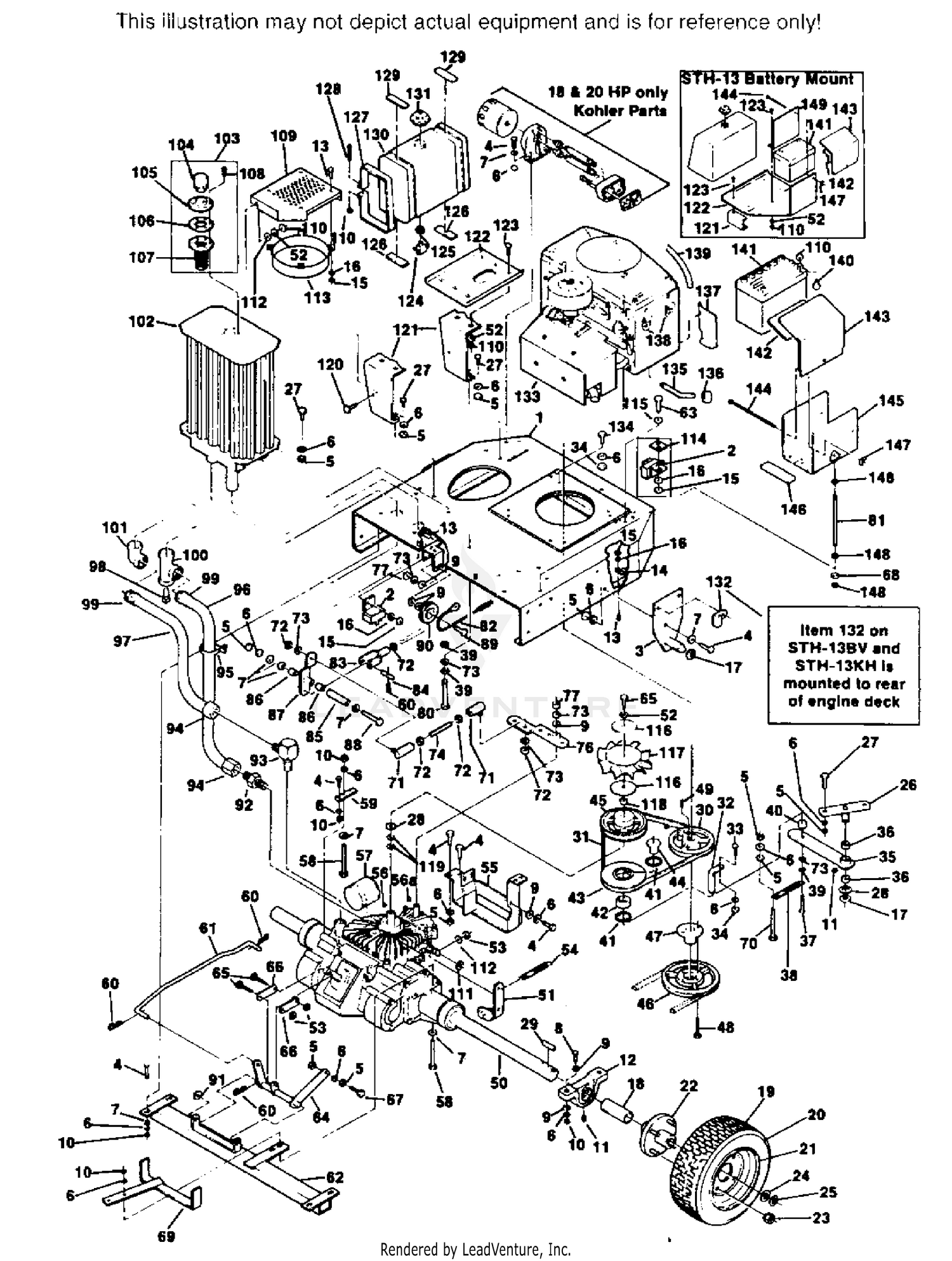

| Ref | Part Number | Description |
|---|
| 1 |
45204 |
ENGINE DECK Price: Call Us |
| 2 |
48392 |
ENGINE, 12.5 HP BRIGGS & STRATTON(VANGUARD Price: Call Us |
| 3 |
45149 |
HITCH BRACKET Price: Call Us |
| 9 |
04041-07 |
FLAT WASHER, 3/8(25/64 X 15/16 X 12 GA.) Price: Call Us |
| 11 |
48114-04 |
Fitting, Grease This part replaces 48114-01. Price: Call Us |
| 12 |
48104-02 |
BEARING, PILLOW BLOCK 1" Price: Call Us |
| 14 |
48030-17 |
CLAMP, CABLE - .38 DIA This part replaces 48030-01. Price: Call Us |
| 17 |
04050-02 |
RETAINING RING, 3/4" "E" Price: Call Us |
| 18 |
43107 |
SPACER, DRIVE AXLE Price: Call Us |
| 19 |
48374 |
WHEEL ASSY. COMPLETE(INCL., 20-23) Price: Call Us |
| 20 |
481893 |
Tire Only This part replaces 48004-02. Price: Call Us |
| 21 |
481890 |
Rim Assy This part replaces 48004-04. Price: Call Us |
| 22 |
481898 |
HUB ASSY., STH WHEEL This part replaces 48374-05. Price: Call Us |
| 23 |
48004-06 |
BOLT AND NUT Price: Call Us |
| 25 |
04050-08 |
RETAINING RING, 1" "E" Price: Call Us |
| 26 |
45037 |
PIVOT BASE, IDLER Price: Call Us |
| 28 |
04041-08S |
FLAT WASHER, 49/64 X 1 1/4 X .035 Price: Call Us |
| 29 |
04063-03 |
KEY, 1/4 X 1/4 X 2 1/2 Price: Call Us |
| 30 |
48063 |
PULLEY, ENGINE TRANSAXLE DRIVE Price: Call Us |
| 31 |
48344 |
BELT, TRANSAXLE DRIVE Price: Call Us |
| 34 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK 5/16-18 Price: Call Us |
| 35 |
46210 |
IDLER ARM, TRANSMISSION(INCL.(2) 36 &(1) Price: Call Us |
| 36 |
48100-05 |
BRONZE BUSHINGS Price: Call Us |
| 38 |
48051 |
SPRING, TRANSMISSION IDLER Price: Call Us |
| 40 |
43063 |
SPACER, IDLER Price: Call Us |
| 41 |
04050-06 |
RETAINING RING, 1 9/16 INTERNAL Price: Call Us |
| 42 |
48102 |
BEARING, IDLER PULLEY Price: Call Us |
| 43 |
48065 |
PULLEY, TRANSAXLE IDLER Price: Call Us |
| 44 |
43117 |
SLEEVE, IDLER TAPPED Price: Call Us |
| 45 |
48346 |
PULLEY, TRANSAXLE DRIVE Price: Call Us |
| 46 |
482744 |
Pulley, 5.75 OD Taper Bore This part replaces 48168-01. Price: Call Us |
| 47 |
48141 |
Hub, Tapered 1.00" bore This part replaces 48168-03. Price: Call Us |
| 49 |
04063-11 |
KEY, 1/4 X 1/4 X 2 1/2 PLATED Price: Call Us |
| 51 |
45181 |
CONTROL ARM, DUMP VALVE Price: Call Us |
| 53 |
04021-01 |
HEX NUT, ELASTIC STOP LOCK 1/4-20 Price: Call Us |
| 54 |
48052 |
SPRING, RETURN Price: Call Us |
| 55 |
45156 |
PROTECTOR, TRANSAXLE Price: Call Us |
| 56 |
04063-12 |
KEY, WOODRUFF #61, 3/16 X 5/8 Price: Call Us |
| 56A |
04063-13 |
KEY, WOODRUFF #3, 1/8 X 1/2 Price: Call Us |
| 59 |
42391 |
SPACER, TRANSAXLE Price: Call Us |
| 60 |
04062-02 |
HAIR PIN COTTER, SMALL Price: Call Us |
| 61 |
44021 |
BRAKE ROD Price: Call Us |
| 62 |
45188 |
SUPPORT, TRANSAXLE Price: Call Us |
| 64 |
45174 |
BELLCRANK, BRAKE SHAFT Price: Call Us |
| 66 |
42428 |
LINK, BRAKE Price: Call Us |
| 69 |
45214 |
BELT GUIDE, BLADE DRIVE Price: Call Us |
| 71 |
48118 |
BALL JOINT Price: Call Us |
| 74 |
44023 |
CONNECTOR ROD Price: Call Us |
| 76 |
45157 |
CONTROL ARM Price: Call Us |
| 81 |
44025 |
ROD, BATTERY SUPPORT Price: Call Us |
| 82 |
48387 |
SPRING/CABLE ASSY. Price: Call Us |
| 83 |
48343-01 |
CLEVIS, HYDRO CONTROL Price: Call Us |
| 84 |
44024 |
CLEVIS PIN Price: Call Us |
| 85 |
43110 |
SLEEVE, CONTROL ARM BELLCRANK Price: Call Us |
| 86 |
48100-04 |
BRONZE BUSHING Price: Call Us |
| 87 |
46211 |
BELLCRANK, CONTROL ARM Price: Call Us |
| 90 |
48066 |
PULLEY, SPRING/CABLE Price: Call Us |
| 92 |
48347 |
ADAPTER, 37' FLARE Price: Call Us |
| 93 |
48350-01 |
Elbow, 90 Degree, 7/8-14 THD This part replaces 48350. Price: Call Us |
| 94 |
48353-01 |
COUPLING, SAE FLARE SWIVEL, PUSH ON HOSE END This part replaces 48353. Price: Call Us |
| 95 |
48028-01 |
CABLE TIE This part replaces 48028. Price: Call Us |
| 96 |
48351 |
Hose Assembly, 1/2” ID This part replaces 48351-04. Price: Call Us |
| 97 |
48351 |
Hose Assembly, 1/2” ID This part replaces 48351-03. Price: Call Us |
| 98 |
48363 |
PIPE PLUG, 1/2 NPT Price: Call Us |
| 99 |
48352-01 |
COUPLING, STRAIGHT MALE, PIPE NPT, PUSH ON This part replaces 48352. Price: Call Us |
| 100 |
48365 |
TEE, 1/2 NPT Price: Call Us |
| 101 |
48364 |
ELBOW 90' 1/2 NPT Price: Call Us |
| 102 |
45211 |
OIL RESERVOIR WELDMENT This part replaces 45160. Price: Call Us |
| 103 |
48376 |
FILER CAP AND MOUNTING ASSY.(INCL. 104-107) Price: Call Us |
| 104 |
48354 |
CAP-OIL RESERVOIR This part replaces 48354-01. Price: Call Us |
| 105 |
48354-02 |
SEAL RING Price: Call Us |
| 106 |
48354-03 |
GASKET Price: Call Us |
| 107 |
48354-04 |
BASKET Price: Call Us |
| 109 |
42484 |
FAN SHIELD Price: Call Us |
| 111 |
04042-07 |
FLAT WASHER, .594 X 1.125 X .063 Price: Call Us |
| 113 |
45190 |
FAN SHROUD Price: Call Us |
| 114 |
42459 |
STOP, MOWER ENGAGE Price: Call Us |
| 116 |
04041-10 |
FLAT WASHER, 3/8 X 2 X 16 GA. Price: Call Us |
| 117 |
46636 |
FAN, HYDRO COOLING This part replaces 48349. Price: Call Us |
| 118 |
43077 |
SPACER, FAN Price: Call Us |
| 119 |
04041-08 |
FLAT WASHER, 49/64 X 1 1/4 X 16 GA. Price: Call Us |
| 121 |
42505 |
BRACKET, FUEL TANK AND BATTERY Price: Call Us |
| 122 |
42487 |
PLATE, FUEL TANK AND BATTERY MTG. Price: Call Us |
| 124 |
483747 |
Ball Valve w/Screen This part replaces 48308. Price: Call Us |
| 125 |
482571 |
Bushing This part replaces 48309. Price: Call Us |
| 126 |
48205 |
PAD, TANK SUPPORT Price: Call Us |
| 127 |
421239 |
Strap, Fuel Tank This part replaces 42369. Price: Call Us |
| 129 |
48292 |
PAD, STRAP CUSHION Price: Call Us |
| 130 |
46846 |
Fuel Tank Assy. This part replaces 46174. Price: Call Us |
| 131 |
481603 |
Fuel Tank Cap This part replaces 48311. Price: Call Us |
| 132 |
48030-07 |
CLIP, BATTERY OVERFLOW TUBE Price: Call Us |
| 133 |
48395 |
SWITCH, INTERLOCK Price: Call Us |
| 134 |
04011-07 |
BOLT, HEX HD TAPTITE, 3/8-16 X 1 1/4 Price: Call Us |
| 135 |
48402-01 |
Extension, Oil Drain 2" This part replaces 48402. Price: Call Us |
| 136 |
48257 |
PIPE CAP, 3/8 HEX Price: Call Us |
| 139 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) This part replaces 48058-05. Price: Call Us |
| 141 |
48405 |
BATTERY Price: Call Us |
| 142 |
48099 |
INSULATION, BATTERY COVER Price: Call Us |
| 143 |
42506 |
BATTERY COVER Price: Call Us |
| 146 |
48661 |
Pad, Rubber This part replaces 48333. Price: Call Us |
| 147 |
04029-01 |
Wing Nut, 1/4-20 x .75" This part replaces 04022-01. Price: Call Us |
