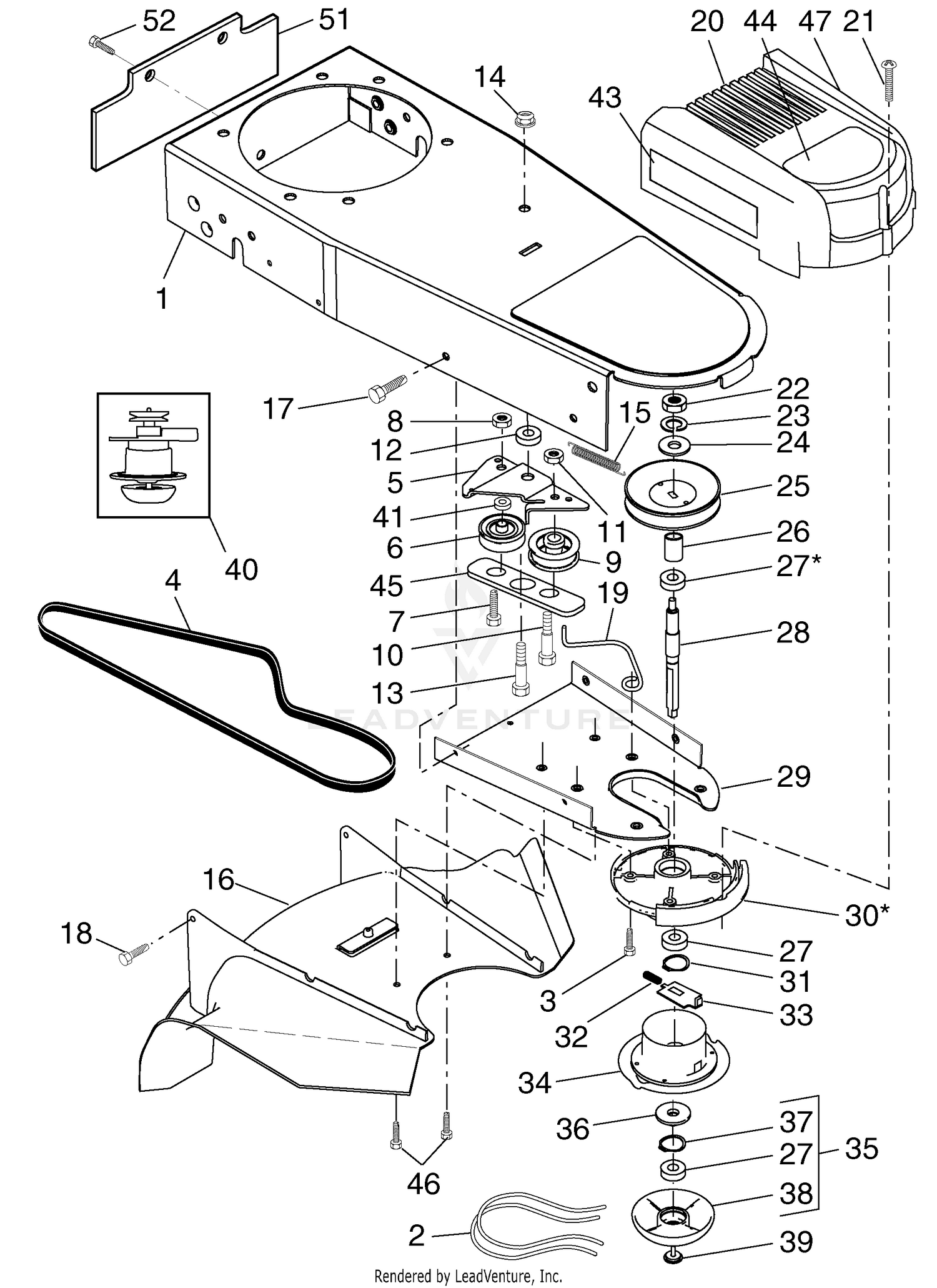

| Ref | Part Number | Description |
|---|
| 1 |
581708384 |
KIT.CHASSIS.ASM.668 This part replaces 532428913. Price: $54.99 |
| 1 |
92-7584 |
TUBE ASM Price: $116.82 |
| 2 |
532182219 |
LINE.BUND.18PC Price: $14.99 |
| 2 |
92-7585 |
TUBE ASM Price: $92.13 |
| 3 |
340-70 |
NUT-LOCK Price: $2.10 |
| 3 |
532173715 |
BOLT.HEX.HDWSH.5/16-18X1.00 Price: $3.99 |
| 4 |
340-127 |
NUT-BULKHEAD Price: $2.24 |
| 4 |
532185476 |
BELT-V.STRING TRIMMER. Price: $27.99 |
| 5 |
586506002 |
BRACKET.IDLER.STRG.TRIMMER.14 This part replaces 532186751. Price: $5.99 |
| 6 |
532166042 |
PULLEY.V-GROOVE.IDLER Price: $22.99 |
| 7 |
33104-025 |
SCREW-HHF Price: $6.47 |
| 7 |
874760620 |
BOLT This part replaces 532173716. Price: $4.99 |
| 8 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 8 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 9 |
340-125 |
FITTING-TEE Price: $64.10 |
| 9 |
532166043 |
IDLER PULLEY Price: $27.99 |
| 10 |
340-148 |
FITTING-TEE Price: $186.40 |
| 10 |
532160829 |
SHOULDER BOLT Price: $4.99 |
| 11 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 11 |
92-7557 |
FRONT COOLER TUBE ASM Price: $71.65 |
| 12 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 12 |
532173717 |
SPACER.IDLER.BRACKET Price: $4.99 |
| 13 |
100-3797 |
REAR MANIFOLD BLOCK ASM Price: $2,195.77 |
| 13 |
532174719 |
BOLT SHOULDER 3/8 -16X1 Price: $7.99 |
| 14 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 14 |
92-7591 |
DISCONTINUED Price: Call Us |
| 15 |
532173811 |
SPRING.RETURN.WHEELED.TRIMMER Price: $3.99 |
| 15 |
92-7638 |
HOSE ASM Price: $131.75 |
| 16 |
100-3798 |
DISCONTINUED Price: Call Us |
| 16 |
532180268 |
DEFLECTOR, BOTTOM Price: $37.99 |
| 17 |
340-140 |
FITTING-TEE Price: $40.21 |
| 17 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 18 |
100-3833 |
HOSE-HYD Price: $94.85 |
| 18 |
532178848 |
SCREW Price: $3.99 |
| 19 |
340-161 |
FITTING-BULKHEAD Price: $72.14 |
| 19 |
532199574 |
KEEPER.BELT.STRING.TRIMMER Price: $3.99 |
| 20 |
532178390 |
COVER, CHASSIS, TOP Price: $14.99 |
| 20 |
92-7647 |
DRAIN TUBE ASM Price: $104.40 |
| 21 |
532149746 |
SCREW.SLOT.TORX. Price: $5.99 |
| 21 |
92-7648 |
TUBE ASM Price: $151.56 |
| 22 |
105-7903 |
HYD HOSE ASM This part replaces 99-5613. Price: $174.38 |
| 22 |
873610600 |
NUT Price: $2.99 |
| 23 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 23 |
99-5614 |
HYD HOSE ASM Price: $103.23 |
| 24 |
596134901 |
GSPH This part replaces 819121214. Price: $2.99 |
| 24 |
93-4205 |
DRAIN TUBE ASM Price: $60.02 |
| 24 |
93-4206 |
DRAIN TUBE ASM Price: $42.69 |
| 25 |
240-5 |
GROMMET Price: $13.66 |
| 25 |
532180340 |
PULLEY.SPINDLE.WHEELED.TRIMMER Price: $19.99 |
| 26 |
532172551 |
SPACER, PULLEY Price: $5.99 |
| 26 |
69-8960 |
SPACER Price: $5.29 |
| 27 |
532110485 |
BEARING This part replaces 532174549. Price: $11.99 |
| 27 |
69-8930 |
WASHER Price: $0.81 |
| 28 |
532172520 |
JACKSHAFT.WHEELED.TRIMMER Price: $34.99 |
| 28 |
56-7972 |
CLAMP-TUBE Price: $13.55 |
| 29 |
340-154 |
UNION-BULKHEAD Price: $44.48 |
| 29 |
532186752 |
CHASSIS.COVER.BOTTOM.BLACK Price: $8.99 |
| 30 |
80-8660 |
SPACER-COUPLER Price: $49.67 |
| 31 |
32104-37 |
SCREW-HWH, THREAD CUT Price: $3.26 |
| 31 |
532174581 |
RING, RETAINING, EXTERNAL, Price: $3.99 |
| 32 |
354-77 |
FITTING-QUICK Price: $55.94 |
| 32 |
532173973 |
SPRING.1.5".COMPRESSION Price: $6.99 |
| 33 |
354-79 |
CAP-DUST Price: $7.81 |
| 33 |
532172519 |
PLATE.LOCKING.WHEELED.TRIMMER Price: $4.99 |
| 34 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 34 |
594935003 |
STRING CARRIER ASM, HW TRIMMER This part replaces 532180338. Price: $59.99 |
| 35 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 36 |
532172516 |
COVER, BEARING Price: $6.99 |
| 36 |
94-1402 |
PLUG-HOLE Price: $1.54 |
| 37 |
532174580 |
RING, RETAINING, INTERNAL, Price: $4.99 |
| 38 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 38 |
532180337 |
MOW BALL This part replaces 532172523. Price: $19.99 |
| 39 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 39 |
532180334 |
BOLT, MOW BALL Price: $6.99 |
| 40 |
94-2834-03 |
BRACKET-CLAMP Price: $27.29 |
| 41 |
323-6 |
SCREW-HH Price: $0.66 |
| 41 |
532174029 |
SPACER (2 2MC) Price: $3.99 |
| 42 |
32128-21 |
NUT-HF Price: $0.39 |
| 43 |
322-7 |
SCREW-HH Price: $0.89 |
| 43 |
532174042 |
DECAL, INSTRUCTION Price: $6.99 |
| 44 |
532428257 |
DECAL.HSG.TRIMMER.WHEELED.HUSQ Price: $14.99 |
| 45 |
532186753 |
BRACKET.BELT.KEEPER.BLACK Price: $4.99 |
| 46 |
817060408 |
SCREW Price: $4.99 |
| 47 |
532174036 |
DECAL, INSTRUCTION Price: $6.99 |
| 51 |
532189006 |
SKIRT.REAR.WHEELED.TRIMME(3 2) Price: $12.99 |
