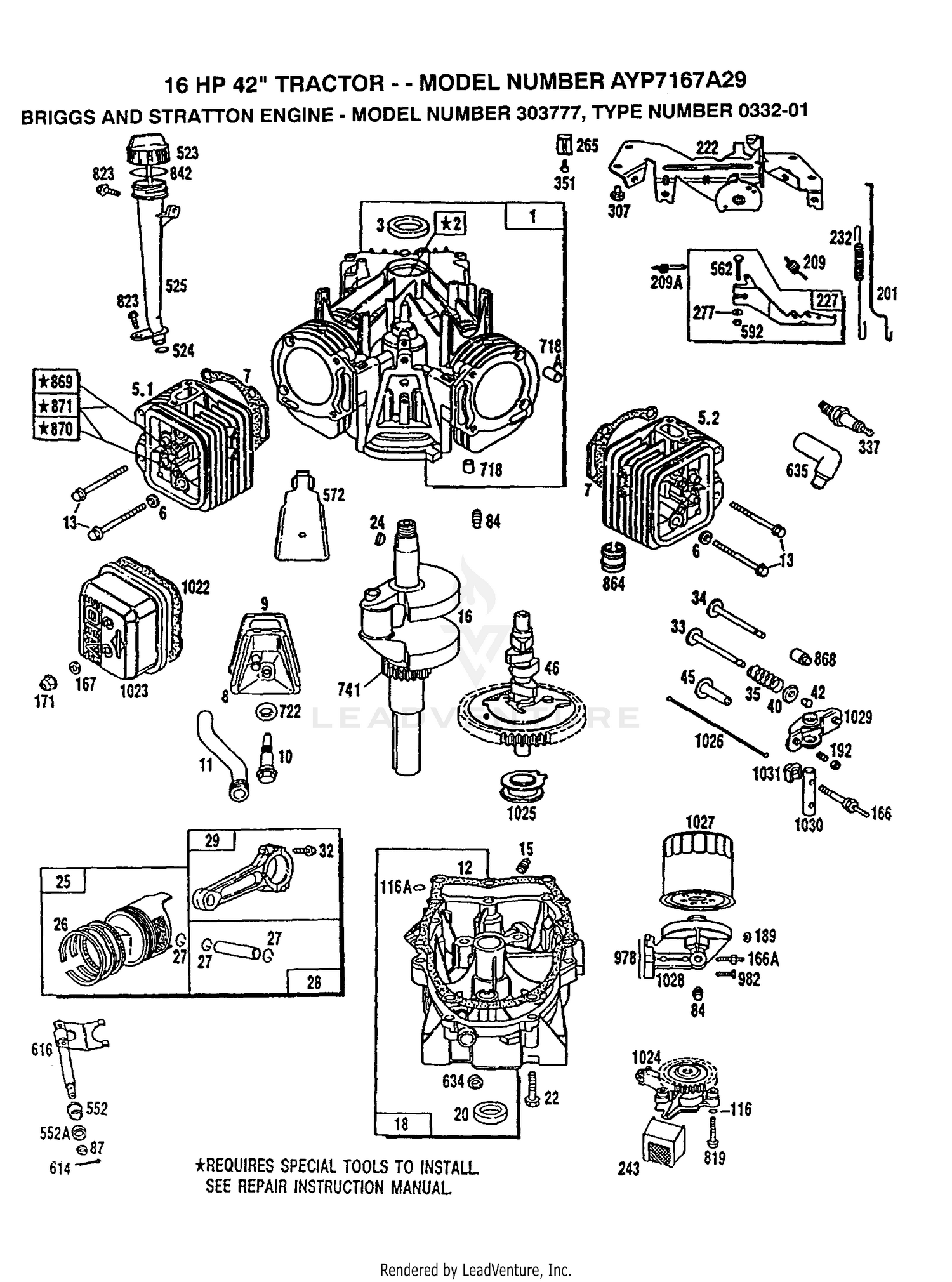

| Ref | Part Number | Description |
|---|
| 1 |
807511 |
CYLINDER ASSEMBLY Price: Call Us |
| 1 |
87-5120-03 |
BRACKET-HOLDER, BATTERY Price: $257.53 |
| 2 |
3231-1 |
SCREW-CARR Price: $0.99 |
| 2 |
805107 |
BEARING, CYLINDER Price: Call Us |
| 3 |
106-5190 |
BATTERY This part replaces 55-7290. Price: $170.85 |
| 3 |
805101 |
SEAL, OIL Price: Call Us |
| 4 |
100-8339-03 |
DISCONTINUED Price: Call Us |
| 5 |
3269-27 |
RIVET-SNAP Price: $0.88 |
| 6 |
805193 |
WASHER, CYLINDER HEAD Price: Call Us |
| 6 |
87-7620 |
SHIELD-TERMINAL, BATTERY Price: $5.54 |
| 7 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 7 |
805111 |
GASKET, CYLINDER HEAD Price: Call Us |
| 8 |
32128-20 |
NUT-HF Price: $0.99 |
| 8 |
807795 |
BREATHER ASSEMBLY Price: Call Us |
| 9 |
107-0778-03 |
BOOM HOLD IN ASM This part replaces 106-5082-03. Price: $86.68 |
| 9 |
805379 |
GASKET, BREATHER Price: Call Us |
| 10 |
100-8246-03 |
DISCONTINUED Price: Call Us |
| 10 |
805751 |
SCREW Price: Call Us |
| 11 |
100-8245-03 |
MOUNT-FENDER, LH Price: $52.07 |
| 11 |
805362 |
TUBE, BREATHER Price: Call Us |
| 12 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 12 |
805112 |
GASKET, CRANKCASE COVER Price: Call Us |
| 13 |
100-8259 |
GUARD-SPLASH Price: $35.25 |
| 13 |
805097 |
SCREW, CYLINDER HEAD Price: Call Us |
| 14 |
92-8562 |
HOOK-RESTRAINT, BOOM Price: $68.40 |
| 15 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 15 |
805048 |
PLUG, OIL DRAIN Price: Call Us |
| 16 |
807586 |
CRANKSHAFT Price: Call Us |
| 16 |
93-6498 |
FENDER-REAR Price: $312.87 |
| 17 |
92-8561 |
HOSE-HOLD IN Price: $18.31 |
| 18 |
19-4050 |
KNOB Price: $15.99 |
| 18 |
807638 |
COVER ASSEMBLY, CRANKCASE Price: Call Us |
| 19 |
100-8201-03 |
SUPPORT-BATTERY Price: $18.05 |
| 20 |
805049 |
SEAL, OIL Price: Call Us |
| 20 |
87-5130-03 |
COVER-BATTERY Price: $42.78 |
| 21 |
322-9 |
SCREW-HH Price: $3.09 |
| 22 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 22 |
805017 |
SCREW, CRANKCASE COVER Price: Call Us |
| 23 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 23 |
807531 |
FLYWHEEL MAGNETO Price: Call Us |
| 24 |
106-4960 |
LH BOOM MOUNT ASM Price: $417.38 |
| 24 |
805016 |
KEY, FLYWHEEL Price: Call Us |
| 25 |
106-4961 |
DISCONTINUED Price: Call Us |
| 25 |
807619 |
PISTON ASSEMBLY, STANDARD Price: Call Us |
| 26 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 26 |
807620 |
RING SET, PISTON, STANDARD Price: Call Us |
| 27 |
32128-49 |
NUT-HHF Price: $1.04 |
| 27 |
805099 |
LOCK, PISTON PIN Price: Call Us |
| 28 |
807621 |
PIN ASSEMBLY, PISTON, STANDARD Price: Call Us |
| 28 |
99060 |
CABLE-GROUND Price: $41.19 |
| 29 |
104-8742 |
CONDUIT-CABLE, BATTERY Price: $20.27 |
| 29 |
807622 |
ROD ASSEMBLY, CONNECTING Price: Call Us |
| 30 |
106-5113 |
CABLE-BATTERY, POSITIVE Price: $159.73 |
| 31 |
92-8563 |
SPRING Price: $19.69 |
| 32 |
805395 |
SCREW, CONNECTING ROD Price: Call Us |
| 33 |
805089 |
VALVE, EXHAUST Price: Call Us |
| 34 |
805090 |
VALVE, INTAKE Price: Call Us |
| 35 |
805078 |
SPRING, VALVE Price: Call Us |
| 36 |
100-8431-03 |
BRACKET-MOUNTING, BOOM Price: $34.71 |
| 40 |
805092 |
RETAINER, VALVE SPRING Price: Call Us |
| 42 |
805161 |
RETAINER, VALVE Price: Call Us |
| 43 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 45 |
805354 |
TAPPET, VALVE Price: Call Us |
| 45 |
92-8564 |
KNOB Price: $11.17 |
| 46 |
32128-23 |
NUT-HF Price: $1.51 |
| 46 |
807542 |
GEAR, CAM Price: Call Us |
| 50 |
805409 |
MANIFOLD, INTAKE Price: Call Us |
| 51 |
805149 |
GASKET, CARBURETOR MOUNTING Price: Call Us |
| 52 |
805023 |
GASKET, INTAKE MANIFOLD Price: Call Us |
| 53 |
805360 |
SCREW, SEMS Price: Call Us |
| 54 |
805006 |
SCREW, SEMS Price: Call Us |
| 75 |
805007 |
WASHER, SPRING Price: Call Us |
| 78 |
805447 |
SCREW, SEMS Price: Call Us |
| 84 |
305059 |
PLUG, PIPE Price: Call Us |
| 87 |
805054 |
SEAL, GOVERNOR SHAFT Price: Call Us |
| 94 |
805777 |
NOZZLE, CARBURETOR Price: Call Us |
| 95 |
805561 |
SCREW, VALVE MOUNTING Price: Call Us |
| 98 |
807705 |
SCREW, THROTTLE ADJUSTING Price: Call Us |
| 104 |
805586 |
PIN, FLOAT HINGE Price: Call Us |
| 105 |
807706 |
VALVE, FUEL INLET Price: Call Us |
| 108 |
805562 |
VALVE, CHOKE Price: Call Us |
| 116 |
805058 |
O-RING, OIL PUMP Price: Call Us |
| 116A |
805198 |
O-RING, CRANKCASE COVER Price: Call Us |
| 118 |
807707 |
VALVE ASSEMBLY, CARBURETOR IDLE Price: Call Us |
| 121 |
807962 |
CARBURETOR OVERHAUL KIT Price: Call Us |
| 122 |
805329 |
SPACER, CARBURETOR Price: Call Us |
| 125 |
807961 |
CARBURETOR, ASSEMBLY Price: Call Us |
| 127 |
805570 |
PLUG, WELCH Price: Call Us |
| 127A |
805571 |
PLUG, WELCH Price: Call Us |
| 130 |
805572 |
VALVE, THROTTLE Price: Call Us |
| 131 |
807709 |
SHAFT, THROTTLE Price: Call Us |
| 133 |
807710 |
FLOAT ASSEMBLY, CARBURETOR Price: Call Us |
| 141 |
807711 |
SHAFT, CHOKE Price: Call Us |
| 147 |
807960 |
NOZZLE Price: Call Us |
| 156 |
805343 |
STUD, ROCKER ARM Price: Call Us |
| 161 |
807857 |
BASE ASSEMBLY, AIR CLEANER Price: Call Us |
| 166A |
805073 |
STUD, OIL FILTER ADAPTER Price: Call Us |
| 167 |
805420 |
WASHER, VALVE COVER Price: Call Us |
| 171 |
805019 |
NUT, NYLOCK Price: Call Us |
| 187 |
393815 |
HOSE (CUT TO SUIT) Price: Call Us |
| 188 |
805247 |
SCREW, STARTER MOUNTING Price: Call Us |
| 189 |
805449 |
LOCK WASHER Price: Call Us |
| 192 |
807623 |
SCREW, VALVE ADJUSTMENT Price: Call Us |
| 201 |
805480 |
LINK, GOVERNOR Price: Call Us |
| 209 |
805462 |
SPRING, GOVERNOR Price: Call Us |
| 209A |
805453 |
SPRING, GOVERNED IDLE Price: Call Us |
| 216 |
805439 |
LINK, CHOKE Price: Call Us |
| 222 |
807610 |
BRACKET, GOVERNOR CONTROL Price: Call Us |
| 227 |
807528 |
LEVER ASSEMBLY, GOVERNOR Price: Call Us |
| 232 |
805465 |
SPRING, GOVERNOR LINK Price: Call Us |
| 240 |
394358 |
FILTER, FUEL Price: Call Us |
| 243 |
805312 |
SCREEN, OIL Price: Call Us |
| 254 |
807713 |
DRAIN, CARBURETOR BOWL Price: Call Us |
| 265 |
221535 |
CLAMP Price: Call Us |
| 271 |
807609 |
BRACKET, CHOKE CONTROL Price: Call Us |
| 277 |
805018 |
WASHER Price: Call Us |
| 304 |
807899 |
HOUSING, BLOWER Price: Call Us |
| 305 |
805406 |
SCREW, SEMS Price: Call Us |
| 307 |
805025 |
SCREW, SEMS Price: Call Us |
| 309 |
399169 |
MOTOR, STARTING Price: Call Us |
| 310 |
94169 |
BOLT Price: Call Us |
| 311 |
490311 |
SCREEN ROTATING Price: Call Us |
| 324 |
280829 |
SCREEN, ROTATING Price: Call Us |
| 332 |
805021 |
NUT, HEX Price: Call Us |
| 333 |
492341 |
ARMATURE, MAGNETO Price: Call Us |
| 334 |
805407 |
SCREW, MOUNTING Price: Call Us |
| 337 |
491055 |
PLUG, SPARK Price: Call Us |
| 353 |
92791 |
WASHERLOCK Price: Call Us |
| 354 |
90576 |
NUT, HEX Price: Call Us |
| 354A |
810078 |
NUT, HEX WASHER HEAD Price: Call Us |
| 356 |
493792 |
WIRE ASSEMBLY, GROUND Price: Call Us |
| 358 |
807640 |
GASKET SET Price: Call Us |
| 363 |
19203 |
PULLER, FLYWHEEL Price: Call Us |
| 387 |
491922 |
PUMP, FUEL Price: Call Us |
| 423 |
805260 |
SCREW, SEMS Price: Call Us |
| 445 |
394018 |
CARTRIDGE, AIR CLEANER Price: Call Us |
| 467 |
491875 |
KNOB, AIR CLEANER Price: Call Us |
| 474 |
393295 |
STATOR, ALTERNATOR Price: Call Us |
| 501 |
394890 |
REGULATOR, ALTERNATOR Price: Call Us |
| 510 |
490421 |
STARTER DRIVE GROUP Price: Call Us |
| 513 |
398003 |
CLUTCH ASSEMBLY Price: Call Us |
| 520 |
93722 |
TERMINAL, SPADE Price: Call Us |
| 523 |
807516 |
DIPSTICK Price: Call Us |
| 524 |
805011 |
SEAL, FILLER TUBE Price: Call Us |
| 525 |
807611 |
TUBE, OIL FILLER Price: Call Us |
| 526 |
805448 |
SCREW, REGULATOR MOUNTING Price: Call Us |
| 527 |
223167 |
CLAMP, FUEL PUMP Price: Call Us |
| 535 |
271271 |
ELEMENT, AIR CLEANER Price: Call Us |
| 537 |
805655 |
GASKET, AIR CLEANER Price: Call Us |
| 544 |
490309 |
ARMATURE ASSEMBLY Price: Call Us |
| 552 |
805412 |
BUSHING, GOVERNOR SHAFT Price: Call Us |
| 552A |
805413 |
BUSHING, GOVERNOR SHAFT Price: Call Us |
| 562 |
805381 |
BOLT Price: Call Us |
| 572 |
805197 |
BAFFLE, BREATHER Price: Call Us |
| 573 |
307663 |
BACK PLATE ASSEMBLY, BLACK Price: Call Us |
| 592 |
805383 |
NUT, HEX Price: Call Us |
| 601 |
93053 |
CLAMP, HOSE, GREEN Price: Call Us |
| 613 |
805158 |
SCREW, SEMS Price: Call Us |
| 614 |
805417 |
PIN, COTTER Price: Call Us |
| 615 |
805578 |
RETAINER, CHOKE SHAFT Price: Call Us |
| 615A |
805577 |
RETAINER, THROTTLE SHAFT Price: Call Us |
| 616 |
807596 |
FORK, GOVERNOR Price: Call Us |
| 634 |
805416 |
WASHER, GOVERNOR SHAFT Price: Call Us |
| 634A |
805576 |
WASHER, THROTTLE Price: Call Us |
| 634B |
805574 |
COLLAR, THROTTLE Price: Call Us |
| 634C |
805580 |
COLLAR, CHOKE Price: Call Us |
| 635 |
805529 |
ELBOW, SPARK PLUG Price: Call Us |
| 642 |
807862 |
COVER ASSEMBLY, AIR CLEANER Price: Call Us |
| 643 |
805631 |
PLATE, AIR FILTER Price: Call Us |
| 657 |
805009 |
SCREW, SEMS Price: Call Us |
| 668 |
805402 |
SPACER, ROTATING SCREEN Price: Call Us |
| 718 |
805103 |
DOWEL, CRANKCASE Price: Call Us |
| 718A |
805102 |
DOWEL, CYLINDER HEAD Price: Call Us |
| 722 |
805483 |
SEAL, BREATHER SCREW Price: Call Us |
| 726 |
807805 |
GEAR, FLYWHEEL RING Price: Call Us |
| 727 |
805505 |
SHIELD, STARTER Price: Call Us |
| 729 |
805641 |
GROMMET, IGNITION CABLE Price: Call Us |
| 741 |
805675 |
GEAR, TIMING Price: Call Us |
| 783 |
280104 |
GEAR, STARTER Price: Call Us |
| 788 |
807685 |
BRACKET, FUEL PUMP Price: Call Us |
| 801 |
394856 |
CAP, DRIVE Price: Call Us |
| 802 |
490310 |
CAP ASSEMBLY, COMMUTATOR END Price: Call Us |
| 803 |
398892 |
HOUSING ASSEMBLY Price: Call Us |
| 819 |
805057 |
SCREW, SEMS Price: Call Us |
| 823 |
805317 |
SCREW, MOUNTING Price: Call Us |
| 842 |
805012 |
O-RING Price: Call Us |
| 851 |
221798 |
TERMINAL, IGNITION CABLE Price: Call Us |
| 862 |
807859 |
BRACKET, AIR CLEANER Price: Call Us |
| 864 |
805083 |
LINER, EXHAUST PORT Price: Call Us |
| 866 |
805738 |
VALLEY, COVER, AIR GUIDE Price: Call Us |
| 868 |
805094 |
SEAL, VALVE GUIDE Price: Call Us |
| 869 |
805085 |
SEAT, INTAKE VALVE Price: Call Us |
| 870 |
805086 |
SEAT, EXHAUST VALVE Price: Call Us |
| 871 |
805084 |
GUIDE, VALVE Price: Call Us |
| 876 |
490467 |
PINION SPRING KIT Price: Call Us |
| 879 |
805636 |
COVER, CARBURETOR Price: Call Us |
| 883 |
805024 |
GASKET, EXHAUST MANIFOLD Price: Call Us |
| 896 |
94288 |
ROLL PIN Price: Call Us |
| 947 |
807744 |
SOLENOID Price: Call Us |
| 955 |
807714 |
PLUG AND SEAL, CARBURETOR Price: Call Us |
| 975 |
807715 |
BOWL ASSEMBLY, FLOAT Price: Call Us |
| 977 |
807716 |
CARBURETOR GASKET SET Price: Call Us |
| 978 |
805250 |
GASKET, OIL FILTER ADAPTOR Price: Call Us |
| 982 |
805030 |
SCREW, SEMS Price: Call Us |
| 985 |
398525 |
INSULATOR ASSEMBLY Price: Call Us |
| 987 |
805575 |
SEAL, THROTTLE SHAFT Price: Call Us |
| 1003 |
490316 |
BRUSH SPRING SET Price: Call Us |
| 1004 |
805632 |
TUBE, AIR INLET Price: Call Us |
| 1013 |
805581 |
SEAL, CHOKE SHAFT Price: Call Us |
| 1014 |
807797 |
DEFLECTOR, BREATHER, A.C. Price: Call Us |
| 1022 |
805028 |
NUT, HEX Price: Call Us |
| 1023 |
805100 |
COVER, VALVE Price: Call Us |
| 1024 |
807546 |
OIL PUMP ASSEMBLY Price: Call Us |
| 1025 |
805313 |
SLIDER, GOVERNOR Price: Call Us |
| 1026 |
805352 |
ROD, PUSH, INTAKE Price: Call Us |
| 1027 |
492932 |
FILTER, OIL Price: Call Us |
| 1028 |
805292 |
ADAPTER, OIL FILTER Price: Call Us |
| 1029 |
807557 |
ARM, ROCKER Price: Call Us |
| 1030 |
805342 |
SHAFT, ROCKER ARM Price: Call Us |
| 1031 |
805341 |
SUPPORT, ROCKER ARM Price: Call Us |
| 1033 |
807668 |
OVERHAUL KIT, VALVE Price: Call Us |
| 1036 |
807688 |
BREATHER GASKET SET Price: Call Us |
| 94196 |
KEY, |
TIMING GEAR Price: Call Us 94196 |
| 296004 |
PIPE, |
FUEL Price: Call Us 296004 |
| 805617 |
ROD, |
PUSH, EXHAUST Price: Call Us 805617 |
| 807625 |
WASHERS, |
THRUST Price: Call Us 807625 |
| 807665 |
COVER, |
VALVE Price: Call Us 807665 |
| 807807 |
PISTON |
ASSEMBLY .010" OVERSIZE Price: Call Us 807807 |
| 807808 |
RING |
SET, PISTON .010" OVERSIZE Price: Call Us 807808 |
| 807809 |
PISTON |
ASSEMBLY .020" OVERSIZE Price: Call Us 807809 |
| 807810 |
RING |
SET, PISTON .020" OVERSIZE Price: Call Us 807810 |
| 807811 |
PISTON |
ASSEMBLY .030" OVERSIZE Price: Call Us 807811 |
| 807812 |
RING |
SET, PISTON .030" OVERSIZE Price: Call Us 807812 |
