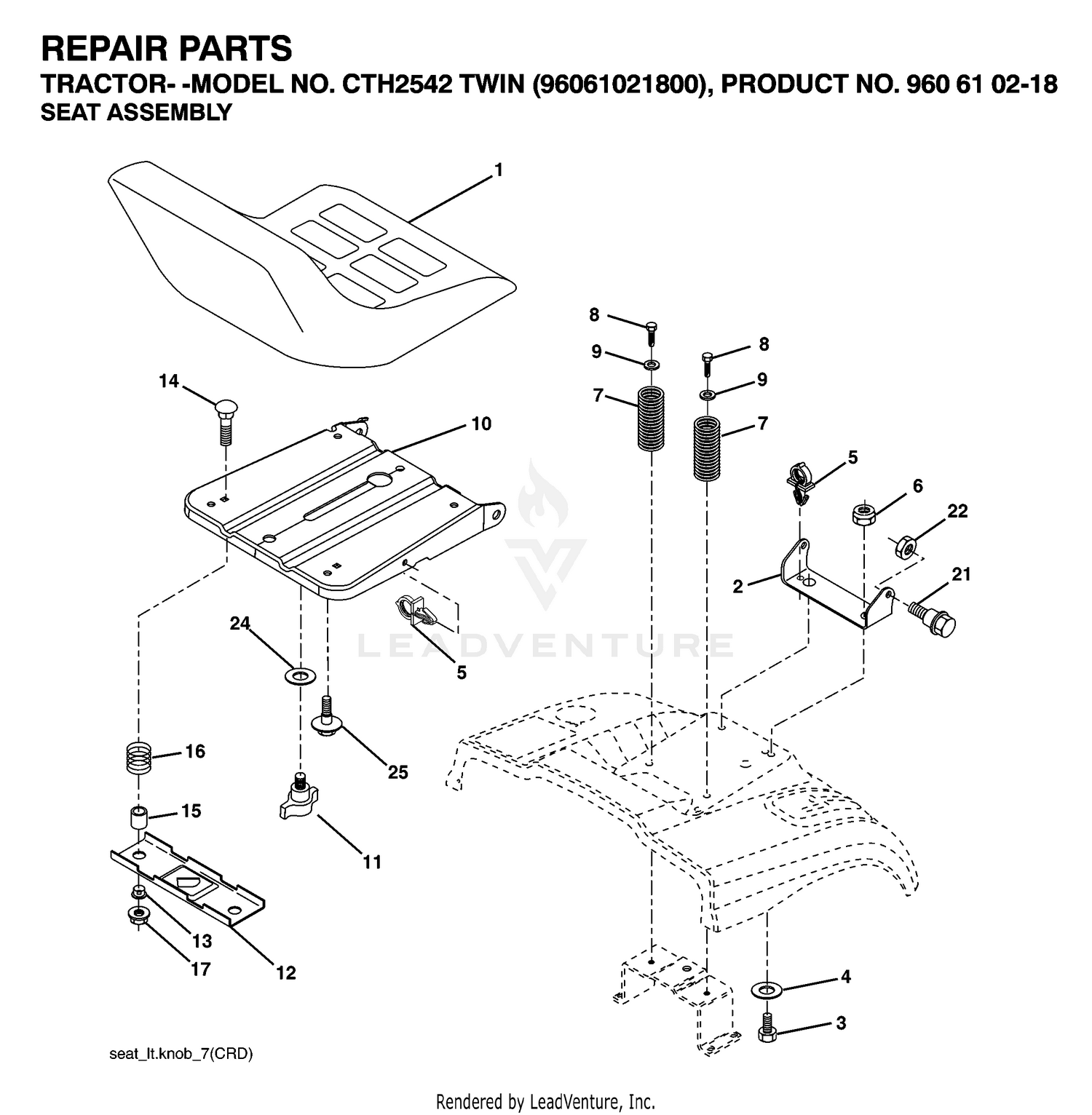

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532188715. Price: $219.99 |
| 2 |
105-8122 |
SEAL-BOOT Price: $19.70 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
105-8120 |
BEARING-CONE Price: $98.15 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
105-8119 |
BEARING-CUP Price: $130.48 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
105-8124 |
STUD-WHEEL Price: $7.84 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
105-8125 |
BOLT-HEAD, SOCKET Price: $6.53 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
3253-18 |
WASHER-LOCK Price: $0.68 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
105-8121 |
PIN-DOWEL Price: $0.41 |
| 11 |
105-8117 |
BEARING-CUP Price: $114.89 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 12 |
105-8118 |
BEARING-CONE Price: $87.73 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK Price: $8.99 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 16 |
105-8113 |
GEAR-RING Price: $633.38 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
105-8132 |
RING-RETAINING Price: $16.29 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
353-990 |
PLUG ASM Price: $10.01 |
| 19 |
105-8138 |
CAP-END Price: $92.32 |
| 21 |
105-8133 |
PLUG-THRUST Price: $36.88 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
105-8123 |
WASHER-THRUST Price: $20.15 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 23 |
105-8131 |
RING-RETAINING Price: $3.05 |
| 24 |
105-8114 |
GEAR-PRIMARY Price: $100.24 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
105-8115 |
SHAFT-DRIVE Price: $134.40 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 26 |
105-8129 |
CARRIER-PRIMARY Price: $691.83 |
| 27 |
105-8139 |
GEAR-SECONDARY Price: $146.04 |
| 28 |
105-8130 |
CARRIER-SECONDARY Price: $726.53 |
| 29 |
105-8136 |
SHIM KIT Price: $177.70 |
