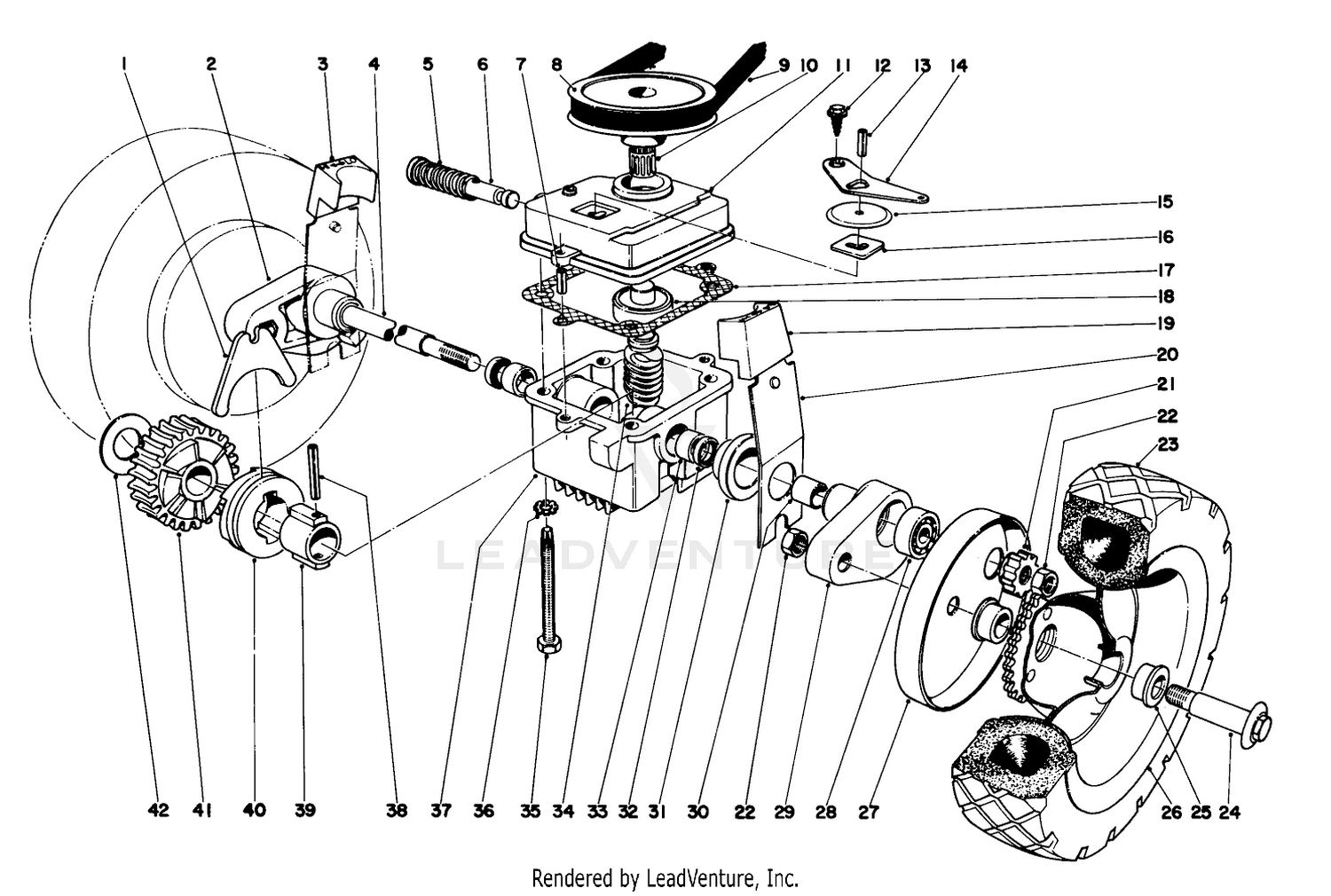

| Ref | Part Number | Description |
|---|
| 1 |
5-3247 |
SHIFTER FORK Price: $11.89 |
| 2 |
2-6359-4 |
Pivot Arm (Incl. Reference #30) Price: Call Us |
| 3 |
25-7740 |
KNOB-ARM This part replaces 6-6230. Price: $3.38 |
| 4 |
3-0720 |
DISCONTINUED Price: Call Us |
| 5 |
3-0731 |
SPRING Price: $6.52 |
| 6 |
46-8240 |
SHIFTER ROD This part replaces 5-3248. Price: $26.92 |
| 8 |
5-1615 |
DISCONTINUED Price: Call Us |
| 9 |
5-4505 |
BELT-V Price: $14.21 |
| 10 |
3290-266 |
Tolerance Ring Price: Call Us |
| 11 |
5-3283 |
DISCONTINUED Price: Call Us |
| 12 |
32144-112 |
SCREW-HWH This part replaces 32140-64. Price: $0.99 |
| 13 |
32121-23 |
PIN-ROLL Price: $1.33 |
| 14 |
5-3252 |
SHIFTER ARM Price: $22.50 |
| 15 |
3-2615 |
DISCONTINUED Price: Call Us |
| 16 |
3-0681 |
LATCH PLATE Price: $37.50 |
| 17 |
3-0734 |
GASKET Price: $5.65 |
| 18 |
47-7460 |
BALL BEARING This part replaces 251-144. Price: $51.08 |
| 19 |
6-6220 |
Arm Knob Price: Call Us |
| 20 |
3-2640-4 |
Spring Arm Price: Call Us |
| 21 |
3-0738 |
PINION GEAR Price: $29.94 |
| 22 |
3296-6 |
NUT-LOCK This part replaces 32146-12. Price: $1.49 |
| 23 |
5-3543 |
TIRE Price: $35.14 |
| 24 |
26-4430 |
WHEEL BOLT This part replaces 3-5117. Price: $31.88 |
| 25 |
5-4504 |
DISCONTINUED Price: Call Us |
| 26 |
11-1279 |
DISCONTINUED This part replaces 10-9820. Price: Call Us |
| 27 |
3-5235-4 |
Wheel Cover Price: Call Us |
| 29 |
2-6369-4 |
Pivot Arm (Incl. Ref. #30) Price: Call Us |
| 30 |
256-1 |
BUSHING Price: $21.99 |
| 31 |
5-0745 |
DISCONTINUED Price: Call Us |
| 32 |
47-7260 |
SEAL This part replaces 253-86. Price: $5.36 |
| 33 |
47-2890 |
BUSHING This part replaces 256-110. Price: $3.19 |
| 34 |
5-1616 |
Worm Shaft Price: Call Us |
| 35 |
32104-76 |
SCREW-HWHTF This part replaces 32104-63. Price: $2.29 |
| 36 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 37 |
5-1459 |
DISCONTINUED Price: Call Us |
| 38 |
3212-40 |
Roll Pin Price: Call Us |
| 39 |
3-0721 |
SLEEVE Price: $29.03 |
| 40 |
19-5660 |
CLUTCH JAW This part replaces 3-0722. Price: $26.27 |
| 41 |
3-0723 |
Worm Gear Price: Call Us |
| 42 |
3-0724 |
THRUST WASHER Price: $5.65 |
