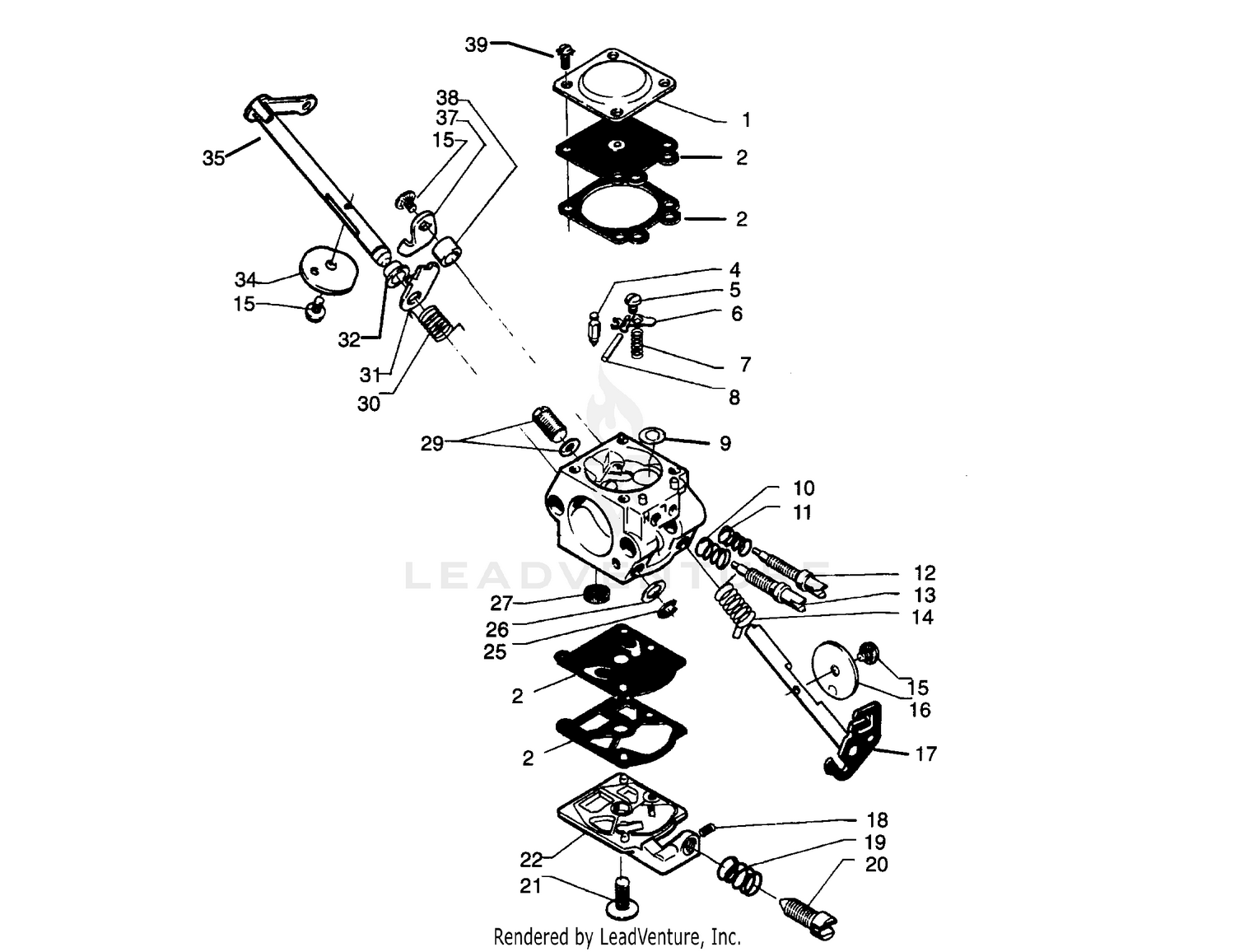

CARBURETOR BREAKDOWN
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 137-6120 | LONG REAR ROLLER ASM (3IN DIA)(27IN) This part replaces 112-8915. Price: $448.76 |
| 1 | 505316754 | Cover Price: $2.99 |
| 2 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 2 | 502103501 | Gasket Kit Price: $17.99 |
| 3 | 119-0626 | SHIM-ROLLER Price: $3.23 |
| 4 | 503563401 | Needle Price: $2.99 |
| 5 | 106-3924 | BRACKET-ROLLER, REAR Price: $23.58 |
| 5 | 505316717 | Screw Price: $1.99 |
| 6 | 3230-26 | SCREW-CARR Price: $3.99 |
| 6 | 505520127 | Metering Lever Price: $3.99 |
| 7 | 117-0960 | PLASTIC WIEHLE ROLLER ASM Price: $482.64 |
| 7 | 504350905 | Spring Price: $0.99 |
| 8 | 32128-20 | NUT-HF Price: $0.99 |
| 8 | 505520125 | Pin Price: $1.99 |
| 9 | 322-16 | SCREW-HH Price: $3.39 |
| 9 | 504100011 | Ring Price: $1.99 |
| 10 | 120-0404 | BRACKET-HIGH HOC (LH) Price: $71.73 |
| 10 | 120-0405 | BRACKET-HIGH HOC (RH) Price: $71.73 |
| 10 | 504210049 | Spring Price: $4.99 |
| 11 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 11 | 530035293 | Needle Spring-Low Speed This part replaces 504210050. Price: $1.99 |
| 12 | 48-9220 | WASHER-PLAIN Price: $0.87 |
| 12 | 502102901 | Low Speed Screw Price: $2.99 |
| 13 | 3231-4 | SCREW-CARR Price: $3.59 |
| 13 | 502102801 | High Speed Screw Price: $2.99 |
| 14 | 107-4026 | SCREW-HH Price: $5.28 |
| 14 | 505316760 | Spring Price: $7.79 |
| 15 | 501468701 | Screw Price: $2.99 |
| 15 | 94-6936 | WASHER-HARDENED Price: $0.58 |
| 16 | 502114401 | Valve Price: $1.99 |
| 17 | 503570201 | Shaft Ass'y. Price: $3.99 |
| 18 | 501468401 | Spring Price: $3.99 |
| 19 | 501667801 | Spring Price: $1.99 |
| 20 | 503104701 | Adjusting Screw Price: $1.99 |
| 21 | 501466901 | Screw Price: $1.99 |
| 22 | 502102101 | Cover Price: $3.99 |
| 23 | 502103501 | Gasket Price: $17.99 |
| 24 | 502103501 | Diaphragm Price: $17.99 |
| 25 | 119-0649 | TRIM/HD COLLAR KIT Price: $24.38 |
| 25 | 502119801 | Clip Price: $2.99 |
| 26 | 506028301 | Ring Price: $1.99 |
| 27 | 501666101 | Screen Price: $3.99 |
| 29 | 503109901 | Valve Ass'y. Price: $17.99 |
| 30 | 506028201 | Spring Price: $1.99 |
| 31 | 505316782 | Plate Price: $1.99 |
| 32 | 502103101 | Bushing Price: $1.99 |
| 33 | 501468701 | Screw Price: $2.99 |
| 34 | 502103201 | Valve Price: Call Us |
| 35 | 503592201 | Shaft Ass'y. Price: $3.33 |
| 36 | 501468701 | Screw Price: $2.99 |
| 37 | 506028001 | Cam Price: $2.99 |
| 38 | 502103001 | Spacer Price: $1.99 |
