| Ref | Part Number | Description |
|---|
| 1 |
3219-14 |
NUT-HEX Price: $0.25 |
| 2 |
38-1670 |
MTNG BRKT W/38-1660 Price: $16.06 |
| 3 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 4 |
3290-134 |
SCREW Price: $0.27 |
| 5 |
38-1650 |
FUEL GAUGE Price: $185.83 |
| 6 |
44-2220 |
LEAD WIRE ASM Price: $9.24 |
| 7 |
233-35 |
KNOB Price: $8.06 |
| 8 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 9 |
218-533 |
LENS Price: $17.62 |
| 10 |
27-2360 |
SWITCH Price: $46.56 |
| 11 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 12 |
83-0820 |
GAUGE - AMMETER This part replaces 38-1660. Price: $76.09 |
| 13 |
218-539 |
DISCONTINUED Price: Call Us |
| 14 |
42-9190 |
GLOW LAMP (F/W & PPP) Price: $89.59 |
| 15 |
26-6750 |
ENG TEMP SWITCH GAGE Price: $332.79 |
| 16 |
43-3970-03 |
INSTRUMENT PANEL This part replaces 43-3970. Price: $111.29 |
| 17 |
218-473 |
BOOT-SWITCH Price: $17.61 |
| 18 |
26-6740 |
TEMP RESET RELAY Price: $165.84 |
| 19 |
6-1659 |
SWITCH & BOOT ASM Price: $78.15 |
| 21 |
43-4000 |
CIRCUIT BREAKER Price: $116.55 |
| 22 |
3250-17 |
SCREW-PPH Price: $1.76 |
| 23 |
43-3990 |
CONTROL-THROTTLE Price: $49.39 |
| 24 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 25 |
43-0410 |
REGULATOR (F/W & PPP) Price: $416.45 |
| 26 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 27 |
43-1880 |
CONT UNIT (F/W ENG&PPP) Price: $434.93 |
| 28 |
3290-424 |
SCREW-SHH Price: $2.54 |
| 29 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 30 |
321-4 |
SCREW-HH Price: $0.99 |
| 31 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 32 |
3217-6 |
NUT-HEX Price: $1.19 |
| 33 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 34 |
43-3820 |
BUZZER SPACER Price: $2.80 |
| 35 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 36 |
119-2865 |
KIT-GM300 BUZZER, LOW OIL PRESSURE This part replaces 22-7820. Price: $135.43 |
| 37 |
3217-26 |
NUT-HEX Price: $0.25 |
| 38 |
3255-5 |
WASHER-LOCK, EXT Price: $0.25 |
| 39 |
218-515 |
BRACKET Price: $12.11 |
| 40 |
120-2244 |
HOURMETER This part replaces 12-9990. Price: $48.06 |
| 41 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 42 |
63-7590 |
RELAY Price: $78.15 |
| 43 |
70-1190 |
DISCONTINUED Price: Call Us |
| 44 |
321-6 |
SCREW-HH Price: $0.25 |
| 45 |
3256-1 |
WASHER-FLAT Price: $0.39 |

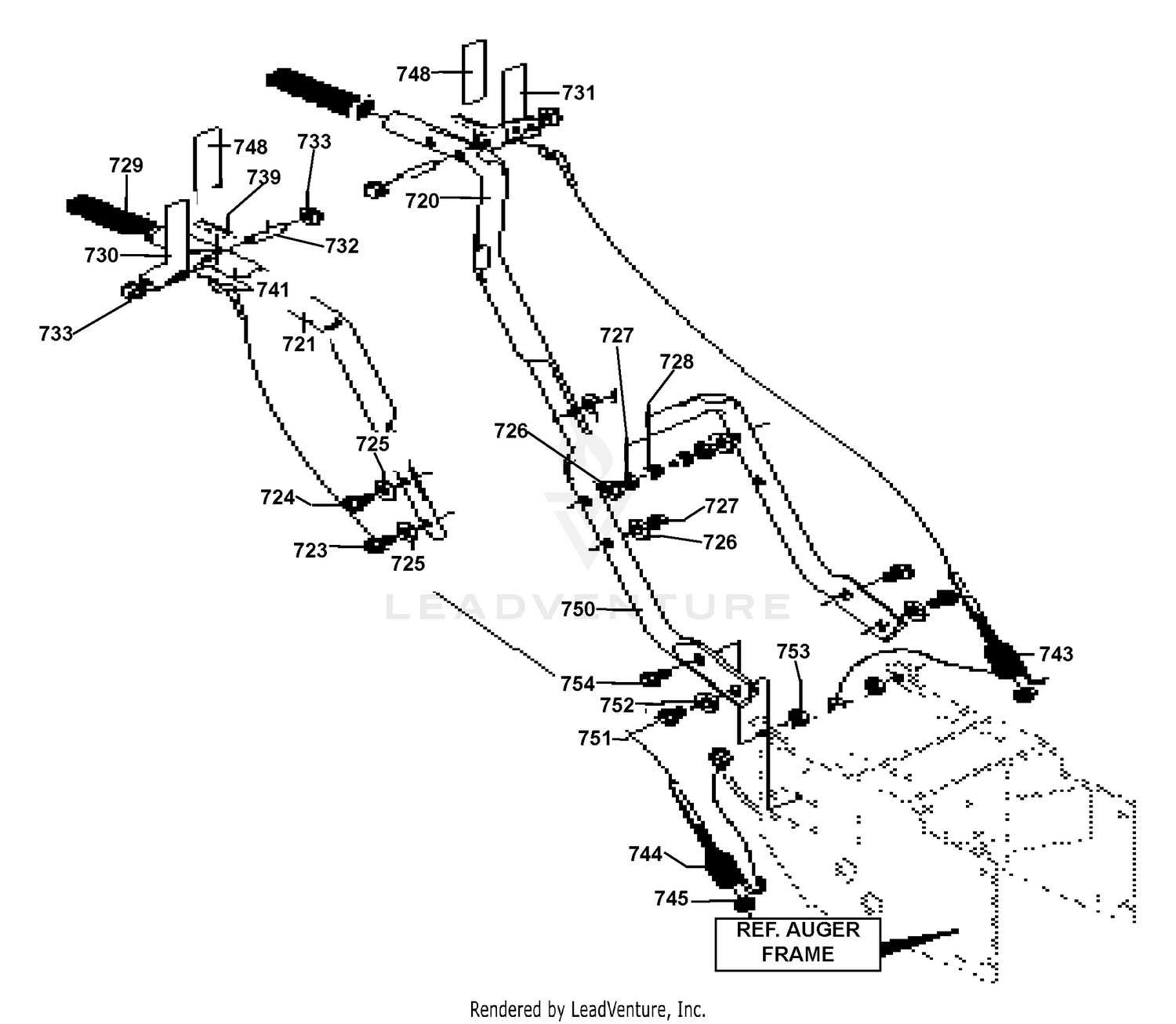

| 720 |
601001542 |
UPPER HANDLE, LH Price: $10.99 |
| 721 |
601001543 |
UPPER HANDLE, RH Price: $14.99 |
| 723 |
601001555 |
SCREW Price: $2.53 |
| 724 |
601001544 |
SCREW Price: $3.99 |
| 725 |
601000020 |
WASHER, FLAT .406X .81X. Price: $2.53 |
| 726 |
601000075 |
SCREW, 5/16-18X2.25 HHC Price: $9.91 |
| 727 |
601002407 |
NUT 3/8-16 This part replaces 601000060. Price: $3.99 |
| 728 |
601001545 |
STOP Price: $5.99 |
| 729 |
601001546 |
HANDLE GRIP Price: $3.36 |
| 730 |
601002044 |
HANDLE-CLUTCH This part replaces 601002429. Price: $10.24 |
| 731 |
601002045 |
ASSY, CLUTCH LEVER LH Price: $7.25 |
| 732 |
601001549 |
PIVOT PIN This part replaces 601002379. Price: $3.29 |
| 733 |
601000516 |
NUT, PUSH ON CAP .312 OD Price: $3.99 |
| 739 |
601001550 |
BUMPER Price: $5.99 |
| 741 |
601001551 |
CLUTCH CABLE Price: $23.99 |
| 743 |
601001552 |
SPRING TENSION Price: $6.99 |
| 744 |
601001553 |
CLUTCH SPRING Price: $7.99 |
| 745 |
601002318 |
RP NUT Price: $9.99 |
| 748 |
601002380 |
CLUTCH HANDLE GRIP Price: $1.76 |
| 750 |
601001554 |
LOWER HANDLE Price: $31.97 |
| 751 |
601000520 |
SCREW, 5/16-18X .75 WAHHT Price: $1.74 |
| 752 |
601000023 |
WASHER, HVSPTLK .328X.60X Price: $2.99 |
