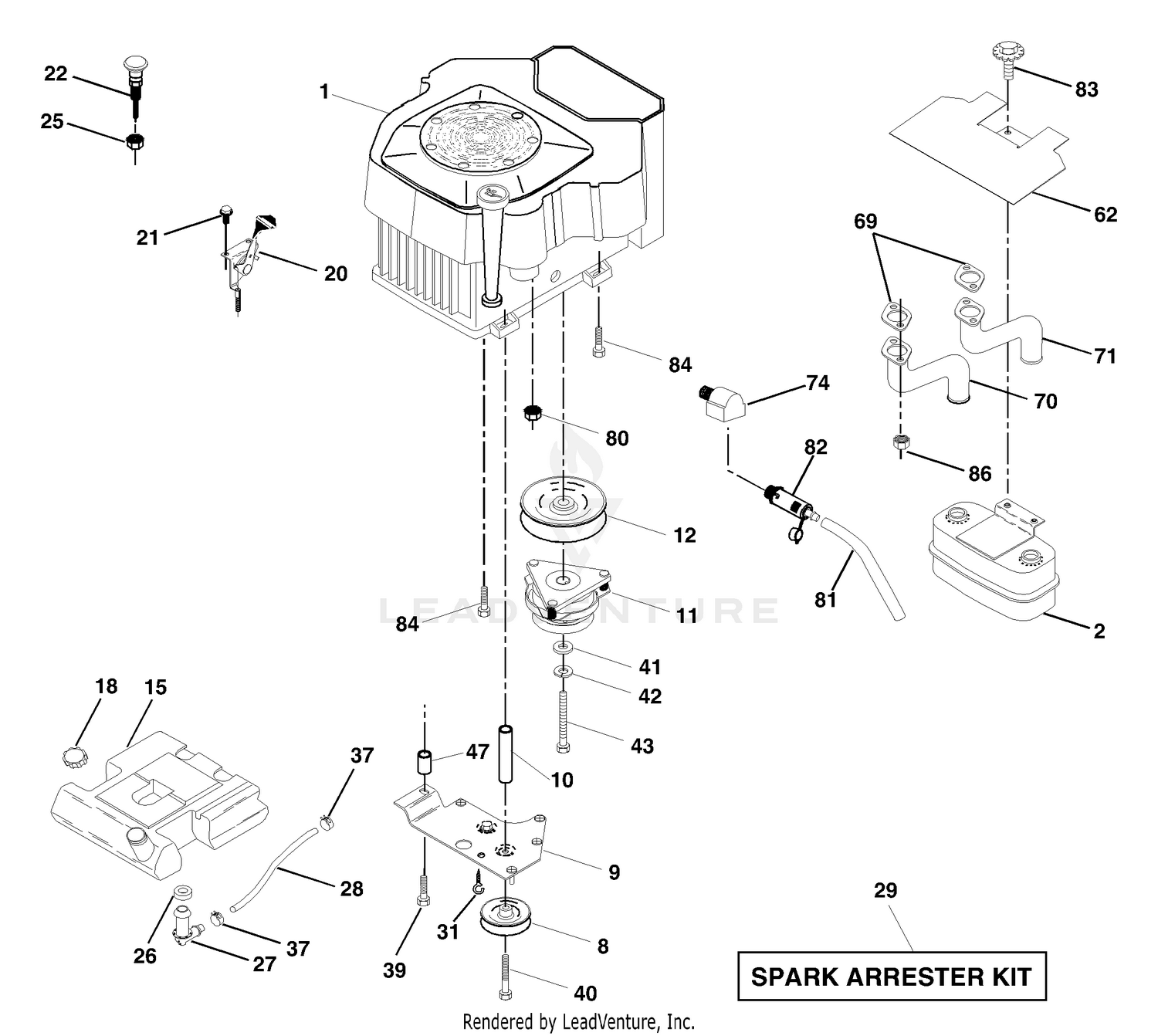

| Ref | Part Number | Description |
|---|
| 1 |
94-3145 |
SCREW-PULLEY Price: $9.84 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
74-8080 |
WASHER Price: $4.77 |
| 3 |
94-3144 |
PULLEY-CRANKSHAFT Price: $766.47 |
| 4 |
74-8100 |
GEAR-PINION Price: $58.79 |
| 5 |
98-3833 |
GEAR - OIL PUMP This part replaces 74-8110. Price: $26.24 |
| 6 |
74-8120 |
KEY-WOODRUFF Price: $3.36 |
| 7 |
94-3150 |
SCREW-HH Price: $1.50 |
| 8 |
532139123 |
PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99 |
| 8 |
74-7560 |
LOCKWASHER This part replaces 94-3151. Price: $0.67 |
| 9 |
532177748 |
KEEPER ASM BELT ENGINE Price: $12.99 |
| 9 |
74-8140 |
COVER Price: $137.43 |
| 10 |
532175287 |
BUSHING Price: $17.99 |
| 10 |
74-8150 |
GASKET-COVER Price: $4.08 |
| 11 |
532179335 |
CLUTCH MZ ZTR GT.48/54"1.125" Price: $299.99 |
| 11 |
94-3148 |
SEAL Price: $33.41 |
| 12 |
532143996 |
PULLEY ENG VGT ELECT CLUTCH Price: $37.99 |
| 12 |
74-8170 |
BEARING SET (STD) Price: $208.01 |
| 13 |
94-3141 |
DISCONTINUED Price: Call Us |
| 14 |
74-8230 |
SHAFT-CRANK Price: $3,552.00 |
| 15 |
532179115 |
TANK.FUEL.5.0 LEFT.FILL.YTGT Price: $89.99 |
| 15 |
74-8240 |
DISCONTINUED Price: Call Us |
| 16 |
74-8250 |
PIN This part replaces 74-7990. Price: $0.97 |
| 17 |
94-3149 |
GEAR-FLYWHEEL Price: $113.49 |
| 18 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 18 |
74-8270 |
DISCONTINUED Price: Call Us |
| 19 |
74-8280 |
SCREW-HH Price: $4.63 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 20 |
74-8290 |
DISCONTINUED Price: Call Us |
| 21 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532171875. Price: $14.99 |
| 21 |
74-8300 |
CLIP-PIN, PISTON Price: $2.96 |
| 22 |
532175441 |
CHOKE CONTROL This part replaces 532178148. Price: $24.99 |
| 22 |
74-8310 |
PIN-PISTON Price: $24.33 |
| 23 |
94-3158 |
PISTON RING SET Price: $233.60 |
| 24 |
98-9965 |
DISCONTINUED This part replaces 94-3154. Price: Call Us |
| 25 |
74-8360 |
CONNECTING ROD This part replaces 94-3153. Price: $1,118.95 |
| 25 |
873920600 |
Nut Keps 3/8-24 Price: $3.99 |
| 26 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 27 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 27 |
74-8380 |
DISCONTINUED Price: Call Us |
| 28 |
532008542 |
FUEL LINE 42" This part replaces 532124703. Price: $5.99 |
| 28 |
74-8400 |
BOLT-ROD, CONNECTING Price: $23.09 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
74-8420 |
PISTON SET Price: $3,551.52 |
| 29 |
94-3157 |
PISTON SET Price: $3,570.53 |
| 31 |
532145006 |
PUSH CLIP Price: $2.99 |
| 33 |
94-3152 |
SCREW-HH Price: $2.62 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 39 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 40 |
817490664 |
Screw TT 3/8-16 x 4 unc Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 47 |
532175288 |
BUSHING Price: $4.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 70 |
532175545 |
TUBE EXHAUST LH Price: $68.99 |
| 71 |
532175546 |
TUBE.EXHAUST.LV675.COMMAND.RH Price: $59.99 |
| 74 |
532162295 |
ELBOW STREET BRASS Price: $29.99 |
| 80 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 83 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 84 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
