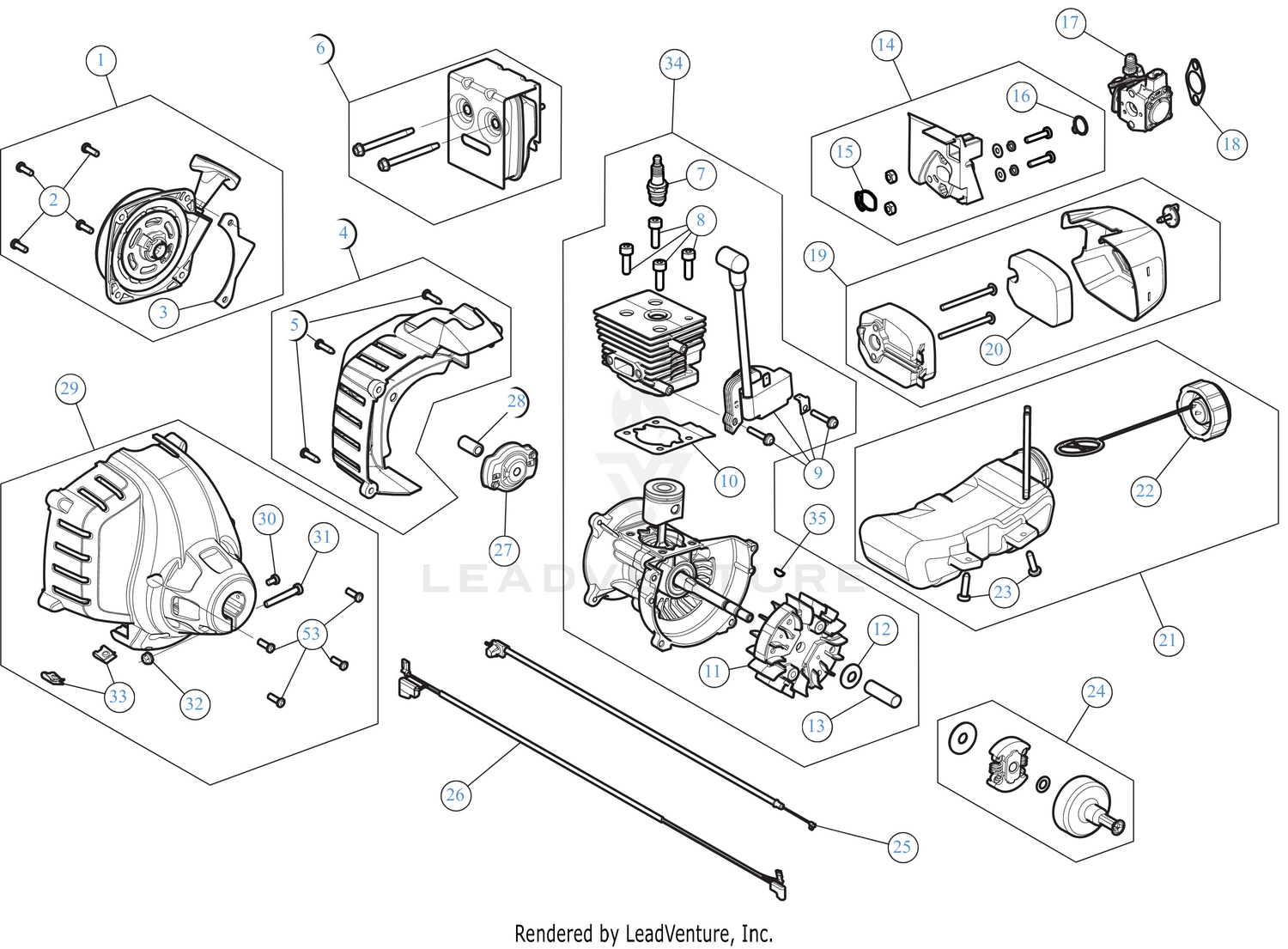

Engine Assembly
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 841-015769S | STARTER ASSEMBLY Price: $17.16 |
| 2 | 1964 | SCREW:10-32X.5 This part replaces 791-181862. Price: $3.89 |
| 5 | 791-181345 | SCREW, #8-16X.750 PH Price: $3.75 |
| 6 | 753-08745 | MUFFLER ASSEMBLY Price: $23.25 |
| 7 | 753-06847 | SPARK PLUG Price: $6.35 |
| 8 | 710-04715 | SCREW 1/4 x 20 x .8125 Price: $6.01 |
| 9 | 753-06892 | MODULE Price: $25.19 |
| 10 | 753-06827 | GASKET CYL Price: $2.87 |
| 11 | 753-06246 | FLYWHEEL ASSEMBLY 27CC Price: $19.20 |
| 12 | 753-06247 | BELL WASHER Price: $3.05 |
| 13 | 753-06248 | SPACER Price: $2.94 |
| 15 | 753-06184 | O-RING Price: $2.93 |
| 16 | 753-06185 | O-RING Price: $2.93 |
| 17 | 753-06190 | CARBURETOR Price: $31.13 |
| 18 | 753-06253 | GASKET CARB Price: $2.98 |
| 20 | 753-06954 | AIR FILTER Price: $2.59 |
| 22 | 753-06857 | FUEL CAP Price: $6.73 |
| 23 | 791-181930 | SCREW:10-6 x .75 Price: $5.95 |
| 24 | 753-05860 | SMALL CLUTCH ASSEMBLY W/SMALL DRUM Price: $22.50 |
| 25 | 753-06570 | THROTTLE CABLE Price: $6.79 |
| 26 | 753-05877 | LEAD WIRES Price: $8.69 |
| 27 | 753-06091 | PAWL ASSEMBLY AC5 Price: $7.90 |
| 28 | 753-06104 | ELECTRIC START ADP Price: $3.61 |
| 30 | 791-182519 | SCREW, 8-32 x .312 P Price: $4.37 |
| 31 | 9689A | SCREW Price: $9.81 |
| 32 | 712-0161 | HEX NUT Price: $4.02 |
| 33 | 791-182366 | NUT, TINNERMAN U-T Price: $4.90 |
