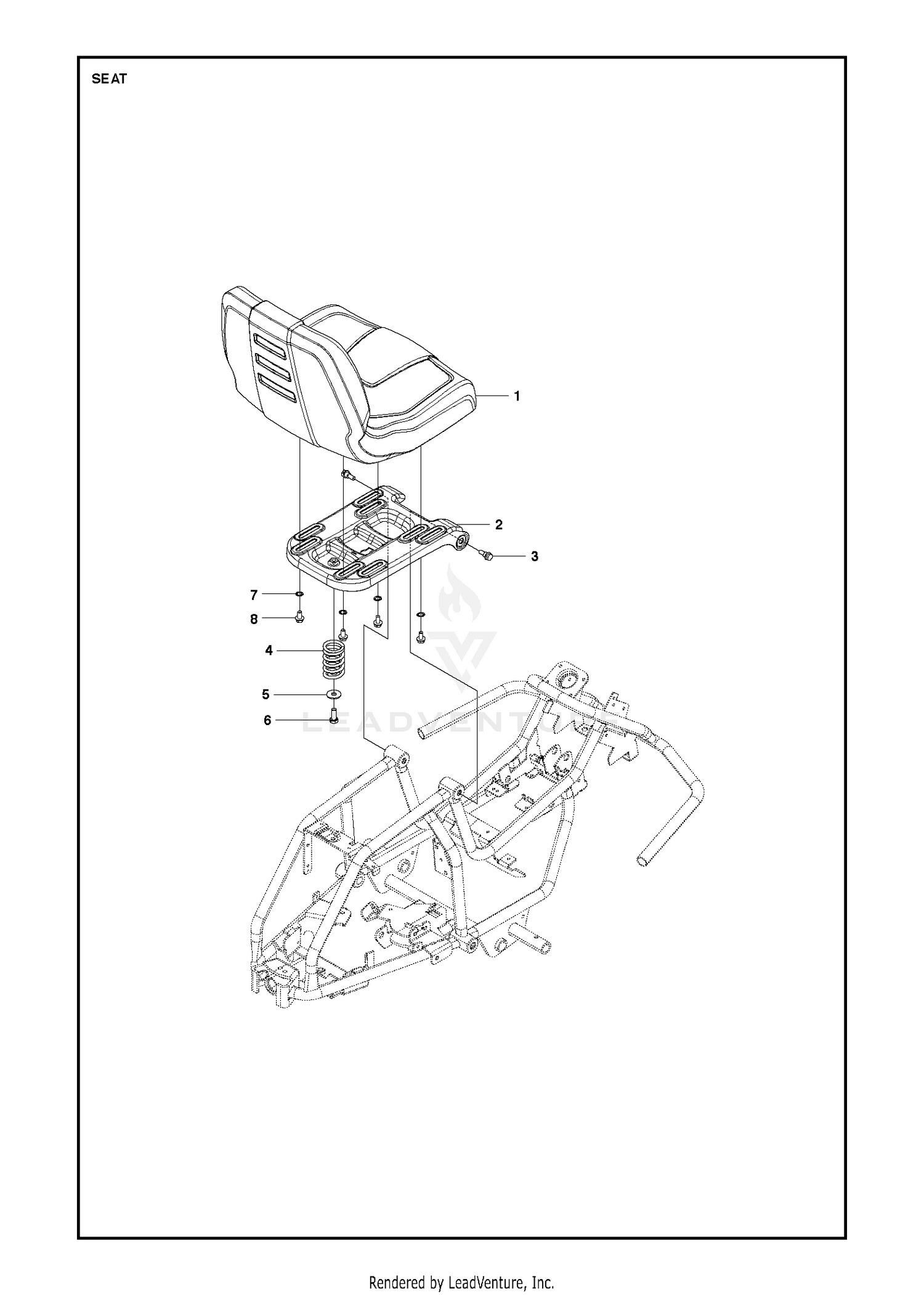

SEAT
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 525814801 | SEAT Price: $109.99 |
| 2 | 581041501 | SEAT BRACKET Price: $64.99 |
| 3 | 506597401 | BOLT Price: $5.99 |
| 4 | 506915301 | SEAT SPRING Price: $17.99 |
| 6 | 725249371 | Screw M10x25 Price: $1.82 |
| 7 | 735216400 | Washer Price: $1.29 |
| 8 | 506570103 | BOLT Price: $3.99 |
| 10 | 105-3786 | SPRING-START Price: $3.91 |
| 20 | 98-9681 | SPRING-GOVERNOR Price: $12.06 |
| 30 | 115-4502 | FORK LEVER ASM Price: $551.34 |
| 40 | 107-9084 | LEVER-FORK Price: $101.37 |
| 50 | 107-9085 | SHAFT-LEVER, FORK Price: $24.90 |
| 60 | 107-9086 | SHAFT-LEVER, FORK Price: $24.90 |
| 70 | 98-9570 | BEARING-MINIATURIZE Price: $13.60 |
| 80 | 115-4122 | COVER-SHAFT, FORK LEVER Price: $6.97 |
| 90 | 98-9682 | GASKET Price: $0.95 |
| 100 | 98-9350 | BOLT Price: $0.98 |
| 110 | 98-9567 | COLLAR Price: $3.78 |
