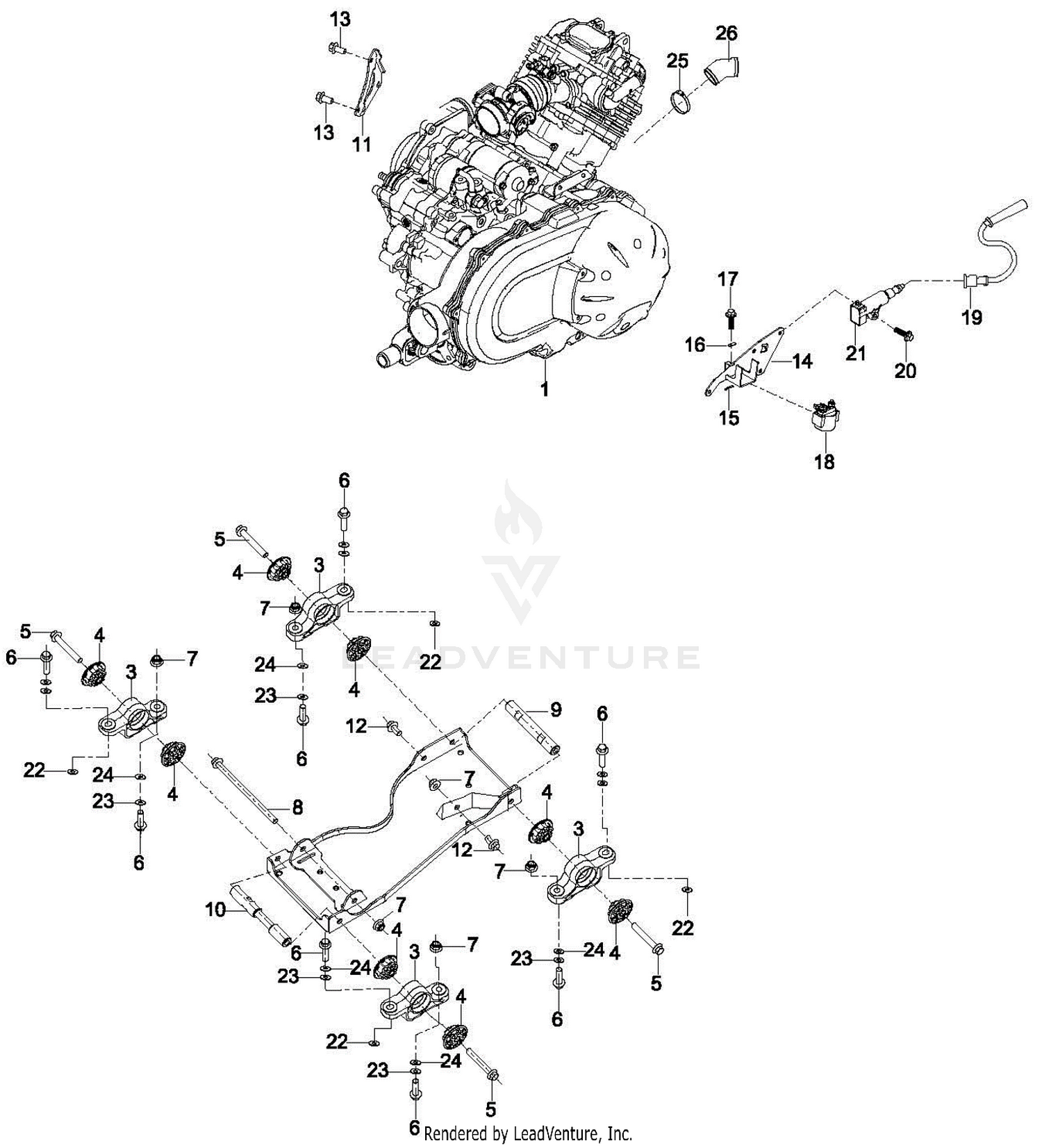

| Ref | Part Number | Description |
|---|
| 1 |
503-03774 |
COMPLETE ENGINE 750cc Price: $5,542.94 |
| 1 |
503-03775 |
COMPLETE ENGINE 550cc Price: $5,163.20 |
| 2 |
603-06579 |
ENGINE CRADLE Price: $37.86 |
| 3 |
619-05730 |
ENGINE MOUNT Price: $18.55 |
| 4 |
735-05919 |
RUBBER ENGINE MOUNT Price: $28.65 |
| 5 |
503-00282 |
HEXAGON FLANGE BOLTM10X1.25X70 Price: $5.64 |
| 6 |
503-02913 |
HEX BOLT-FLG HEAD 10x1.25x35 Price: $2.45 |
| 7 |
503-01375 |
LOCK NUT M10X1.25 Price: $6.13 |
| 8 |
503-01377 |
HEX HEAD BOLT M10X1.25-175 Price: $9.25 |
| 9 |
750-08711 |
SPACER ROD (REAR) Price: $13.72 |
| 10 |
750-08710 |
SPACER ROD (FRONT) Price: $12.40 |
| 11 |
703-18469 |
ENGINE MOUNT BRACKET Price: $64.45 |
| 12 |
503-00409 |
HEX FLANGE BOLT M10X1.25X20 Price: $5.36 |
| 13 |
503-00027 |
CROSS PLATE HEAD SCREW M8X16 Price: $5.04 |
| 14 |
503-02761 |
IGNITION COIL MOUNT Price: $21.76 |
| 15 |
503-02826 |
FOAM CUSHION Price: $1.60 |
| 16 |
503-02770 |
STARTER RELAY LATCH Price: $1.60 |
| 17 |
503-00021 |
CROSS PLATE HEAD SCREW M6X12 Price: $4.85 |
| 18 |
503-02735 |
STARTER RELAY Price: $63.36 |
| 19 |
503-00545 |
IGNITION CABLE (750cc Engine) Price: $71.48 |
| 19 |
503-01855 |
IGNITION CABLE (550cc Engine) Price: $53.32 |
| 20 |
503-00398 |
HEXAGON FLANGE BOLT M6X40 Price: $4.69 |
| 21 |
503-00543 |
IGNITION COIL Price: $140.28 |
| 22 |
503-01539 |
WASHER - FLAT 10X28X2 Not Available Price: |
| 23 |
503-00064 |
SPRING WASHER Price: $5.36 |
| 24 |
503-01395 |
WASHER 10 Price: $3.94 |
| 25 |
503-00950 |
HOSE CLAMP ASSEMBLY Price: $12.55 |
