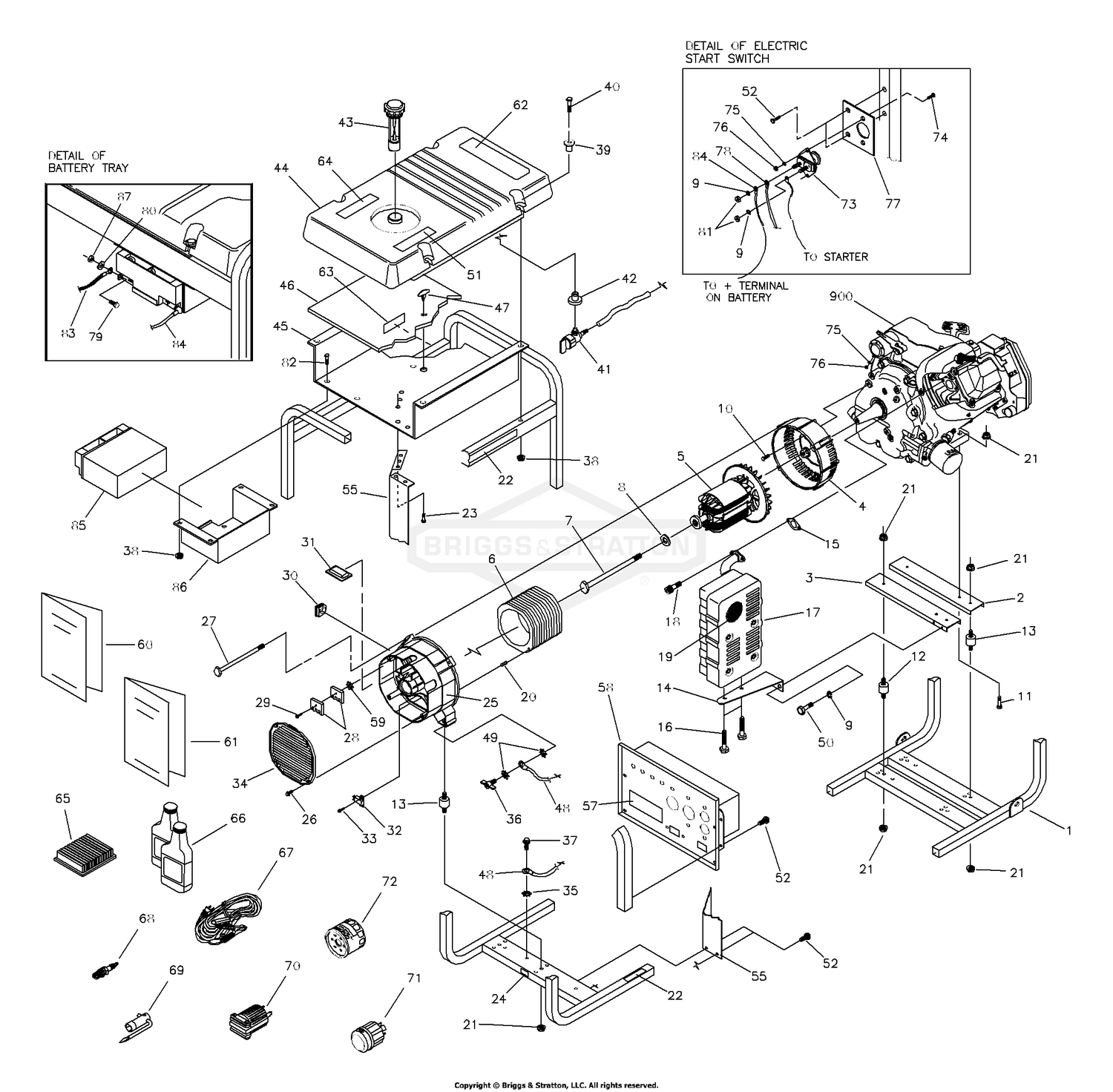

| Ref | Part Number | Description |
|---|
| 1 |
G92432GS |
CRADLE Price: $258.95 |
| 2 |
G92531GS |
SUPPORT, Engine Price: $13.80 |
| 3 |
N92731GS |
SUPPORT, Eng/Muffler This part replaces G92731GS. Price: $19.95 |
| 4 |
92247GS |
HOUSING, Engine Adapter Price: $86.95 |
| 5 |
92679GGS |
ASSY, Rotor Price: Call Us |
| 6 |
94981AGS |
ASSY, Stator Price: Call Us |
| 7 |
25254GS |
SCREW Price: $9.20 |
| 8 |
96796GS |
WASHER Price: $2.79 |
| 9 |
22129GS |
WASHER, Lock Price: $2.61 |
| 10 |
86307GS |
SCREW Price: $2.19 |
| 11 |
5025011X14SM |
BOLT, 5/16-18 X 1-3/4 This part replaces 22531GS. Price: $3.40 |
| 12 |
92609GS |
MOUNT,Vibration Price: $24.49 |
| 13 |
82857GS |
MOUNT,Vibration Price: $10.31 |
| 14 |
92532GS |
BRACKET, Muffler Price: $18.18 |
| 15 |
90239GS |
GASKET, Exhaust Price: $3.73 |
| 16 |
66476GS |
SCREW, w/ Washer Price: $2.94 |
| 17 |
A7433GS |
MUFFLER Price: $94.60 |
| 18 |
40976GS |
SCREW Price: $2.79 |
| 19 |
83083GS |
SCREEN, Spark Arrest Price: $8.49 |
| 20 |
81917GS |
PIN, Roll Price: $2.79 |
| 21 |
189160GS |
NUT Price: $2.40 |
| 22 |
77816GS |
DECAL, Caution, Hot Muffler Price: $3.95 |
| 23 |
56893GS |
SCREW Price: $1.95 |
| 24 |
B4986GS |
DECAL, Ground Price: $2.75 |
| 25 |
SRV66825DGS |
CARRIER, Rear Bearing Price: $120.36 |
| 26 |
74908GS |
SCREW Price: $2.69 |
| 27 |
86308BGS |
BOLT Price: $1.85 |
| 29 |
66849AGS |
SCREW Price: $4.02 |
| 30 |
67022GS |
GROMMET, Rubber Price: $2.55 |
| 31 |
84132GS |
ASSY, Power Regulator Price: $31.80 |
| 32 |
66386GS |
ASSY, Brush Holder Price: $21.52 |
| 33 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849GS. Price: $2.96 |
| 34 |
B4871GS |
COVER, Bearing Carrier Price: $4.15 |
| 35 |
22769GS |
WASHER, Shakeproof Price: $2.49 |
| 36 |
86494GS |
SCREW,Wing Price: $2.51 |
| 37 |
313085GS |
SCREW This part replaces 86292GS. Price: $3.35 |
| 38 |
77395GS |
NUT, Lock Price: $3.09 |
| 39 |
83465GS |
GROMMET,Tank Price: $3.39 |
| 40 |
78831BGS |
SCREW Price: $1.60 |
| 41 |
192980GS |
Kit, Valve This part replaces 80270GS. Price: $16.43 |
| 42 |
192980GS |
Kit, Valve This part replaces 78299GS. Price: $16.43 |
| 43 |
B4363GS |
CAP, Fuel Gauge Price: $38.55 |
| 45 |
J92039GS |
SHIELD, Heat Price: $23.85 |
| 46 |
92665GS |
INSULATION Price: $10.30 |
| 47 |
85000GS |
CLIP, Insulation Price: $2.59 |
| 48 |
195373GS |
WIRE, Ground This part replaces 14353621GS. Price: $1.85 |
| 49 |
26850GS |
WASHER, Ext. M6 - 1/4" Shakeproof Price: $2.60 |
| 50 |
5025011X6SM |
BOLT, 5/16-18 X 3/4" This part replaces 22142GS. Price: $3.19 |
| 51 |
194799GS |
DECAL, Danger This part replaces 92982GS. Price: $10.48 |
| 52 |
B2153GS |
SCREW Price: $3.95 |
| 55 |
192983GS |
SHIELD, Heat This part replaces J96068GS. Price: $30.99 |
| 57 |
191496GS |
DECAL, Control Panel Price: Call Us |
| 59 |
23762GS |
WASHER, Shakeproof Price: $2.64 |
| 60 |
A8927GS |
MANUAL, Engine Price: Call Us |
| 61 |
191337GS |
MANUAL, Owners Price: Call Us |
| 62 |
93826GS |
DECAL, Start Instructions Price: $1.85 |
| 63 |
73054GS |
DECAL, Fuel Shutoff Price: $7.49 |
| 64 |
188333GS |
DECAL, Gas Fill Price: $20.85 |
| 65 |
73111GS |
ELEMENT, Air Filter Price: $13.15 |
| 66 |
BB3061GS |
BOTTLE, Oil, 28 oz. Price: $12.94 |
| 67 |
65787GPGS |
CABLE, Battery Charge Price: Call Us |
| 68 |
84007216 |
PLUG, SPARK This part replaces 72347GS. Price: $4.59 |
| 69 |
84882GS |
WRENCH, Sparkplug Price: $7.29 |
| 70 |
100523GS |
PLUG, 125V 30A 3-Prong This part replaces 37806GS. Price: $10.65 |
| 71 |
100522GS |
PLUG-120/240V TL20A This part replaces 43483GS. Price: $23.34 |
| 72 |
70185GS |
FILTER, Oil Price: $10.89 |
