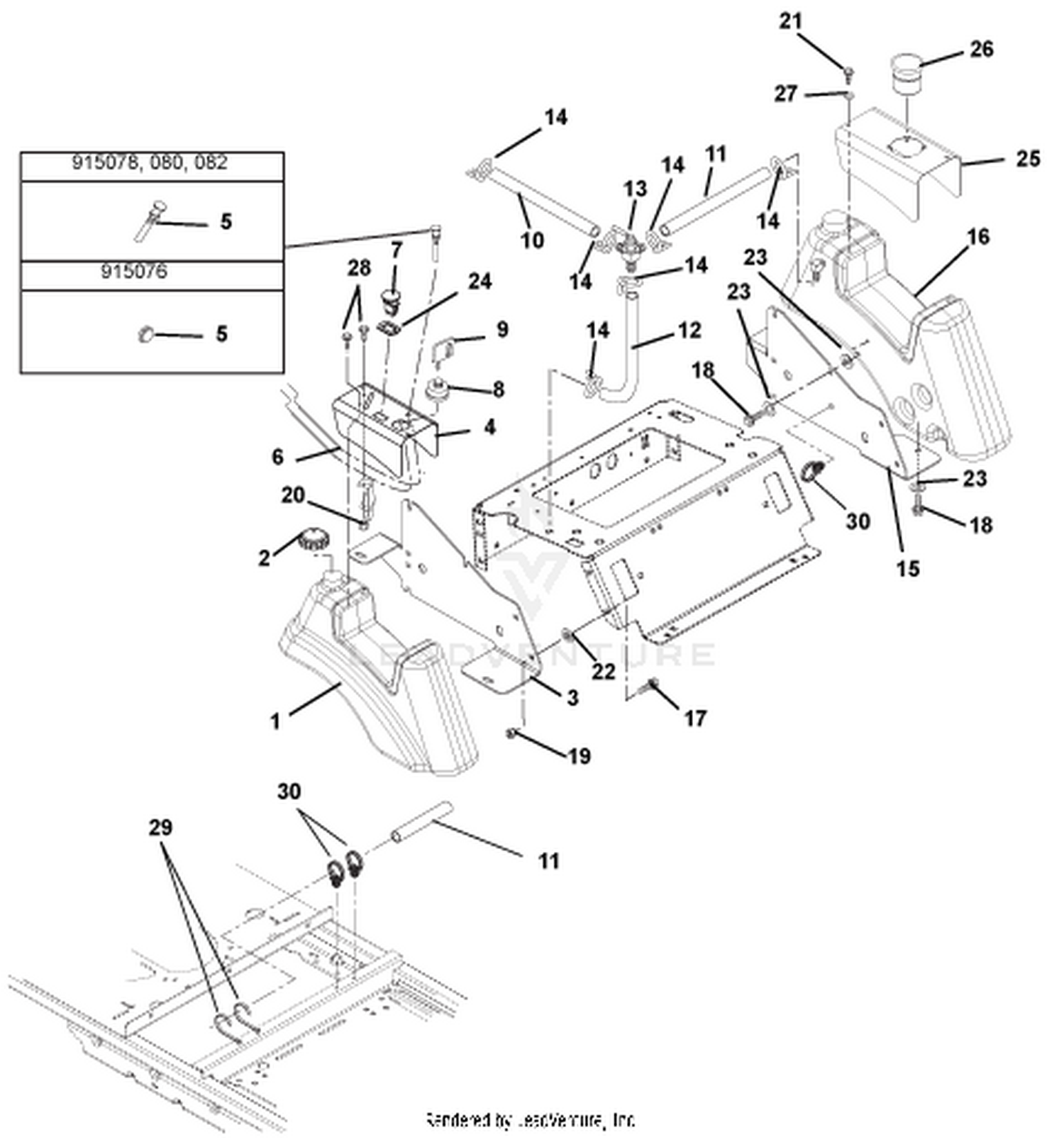

| Ref | Part Number | Description |
|---|
| 1 |
01614100 |
FUEL TANK, RH Price: $211.45 |
| 2 |
01538400 |
FUEL CAP Price: $14.45 |
| 3 |
00296751 |
SEAT PLATE, RH Price: $43.95 |
| 4 |
01614551 |
RH CONSOLE Price: $54.40 |
| 7 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
| 8 |
01588300 |
KEY SWITCH Price: $28.95 |
| 9 |
02460700 |
KEY -W/CAP Price: $9.45 |
| 13 |
09258200 |
VALVE, FUEL Price: $42.95 |
| 14 |
06939100 |
CLAMP-HOSE WIRE .490/.510X.116 Price: $3.45 |
| 15 |
00296851 |
SEAT PLATE, LH Price: $43.95 |
| 16 |
01614000 |
FUEL TANK, LH Price: $209.95 |
| 17 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
| 18 |
07049600 |
BLT-SERHFWH .312-18X.75 YWZC Price: $2.45 |
| 19 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 20 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 21 |
06100003 |
SCR-MCH 10-24X3/8 SL HEX YWZC Price: $1.95 |
| 22 |
00548400 |
RETAINER, .38 PUSH-ON Price: $1.45 |
| 23 |
06401027 |
WSHR,FLT .328X1.00X.094 ZCC This part replaces 06437500. Price: $3.45 |
| 24 |
00289200 |
SHIM,PTO SW (DELTA #972301) Price: $2.55 |
| 25 |
01614451 |
LH CONSOLE Price: $65.45 |
| 26 |
01528500 |
CUPHOLDER Price: $13.95 |
| 27 |
06400004 |
WASHER, FENDER 3/16X3/4 YWZC Price: $1.95 |
| 28 |
05901825 |
BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
| 29 |
00470200 |
CABLE TIE, .18X8.5 50 LB PUSH Price: $0.95 |
