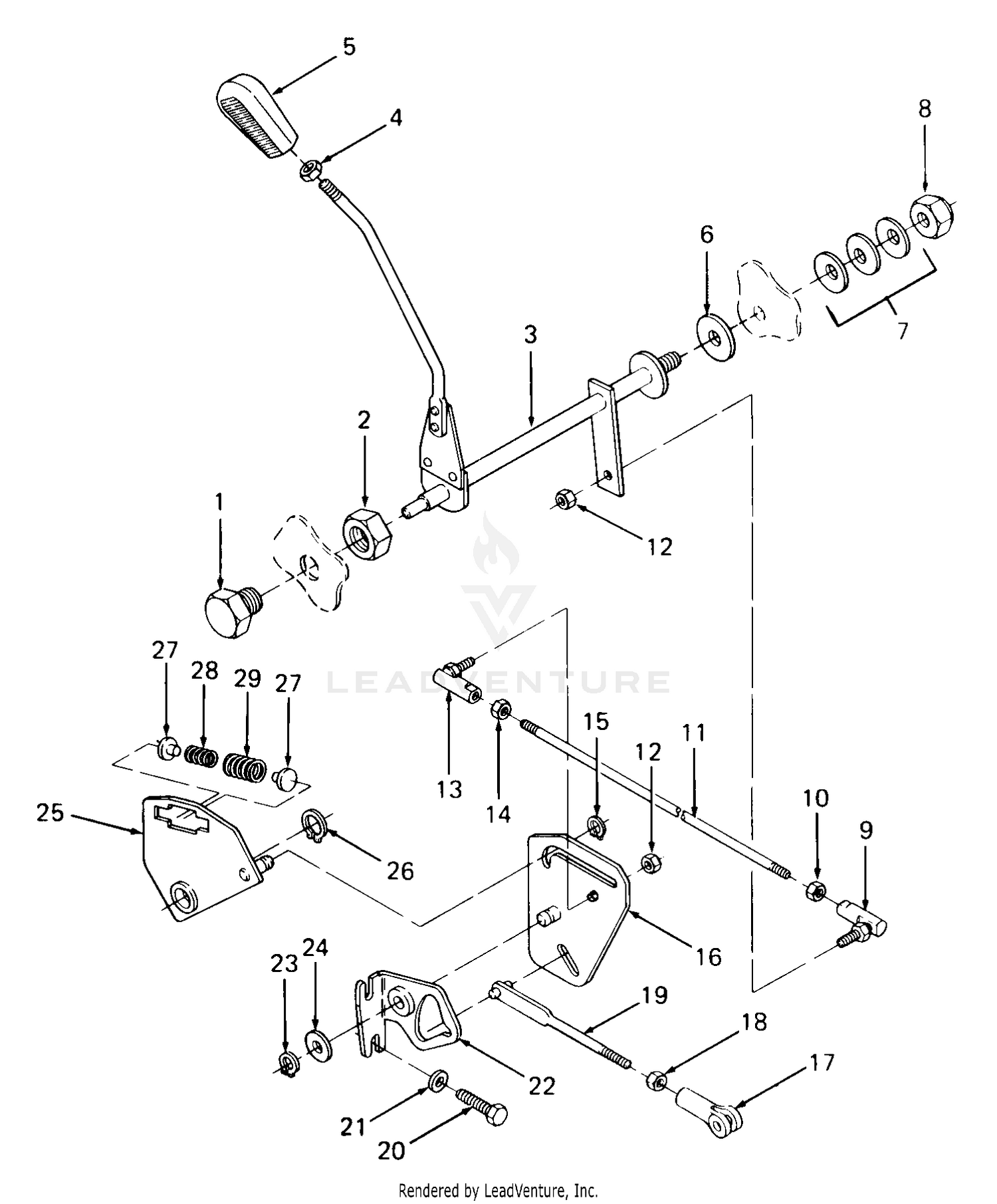

| Ref | Part Number | Description |
|---|
| 1 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 1 |
710-3033 |
BOLT Not Available Price: |
| 2 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 2 |
712-3026 |
Nut, Hex Jam, 3/4-16 GR5 Price: $4.29 |
| 3 |
3220-3 |
NUT-HJ Price: $0.28 |
| 3 |
703-1838 |
CROSS SHAFT ASSEMBLY Not Available Price: |
| 4 |
712-3008 |
HEX JAM NUT 3/8-16 GR5 Price: $4.08 |
| 4 |
76-9690-03 |
ROD-BRAKE This part replaces 76-9690. Price: $52.07 |
| 5 |
731-3108 |
KNOB-SPEED Not Available Price: |
| 6 |
723-3013 |
FRICTION DISC Not Available Price: |
| 7 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 7 |
936-3022 |
BELL WASHER Not Available This part replaces 736-3022. Price: |
| 8 |
712-3053 |
L-NUT 1/2-20 Not Available Price: |
| 8 |
82-5190-03 |
PEDAL-TRACTION This part replaces 82-5190. Price: $140.00 |
| 9 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 9 |
923-3011 |
JOINT-BALL-5/16-24 (R.H.) This part replaces 723-3011. Price: $32.80 |
| 10 |
63-9751 |
DISCONTINUED Price: Call Us |
| 10 |
712-3025 |
Nut, Hex Jam, 5/16-24 Price: $6.24 |
| 11 |
747-3018 |
CONNECTING ROD Not Available Price: |
| 11 |
88-1160 |
DISCONTINUED Price: Call Us |
| 12 |
3274-19 |
SCREW-HSH Price: $1.42 |
| 12 |
712-0237 |
Nut, Hex Center Lock, 5/16-24 This part replaces 712-0305. Price: $4.37 |
| 13 |
92-1367 |
LEVER-TRACTION Price: $84.25 |
| 13 |
923-3012 |
Ball Joint 5/16-24 Thd. This part replaces 723-3012. Price: $37.06 |
| 14 |
323-9 |
SCREW-HH Price: $1.29 |
| 14 |
912-3045 |
Hex Jam Nut 5/16 Thd. L.H. Not Available This part replaces 712-3045. Price: |
| 15 |
716-3000 |
RETAINING RING Not Available Price: |
| 15 |
82-4960 |
PAD-FOOT, BRAKE Price: $27.27 |
| 16 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 16 |
703-0198A |
CAM ASSEMBLY Not Available Price: |
| 17 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 17 |
719-3013 |
Clevis Adjustment Price: $24.95 |
| 18 |
76-9680 |
HUB-BRAKE Price: $54.35 |
| 18 |
912-3001 |
Nut, Jam, 3/8-24 This part replaces 712-3001. Price: $5.94 |
| 19 |
256-90 |
BUSHING-FLANGE Price: $2.92 |
| 19 |
703-0200 |
CONTROL ROD ASSEMBLY Not Available Price: |
| 20 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 20 |
710-0520 |
Screw, Hex Cap, 3/8-16 X 1.5 Lg GR5 Price: $3.93 |
| 21 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 21 |
92-5804-01 |
PEDAL-BRAKE, LH This part replaces 92-5804. Price: $97.16 |
| 22 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 22 |
703-0196 |
BRACKET-CAM PIVOT Not Available Price: |
| 23 |
716-0865 |
Ring, Snap, .500 Price: $3.86 |
| 23 |
92-5805 |
PEDAL-BRAKE, RH Price: $133.73 |
| 24 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 7360272. Price: $4.37 |
| 24 |
92-2586-01 |
LEVER-BRAKE This part replaces 92-2586. Price: $75.15 |
| 25 |
32121-25 |
PIN-ROLL Price: $0.61 |
| 25 |
903-0194 |
DAMPER PLATE ASSEMBLY Not Available This part replaces 703-0194. Price: |
| 26 |
916-0115 |
SNAP RING FOR .625 DIA SHAFT Not Available This part replaces 716-0115. Price: |
| 26 |
92-5806-01 |
SHAFT-BRAKE This part replaces 92-5806. Price: $107.68 |
| 27 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 27 |
711-3033 |
Pin, Spring Guide Price: $13.56 |
| 28 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 28 |
932-3012 |
COMPRESSION SPRING This part replaces 732-3012. Price: $6.10 |
| 29 |
323-12 |
SCREW-HH Price: $1.14 |
| 30 |
76-9030 |
BRAKE SUPPORT ASM Price: $116.55 |
| 31 |
322-21 |
SCREW-HH Price: $4.29 |
| 32 |
66-1140 |
HUB-ADJUSTMENT Price: $15.52 |
| 33 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 34 |
63-8410 |
WASHER Price: $1.76 |
| 35 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 36 |
32128-20 |
NUT-HF Price: $0.99 |
| 37 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 38 |
74-6110 |
STOP-TRACTION Price: $21.73 |
| 39 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 40 |
3218-2 |
NUT-JAM Price: $0.25 |
| 41 |
322-4 |
SCREW-HH Price: $0.35 |
| 42 |
84-1470 |
DECAL-SAFETY Price: $43.53 |
| 43 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 44 |
92-1370 |
DECAL-WARNING Price: $16.76 |
