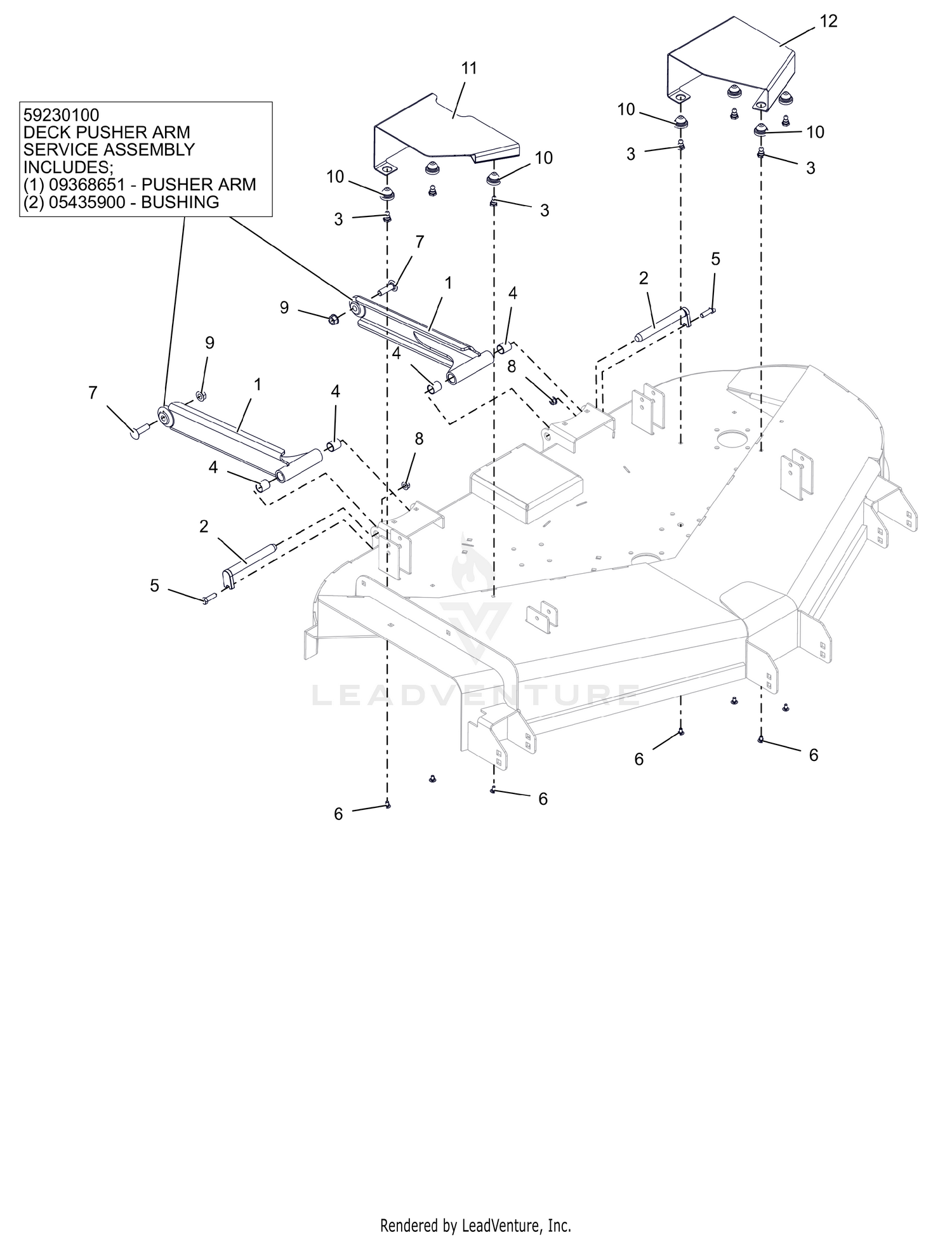

| Ref | Part Number | Description |
|---|
| 1 |
09368651 |
WLDMT, DECK STABILIZER ARM (BLACK) Price: $91.95 |
| 2 |
05157900 |
PIN, MOWER MTG Price: $16.95 |
| 3 |
05275900 |
STUD, BALL FEMALE .250-20 THREAD Price: $8.45 |
| 4 |
05435900 |
BRG, .750 X .875 X 1.000 Price: $5.95 |
| 5 |
05901724 |
BLT- HEX .38-16X1.25 G5 ZCC Price: $1.45 |
| 6 |
06200305 |
BLT, RHSSN.25-20X.500 G5 ZCC Price: $1.45 |
| 7 |
06200439 |
BTL,RHSSN .500-13 X 1.75 G5 ZCC Price: $6.45 |
| 8 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 9 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC Price: $0.95 |
| 10 |
07500429 |
COUPLING, RUBBER PUSH-IN Price: $1.95 |
| 11 |
05287453 |
COVER, RH BELT - TUNNEL DECK (RED) Price: $50.95 |
