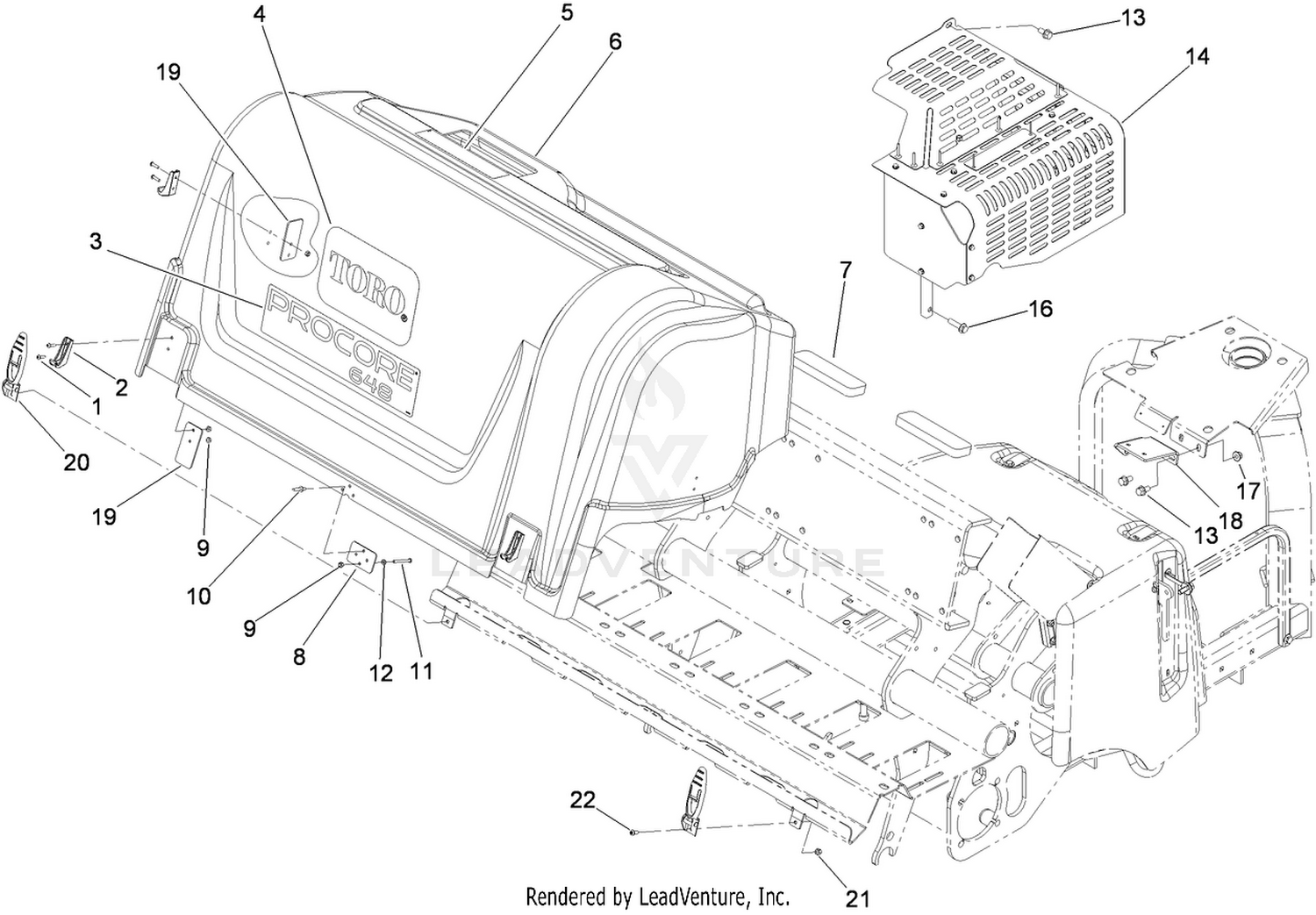

Rear Hood and Muffler Shield Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-2408 | SCREW-HSBH Price: $2.19 |
| 2 | 103-2897 | LATCH-CATCH Price: $7.99 |
| 3 | 106-8852 | DECAL Price: $32.98 |
| 4 | 67-7310 | DECAL Price: $53.20 |
| 5 | 106-8856 | DECAL-DEPTH, TINE Price: $6.60 |
| 6 | 110-1494 | HOOD-REAR Price: $725.62 |
| 7 | 107-7507 | PAD-FOAM Price: $6.15 |
| 8 | 107-7508 | PLATE-BACKUP Price: $7.48 |
| 9 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 10 | 3269-22 | RIVET-POP Price: $0.61 |
| 11 | 32105-20 | SCREW-HH Price: $1.39 |
| 12 | 3217-26 | NUT-HEX Price: $0.25 |
| 13 | 3234-1 | SCREW-HHF Price: $1.62 |
| 14 | 107-7546 | SHIELD ASM Price: $612.72 |
| 16 | 3234-18 | SCREW-HHF Price: $0.87 |
| 17 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 18 | 115-4734 | CANISTER BRACKET ASM Price: $84.91 |
| 19 | 110-1499 | PLATE-REINFORCEMENT Price: $7.48 |
| 20 | 103-2898 | LATCH-RUBBER Price: $32.99 |
| 21 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
