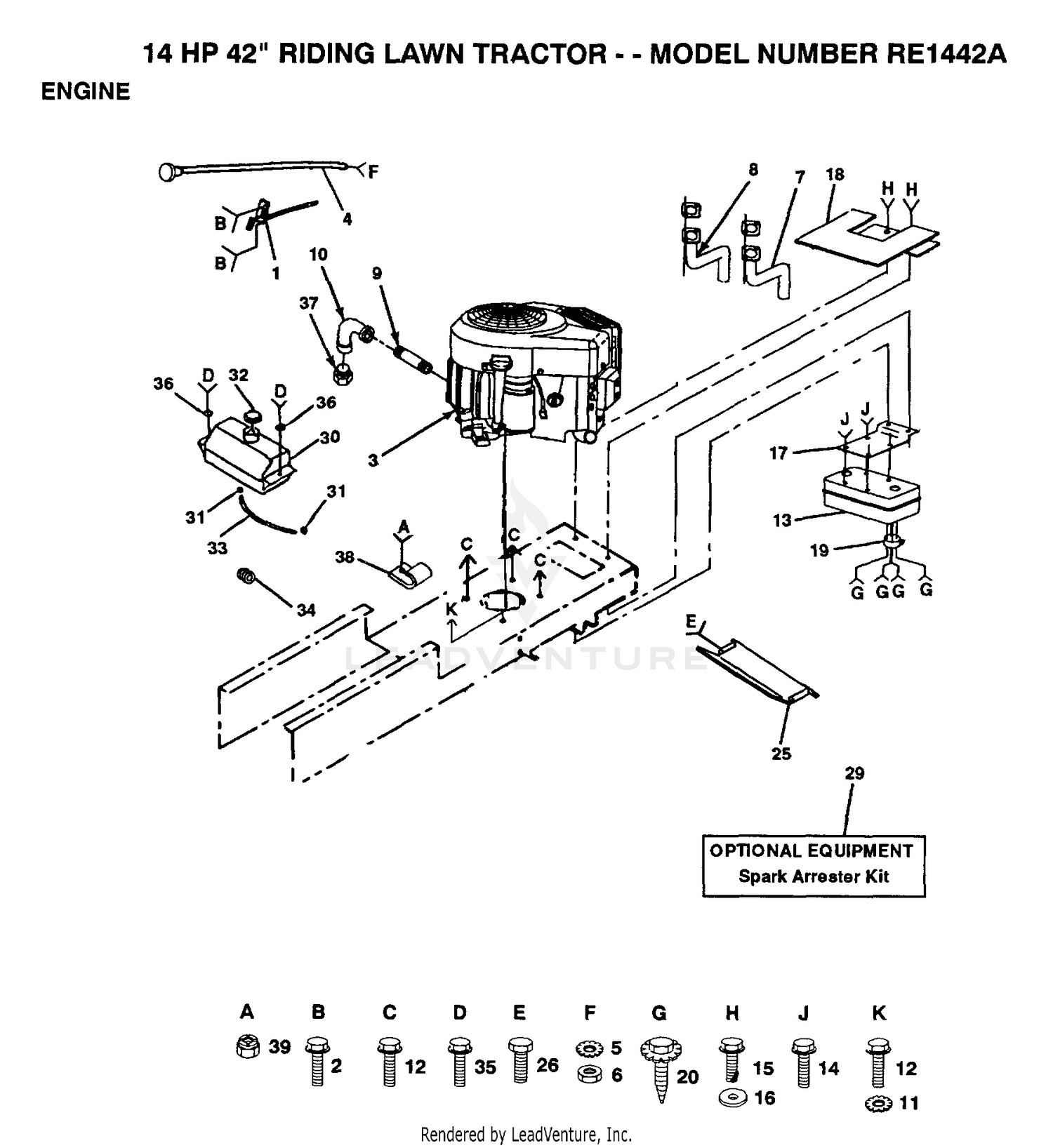

| Ref | Part Number | Description |
|---|
| 1 |
132775 |
SUB= 132756 Price: Call Us |
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 3 |
131958 |
ENGINE Price: Call Us |
| 3 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 4 |
132777 |
SUB= 532132780 Price: Call Us |
| 4 |
321-3 |
SCREW-HH Price: $0.28 |
| 5 |
11050600 |
LOCKWASHER Price: Call Us |
| 5 |
256-273 |
BUSHING-FLANGE Price: $4.55 |
| 6 |
43-6320 |
COLLAR Price: $24.71 |
| 6 |
73610600 |
SUB= 7810H Price: Call Us |
| 7 |
122434X |
TUBE ASSY EXH LH Price: Call Us |
| 7 |
71-0440 |
ABRASIVE-PEDAL Price: $15.80 |
| 8 |
122435X |
TUBE ASSY EXH RH Price: Call Us |
| 8 |
69-9390 |
SHAFT-PEDAL Price: $71.62 |
| 9 |
13280336 |
PIPE NIPPLE LT Price: Call Us |
| 9 |
71-0450 |
ABRASIVE-PEDAL, REAR Price: $10.39 |
| 10 |
13200300 |
ELBOW Price: Call Us |
| 10 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 11 |
11050600 |
LOCKWASHER Price: Call Us |
| 11 |
32128-20 |
NUT-HF Price: $0.99 |
| 12 |
17490620 |
SCREW Price: Call Us |
| 12 |
3217-7 |
NUT-HEX Price: $0.28 |
| 13 |
122440X |
SUB= 149723 Price: Call Us |
| 13 |
69-9030 |
POST-DEVICE, NEUTRAL Price: $39.15 |
| 14 |
17190408 |
SCREW ST Price: Call Us |
| 14 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 15 |
17490512 |
SCREW Price: Call Us |
| 15 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 16 |
19131614 |
WASHER Price: Call Us |
| 16 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 17 |
107-1179-03 |
CONTROL-ROD Price: $189.90 |
| 17 |
122439X |
BRACKET MUFFLER Price: Call Us |
| 18 |
128199 |
SUB= 145552 Price: Call Us |
| 18 |
3220-5 |
NUT-JAM This part replaces 3220-5-01. Price: $0.65 |
| 19 |
101326L |
DEFLECTOR.222573 Price: Call Us |
| 19 |
21-0141 |
RH BALL JOINT ASM This part replaces 21-0141-03. Price: $109.12 |
| 20 |
17030808 |
SUB= 17030814 Price: Call Us |
| 20 |
3220-3 |
NUT-HJ Price: $0.28 |
| 21 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 22 |
99-5347-03 |
TRACTION PEDAL ASM Price: $219.38 |
| 23 |
3245-32 |
SCREW-HSH Price: $3.59 |
| 24 |
99-5348 |
PLATE-CLUTCH Price: $61.10 |
| 25 |
128953 |
HEAT SHIELD Price: Call Us |
| 25 |
43-6200 |
SPRING-COMPRESSION Price: $20.42 |
| 26 |
100-8016 |
FIELD CORE COIL ASM Price: $165.29 |
| 26 |
17021008 |
SCREW Price: Call Us |
| 27 |
92-9701 |
SHAFT-CRUISE Price: $101.17 |
| 29 |
123110X |
SPARK ARREST KIT Price: Call Us |
| 30 |
109202X |
TANK.FUEL.LT. Price: Call Us |
| 31 |
123487X |
HOSE CLAMP Price: Call Us |
| 32 |
123549X |
SUB= 158990 Price: Call Us |
| 33 |
8548R |
FUEL LINE T Price: Call Us |
| 34 |
124028X |
SUB= 532124028 Price: Call Us |
| 35 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 36 |
19091416 |
WASHER Price: Call Us |
| 38 |
2751R |
CLIP T Price: Call Us |
