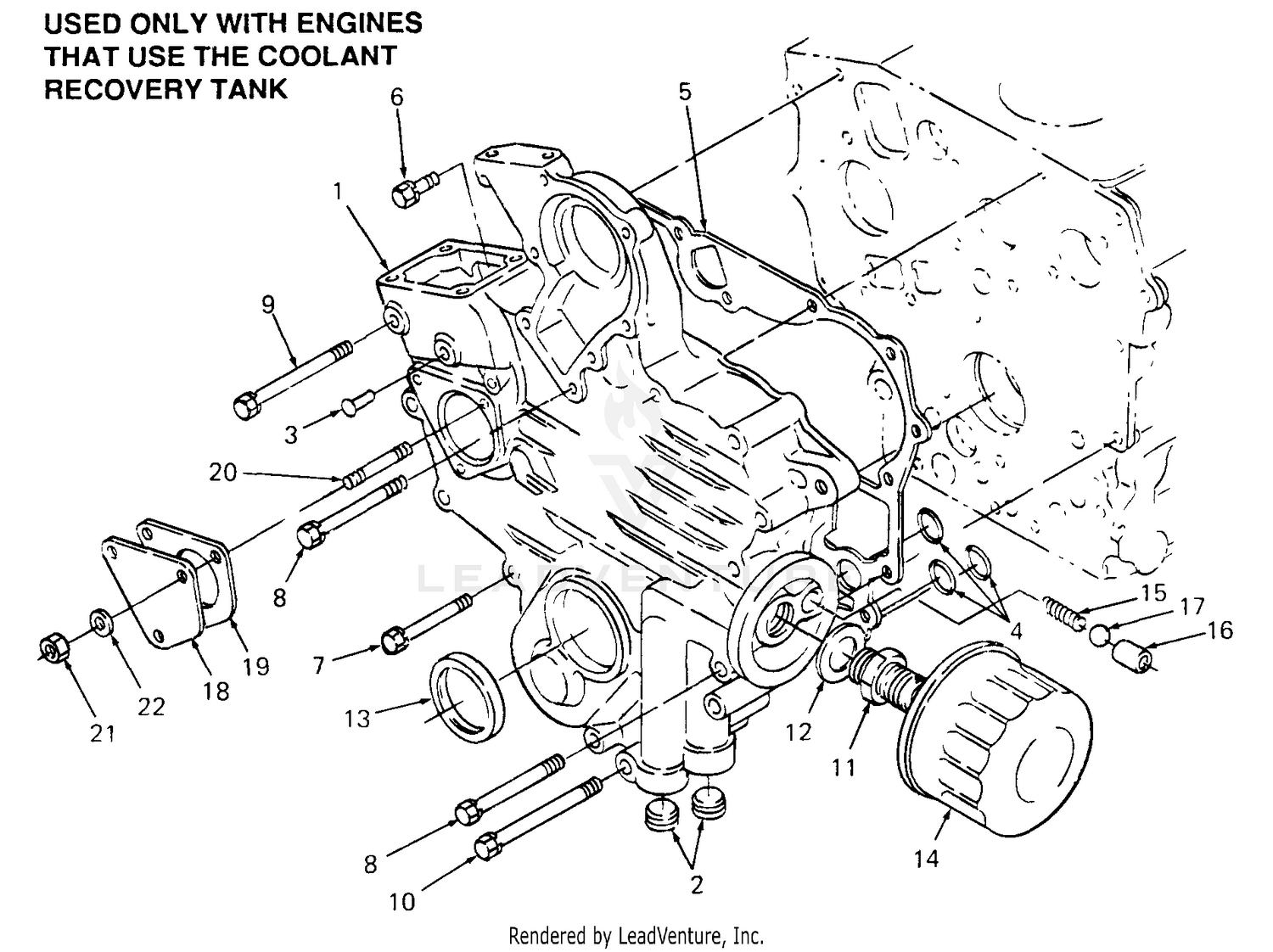

Gear Case II
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 60-9760 | NUT Price: $6.11 |
| 1 | KB-16875-04024 | Case Assy, Gear [Includes Ref No. 2 (Qty 2) & 3] Price: Call Us |
| 2 | 100-6586 | CYLINDER-HYD, 2.5 INCH This part replaces 60-9780. Price: $858.08 |
| 2 | KB-16851-96010 | PLUG Not Available Price: |
| 3 | 60-9770 | DISCONTINUED Price: Call Us |
| 3 | KB-15841-56280 | PIN Not Available Price: |
| 4 | KB-04811-06130 | O-RING Not Available Price: |
| 5 | KB-15862-04132 | GASKET Not Available This part replaces KB-15862-04130. Price: |
| 6 | KB-01023-50618 | BOLT-HEX HD Not Available Price: |
| 7 | KB-01023-50650 | BOLT Not Available Price: |
| 8 | KB-15841-91010 | BOLT Not Available Price: |
| 9 | 61-4990 | RING-RETAINING Price: $21.65 |
| 9 | KB-01023-50670 | BOLT Not Available Price: |
| 10 | KB-01023-50675 | BOLT Not Available Price: |
| 11 | 61-4980 | SHAFT WITH CLEVIS Price: $325.61 |
| 11 | KB-15241-32290 | JOINT Not Available Price: |
| 12 | KB-15841-94010 | WASHER Not Available Price: |
| 13 | 61-4960 | SEAL KIT Price: $169.43 |
| 13 | KB-15877-04140 | OIL SEAL Not Available Price: |
| 14 | KB-HH150-32430 | FILTER-OIL Not Available This part replaces KB-70000-15241. Price: |
| 15 | KB-16851-36950 | SPRING Not Available Price: |
| 16 | KB-15841-36930 | VALVE SEAT Not Available Price: |
| 17 | KB-07715-03211 | BALL Not Available Price: |
| 18 | KB-19461-83340 | COVER Not Available Price: |
| 19 | KB-19461-88130 | GASKET Not Available Price: |
| 20 | KB-15221-88210 | STUD Not Available Price: |
| 21 | KB-02056-50060 | NUT Not Available Price: |
| 503263019 | 503263019 | O-RING Price: $4.99 |
| 503729172 | 503748706 | CRANKSHAFT ASSY This part replaces 503729172. Price: $179.99 |
| 503733901 | 577572401 | NEEDLE BEARING PISTON PIN 12X1 This part replaces 503733901. Price: $11.99 |
| 503779101 | 503779101 | SLEEVE Price: $9.99 |
| 738220225 | 738220225 | BALL BEARING-6202-C3 SKF Price: $19.99 |
