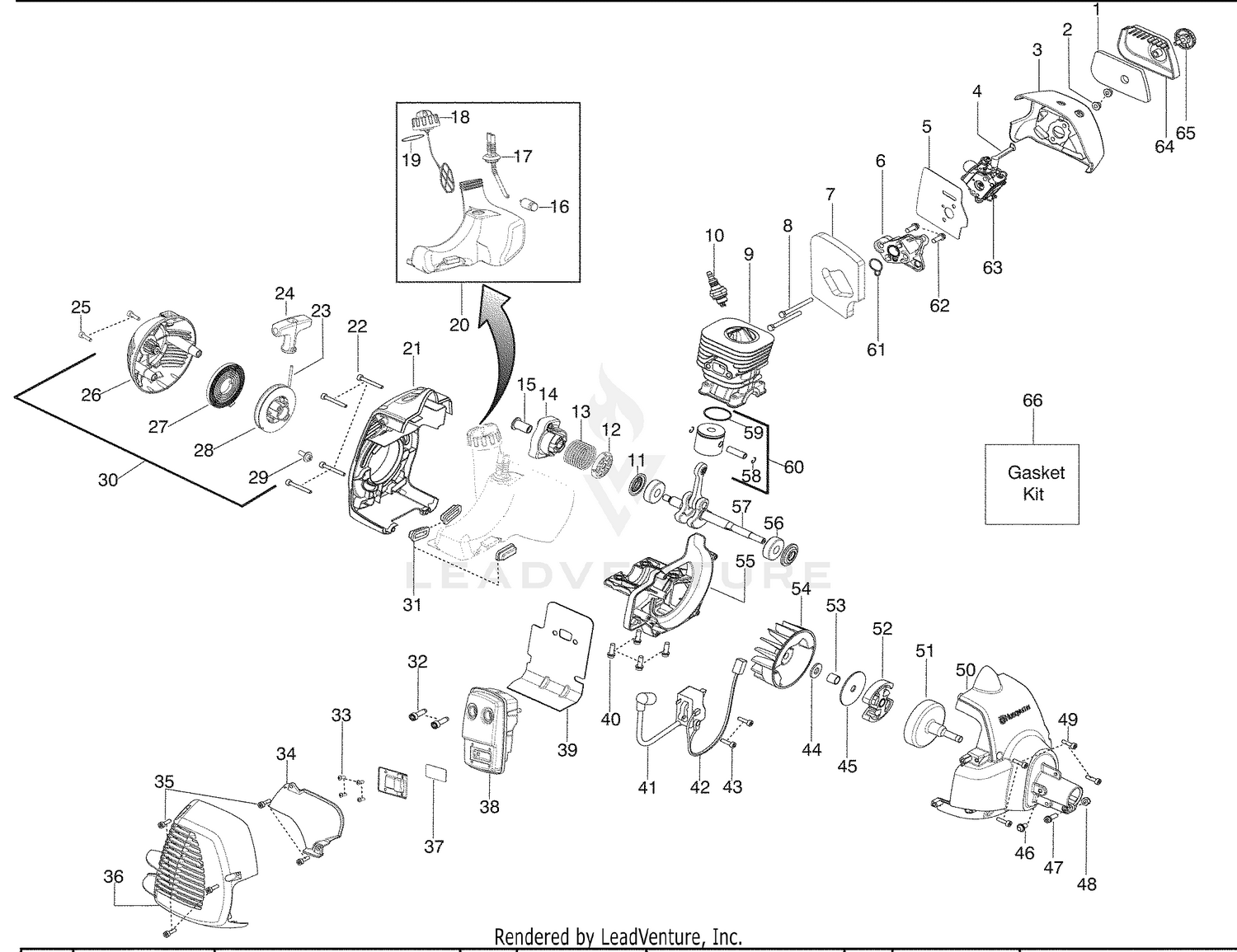

| Ref | Part Number | Description |
|---|
| 1 |
530150253 |
FILTER AIRBOX Price: $2.99 |
| 2 |
530016101 |
NUT Price: $4.99 |
| 4 |
530057844 |
CHOKE LEVER Price: $5.99 |
| 6 |
530035596 |
CARB ADAPTOR Price: $7.99 |
| 8 |
530016400 |
BOLT CARB ADAPTOR Price: $3.99 |
| 9 |
545003378 |
KIT CYL PISTON & CRANKCASE This part replaces 545001001. Price: $27.99 |
| 10 |
503235112 |
BPMR6A NGK SPARK PLUG This part replaces 952030201. Price: $8.99 |
| 11 |
545050403 |
KIT SEAL CRANKSHAFT Price: $7.99 |
| 12 |
530016475 |
WASHER STARTER Price: $5.99 |
| 13 |
545160301 |
SPRING STARTER CUP Price: $4.99 |
| 14 |
545102303 |
ASSY STARTER CUP Price: $14.99 |
| 15 |
545180844 |
KIT STARTER This part replaces 530059800. Price: $19.99 |
| 16 |
530095646 |
FUEL PICK-UP ASSY Price: $5.99 |
| 17 |
545081897 |
KIT FUEL LINE Price: $14.99 |
| 21 |
576153201 |
REAR SHROUD ORANGE This part replaces 530057851. Price: $11.99 |
| 22 |
530016448 |
SCREW Price: $2.99 |
| 23 |
545029901 |
KIT ROPE Price: $6.99 |
| 24 |
530150318 |
STARTER HANDLE GRAY Price: $4.99 |
| 26 |
545029603 |
STARTER HOUSING Price: $14.99 |
| 27 |
545008015 |
SPRING STARTER This part replaces 545029801. Price: $6.99 |
| 28 |
545029701 |
KIT STARTER PULLEY Price: $14.99 |
| 29 |
530016468 |
SCREW Price: $2.99 |
| 31 |
530059780 |
ISOLATOR FUEL TANK Price: $4.99 |
| 32 |
530058982 |
BOLT MUFFLER Price: $2.99 |
| 33 |
530015496 |
SCREW-10-16 X 1/2 HI-LO Price: $2.99 |
| 34 |
530150440 |
SHIELD HEAT Price: $5.99 |
| 35 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 36 |
576215001 |
KIT MUFFLER GUARD HVA This part replaces 545104901. Price: $12.99 |
| 38 |
574031502 |
KIT MUFFLER W/CATALYST This part replaces 545057501. Price: $34.99 |
| 40 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $2.99 |
| 41 |
545046701 |
IGNITION MODULE MBU-7 Price: $49.99 |
| 42 |
530039227 |
ASSY MODULE LEAD WIRE Price: $6.99 |
| 43 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $2.99 |
| 44 |
530016463 |
WASHER CLUTCH Price: $5.99 |
| 45 |
530094189 |
WASHER-CLUTCH Price: $5.99 |
| 46 |
530016469 |
SCREW Price: $3.99 |
| 47 |
530016470 |
SCREW Price: $3.99 |
| 48 |
530015768 |
LOCKNUT-HEX 10-24 Price: $3.99 |
| 49 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $2.99 |
| 50 |
545017501 |
FAN HSG ASSY Price: $17.99 |
| 52 |
525472901 |
KIT CLUTCH ASSY This part replaces 545050405. Price: $10.99 |
| 53 |
530057852 |
SPACER FLYWHEEL Price: $8.99 |
| 54 |
530039242 |
FLYWHEEL Price: $29.99 |
| 56 |
545013401 |
BEARING RADIAL BALL (6201) Price: $5.99 |
| 57 |
545030001 |
KIT CRANKSHAFT ASSY Price: $49.99 |
| 58 |
530015162 |
WRIST PIN RET. Price: $2.99 |
| 59 |
575227901 |
RING PISTON This part replaces 530019283. Price: $5.99 |
| 62 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $2.99 |
| 64 |
530057846 |
COVER-AIR BOX Price: $7.99 |
| 65 |
530059796 |
KNOB ASSY AIRBOX COVER Price: $4.99 |
